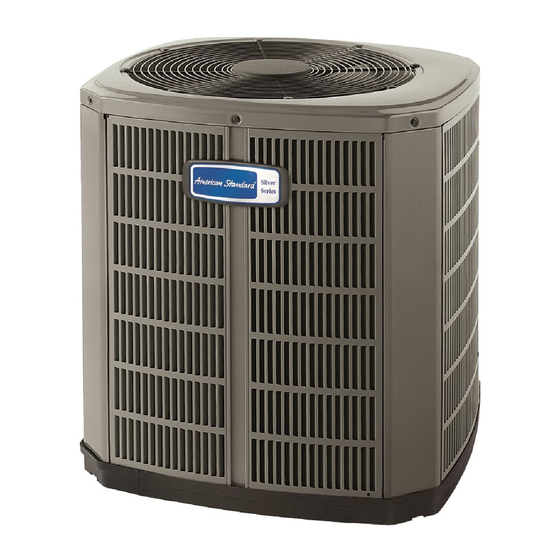

American Standard 4A7A4018C Installer's Manual

American Standard 4A7A4018C Installer's Manual

Advertisement

ALL phases of this installation must comply with NATIONAL, STATE AND LOCAL CODES
IMPORTANT — This Document is customer property and is to remain with this unit. Please return to service information pack
upon completion of work.
These instructions do not cover all variations in systems
nor provide for every possible contingency to be met in
connection with installation. All phases of this installa-
tion must comply with NATIONAL, STATE AND LOCAL
CODES.
Should further information be desired or should
particular problems arise which are not covered sufficiently for
the purchaser's purposes, the matter should be referred to your
installing dealer or local distributor.

A. GENERAL

The following instructions cover 4A7A4 Condensing Units.
NOTICE: These outdoor units may be used with indoor units
equipped with Thermostatic Expansion Valve or Accutron™
Flow Control Check Valve (F.C.C.V.) assembly for refriger-
ant flow control only.
WARNING:
ant which operates at 50 to 70% higher pressures than R-22.
Use only R-410A approved service equipment. Refrigerant
cylinders are painted a "Rose" color to indicate the type of
refrigerant and may contain a "dip" tube to allow for charging
of liquid refrigerant into the system. All R-410A systems use
a POE oil that readily absorbs moisture from the atmosphere.
To limit this "hygroscopic" action, the system should remain
sealed whenever possible. Never break a vacuum with air
and always change the driers when opening the system for
component replacement.
Check for transportation damage after unit is uncrated. Report
promptly, to the carrier, any damage found to the unit.
To determine the electrical power requirements of the unit, refer
to the nameplate of the unit. The electrical power available must
agree with that listed on the nameplate.
B. LOCATION & PREPARATION OF THE UNIT
1. When removing unit from the pallet, notice the tabs on the
basepan. Remove tabs by cutting with a sharp tool as shown in
Figure 2 (see page 2).
2. The unit should be set on a level support pad at least as large
as the unit base pan, such as a concrete slab. If this is not the
application used please refer to application bulletin
"ALG-APG**-EN" (* denotes latest revision).
3. The support pad must NOT be in direct contact with any
structure. Unit must be positioned a minimum of 12" from any
wall or surrounding shrubbery to insure adequate airflow. Clear-
© 2009 American Standard Heating & Air Conditioning
Condensing Units
Models:
4A7A4
These units use R-410A refriger-
!
UNIT CONTAINS R-410A REFRIGERANT!
R-410A OPERATING PRESSURE EXCEEDS THE
LIMIT OF R-22. PROPER SERVICE EQUIPMENT IS
REQUIRED. FAILURE TO USE PROPER SERVICE
TOOLS MAY RESULT IN EQUIPMENT DAMAGE OR
PERSONAL INJURY.
SERVICE
USE ONLY R-410A REFRIGERANT AND
APPROVED POE COMPRESSOR OIL.
1
TOP DISCHARGE — UNRESTRICTED
5 FT. ABOVE UNIT
Since the manufacturer has a policy of continuous product
and product data improvement, it reserves the right to
change design and specifications without notice.
11-AC11D1-4
CAUTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4A7A4018C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for American Standard 4A7A4018C

  • Page 1 Clear- Since the manufacturer has a policy of continuous product and product data improvement, it reserves the right to © 2009 American Standard Heating & Air Conditioning change design and specifications without notice.
  • Page 2 INSTALLER'S GUIDE C. ACCUTRON™ FLOW CONTROL VALVE BASEPAN TAB REMOVAL If the indoor unit System Refrigerant Flow control is an Accutron™ orifice and check valve assembly, an orifice size change may be necessary. The outdoor model determines the required orifice size. Check the listed orifice size on nameplate of the selected outdoor model.
  • Page 3 INSTALLER'S GUIDE BRASS GAS LINE SERVICE VALVE GAS LINE SERVICE VALVE The Brass Gas Line Service Valve is shipped in the closed position to hold the factory refrigerant charge. The pressure tap 1/4 TURN ONLY service port (when depressed) opens only to the field brazing side COUNTERCLOCKWISE FOR FULL OPEN when the valve is in the closed position.
  • Page 4 INSTALLER'S GUIDE 5. Close off valve to vacuum pump and observe the micron gauge. Table 1 — NEC Class II Control Wiring If gauge pressure rises above 500 microns in one (1) minute, then evacuation is incomplete or system has a leak. 24 VOLTS 6.
  • Page 5 INSTALLER'S GUIDE TYPICAL FIELD WIRING DIAGRAMS PRINTED FROM B152901 P02 PRINTED FROM B152908 P02 NOTE NOTE PRINTED FROM B152907 P03 PRINTED FROM B152903 P02 W2 present only on 2 stage W2 present only on 2 stage thermostat and furnace thermostat and furnace Notes: 1.
  • Page 6 INSTALLER'S GUIDE 4A7A4 OUTLINE DRAWING NOTE: ALL DIMENSIONS ARE IN MM (INCHES). MODELS BASE FIG. 4A7A4018C 832 (32-3/4) 829 (32-5/8) 756 (29-3/4) 143 (5-5/8) 92 (3-5/8) 210 (8-1/4) 79 (3-1/8) 508 (20) 4A7A4024C 832 (32-3/4) 829 (32-5/8) 756 (29-3/4) 5/8 5/16...
  • Page 7 INSTALLER'S GUIDE MOUNTING HOLE LOCATION NOTE: ALL DIMENSIONS ARE IN MM (INCHES). NOTE: For model base size, see table on page 6. From Dwg. D152637 Rev. 2 Pub. No. 11-AC11D1-4 PAGE 7...
  • Page 8 2 Check only necessary if heating unit is used for indoor section and wiring has been disturbed during installation of cooling equipment. 3 When applicable. Technical Literature - Printed in U.S.A. American Standard Heating & Air Conditioning Troup Highway Tyler, TX 75707-9010 PAGE 8 Pub.
