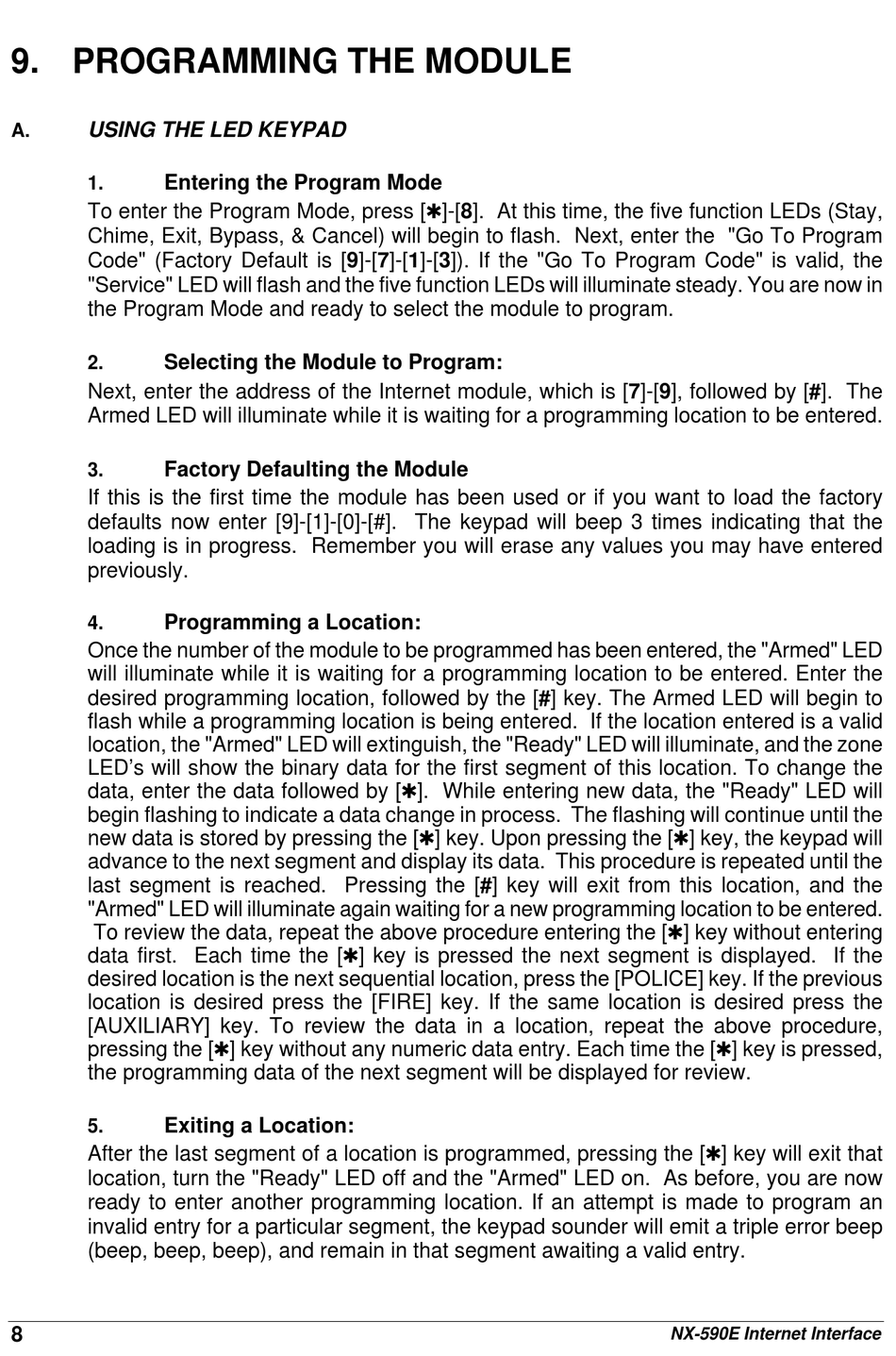

9. PROGRAMMING THE MODULE

USING THE LED KEYPAD

A.

Entering the Program Mode

1.
To enter the Program Mode, press [r]-[8]. At this time, the five function LEDs (Stay,
Chime, Exit, Bypass, & Cancel) will begin to flash. Next, enter the "Go To Program
Code" (Factory Default is [9]-[7]-[1]-[3]). If the "Go To Program Code" is valid, the
"Service" LED will flash and the five function LEDs will illuminate steady. You are now in
the Program Mode and ready to select the module to program.

Selecting the Module to Program:

2.
Next, enter the address of the Internet module, which is [7]-[9], followed by [#]. The
Armed LED will illuminate while it is waiting for a programming location to be entered.

Factory Defaulting the Module

3.
If this is the first time the module has been used or if you want to load the factory
defaults now enter [9]-[1]-[0]-[#]. The keypad will beep 3 times indicating that the
loading is in progress. Remember you will erase any values you may have entered
previously.

Programming a Location:

4.
Once the number of the module to be programmed has been entered, the "Armed" LED
will illuminate while it is waiting for a programming location to be entered. Enter the
desired programming location, followed by the [#] key. The Armed LED will begin to
flash while a programming location is being entered. If the location entered is a valid
location, the "Armed" LED will extinguish, the "Ready" LED will illuminate, and the zone
LED's will show the binary data for the first segment of this location. To change the
data, enter the data followed by [r]. While entering new data, the "Ready" LED will
begin flashing to indicate a data change in process. The flashing will continue until the
new data is stored by pressing the [r] key. Upon pressing the [r] key, the keypad will
advance to the next segment and display its data. This procedure is repeated until the
last segment is reached. Pressing the [#] key will exit from this location, and the
"Armed" LED will illuminate again waiting for a new programming location to be entered.
To review the data, repeat the above procedure entering the [r] key without entering
data first. Each time the [r] key is pressed the next segment is displayed. If the
desired location is the next sequential location, press the [POLICE] key. If the previous
location is desired press the [FIRE] key. If the same location is desired press the
[AUXILIARY] key. To review the data in a location, repeat the above procedure,
pressing the [r] key without any numeric data entry. Each time the [r] key is pressed,
the programming data of the next segment will be displayed for review.

Exiting a Location:

5.
After the last segment of a location is programmed, pressing the [r] key will exit that
location, turn the "Ready" LED off and the "Armed" LED on. As before, you are now
ready to enter another programming location. If an attempt is made to program an
invalid entry for a particular segment, the keypad sounder will emit a triple error beep
(beep, beep, beep), and remain in that segment awaiting a valid entry.
8
NX-590E Internet Interface
