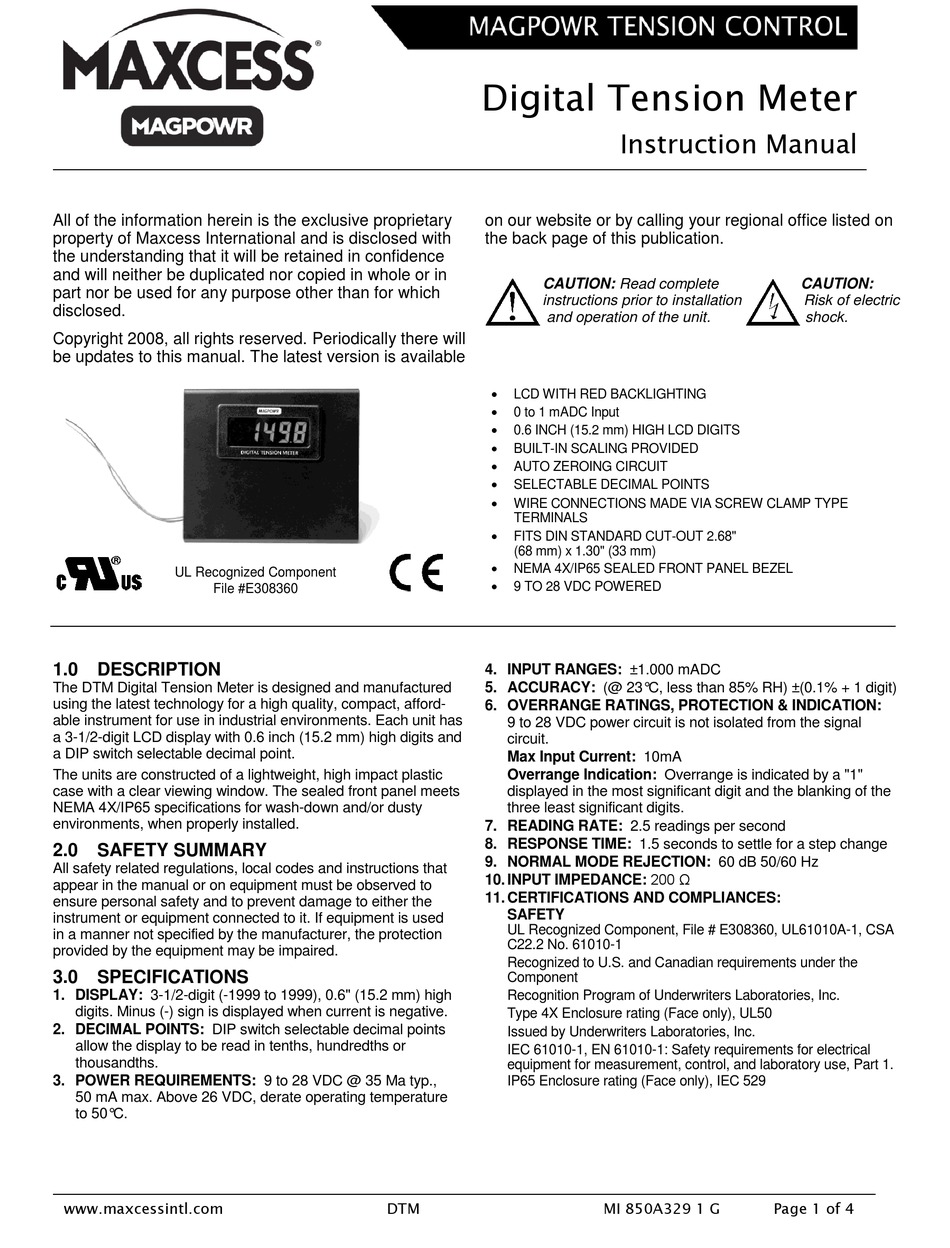

Maxcess MAGPOWR DTM Instruction Manual

All of the information herein is the exclusive proprietary
property of Maxcess International and is disclosed with
the understanding that it will be retained in confidence
and will neither be duplicated nor copied in whole or in
part nor be used for any purpose other than for which
disclosed.
Copyright 2008, all rights reserved. Periodically there will
be updates to this manual. The latest version is available
UL Recognized Component
File #E308360
1.0 DESCRIPTION
The DTM Digital Tension Meter is designed and manufactured
using the latest technology for a high quality, compact, afford-
able instrument for use in industrial environments. Each unit has
a 3-1/2-digit LCD display with 0.6 inch (15.2 mm) high digits and
a DIP switch selectable decimal point.
The units are constructed of a lightweight, high impact plastic
case with a clear viewing window. The sealed front panel meets
NEMA 4X/IP65 specifications for wash-down and/or dusty
environments, when properly installed.
2.0 SAFETY SUMMARY
All safety related regulations, local codes and instructions that
appear in the manual or on equipment must be observed to
ensure personal safety and to prevent damage to either the
instrument or equipment connected to it. If equipment is used
in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
3.0 SPECIFICATIONS
1. DISPLAY: 3-1/2-digit (-1999 to 1999), 0.6" (15.2 mm) high
digits. Minus (-) sign is displayed when current is negative.
2. DECIMAL POINTS: DIP switch selectable decimal points
allow the display to be read in tenths, hundredths or
thousandths.
3. POWER REQUIREMENTS: 9 to 28 VDC @ 35 Ma typ.,
50 mA max. Above 26 VDC, derate operating temperature
to 50°C.
www.maxcessintl.com
Digital Tension Meter
on our website or by calling your regional office listed on
the back page of this publication.
CAUTION: Read complete
instructions prior to installation
and operation of the unit.

LCD WITH RED BACKLIGHTING

0 to 1 mADC Input

0.6 INCH (15.2 mm) HIGH LCD DIGITS

BUILT-IN SCALING PROVIDED

AUTO ZEROING CIRCUIT

SELECTABLE DECIMAL POINTS

WIRE CONNECTIONS MADE VIA SCREW CLAMP TYPE
TERMINALS

FITS DIN STANDARD CUT-OUT 2.68"
(68 mm) x 1.30" (33 mm)

NEMA 4X/IP65 SEALED FRONT PANEL BEZEL

9 TO 28 VDC POWERED
4. INPUT RANGES: ±1.000 mADC
5. ACCURACY: (@ 23°C, less than 85% RH) ±(0.1% + 1 digit)
6. OVERRANGE RATINGS, PROTECTION & INDICATION:
9 to 28 VDC power circuit is not isolated from the signal
circuit.
Max Input Current: 10mA
Overrange Indication: Overrange is indicated by a "1"
displayed in the most significant digit and the blanking of the
three least significant digits.
7. READING RATE: 2.5 readings per second
8. RESPONSE TIME: 1.5 seconds to settle for a step change
9. NORMAL MODE REJECTION: 60 dB 50/60 Hz
10. INPUT IMPEDANCE: 200 Ω
11. CERTIFICATIONS AND COMPLIANCES:
SAFETY
UL Recognized Component, File # E308360, UL61010A-1, CSA
C22.2 No. 61010-1
Recognized to U.S. and Canadian requirements under the
Component
Recognition Program of Underwriters Laboratories, Inc.
Type 4X Enclosure rating (Face only), UL50
Issued by Underwriters Laboratories, Inc.
IEC 61010-1, EN 61010-1: Safety requirements for electrical
equipment for measurement, control, and laboratory use, Part 1.
IP65 Enclosure rating (Face only), IEC 529
DTM
Instruction Manual
MI 850A329 1 G Page 1 of 4
CAUTION:
Risk of electric
shock.
