MEASURING INSTRUCTION SCREEN V585 – SCREEN V595
The best preparation!
Take the following points into account before you order a screen.
1. How will the screen be installed?
You can choose:
A
Outside mount / Installation on the wall – the box and guides are installed on the wall (see page 2).
B
Inside Mount / Installation between two walls – the box and guides are installed to the window frame
between two walls (see page 3).
C
Combination of A and B – the box is installed on the wall and the guides between two walls (see page 4).
2. How do I measure the correct width of the screen?
3. How do I measure the correct height of the placeable screen?
4. Choose the control side: left or right?
Stand in front of the window frame on the outside. Determine if you want the control the screen on the left or right side.
Important!
Also attentively read the attention points on page 6 and 7 to see if they apply to you.
Subject to misprints, errors and technical modifications.

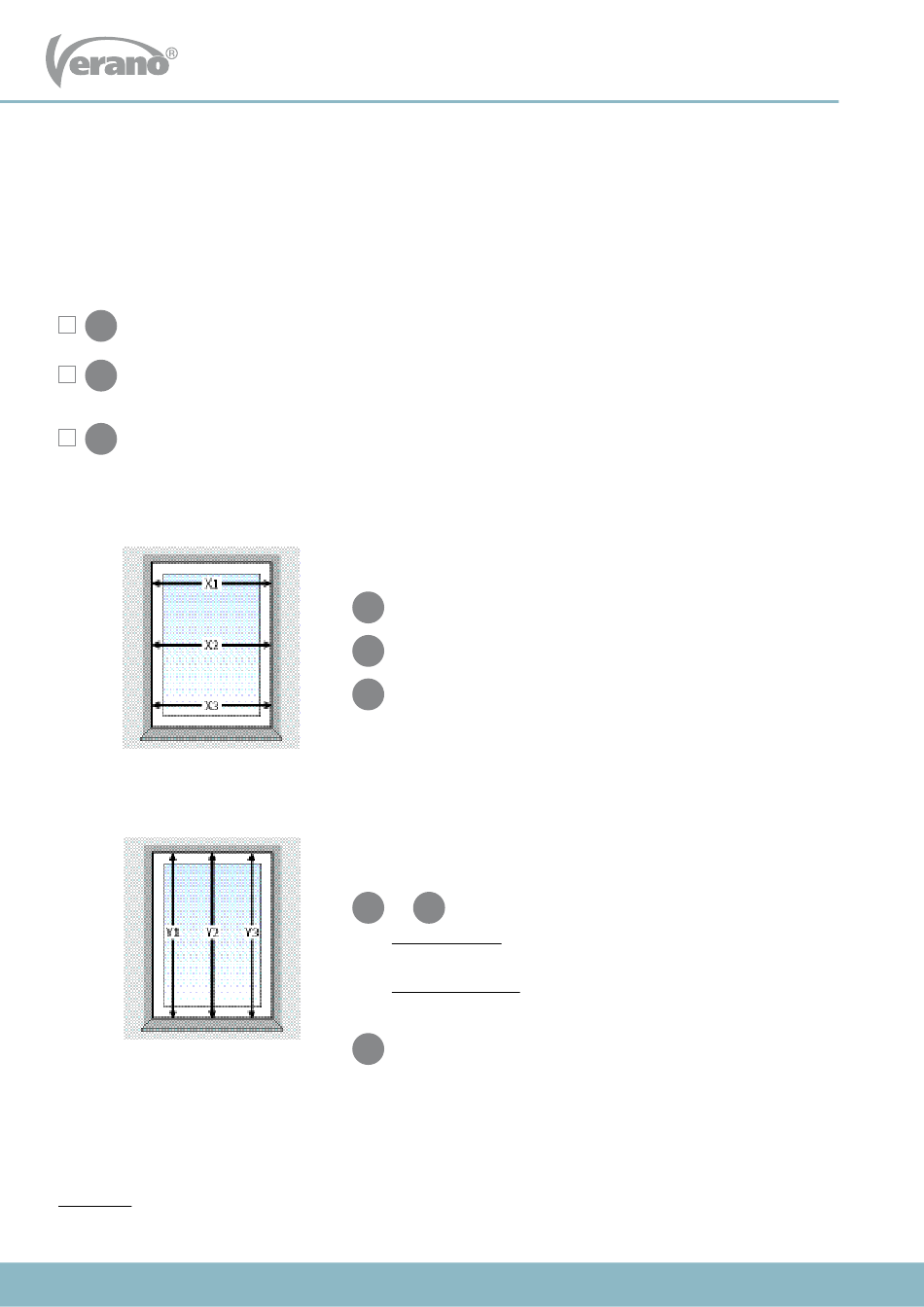

Measure the width (X) between the walls in mm.
To be sure, do this at least at three positions; the wall can be skewed.
A
Order width (W) = the largest measured width (X) + 60 mm
B
Order width (W) = the smallest measured width (X) - 10 mm
C
Order width (W) = the smallest measured width (X) - 5 mm
Measure the height (Y) from top to the bottom of the windowsill in mm.
To be sure, do this at least at three places.
A
C
en
Standard screen:
Order height (H) = the largest measured height (Y) + 85 mm
Standard XL screen:
Order height (H) = the largest measured height (Y) + 95 mm
B
Order height (H) = the smallest measured height (Y) – 5 mm
1
1785-190821EN

Advertisement

loading
Need help?

Need help?

Do you have a question about the SCREEN V585 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Verano SCREEN V585

  • Page 1 MEASURING INSTRUCTION SCREEN V585 – SCREEN V595 The best preparation! Take the following points into account before you order a screen. 1. How will the screen be installed? You can choose: Outside mount / Installation on the wall – the box and guides are installed on the wall (see page 2).
  • Page 2 Take the largest measured height size (Y) of the window frame plus the height of the box (K). Screen V585 -----> Order height (H) = the largest measured height size (Y) + 85 mm Screen V595 -----> Order height (H) = the largest measured height size (Y) + 95 mm Attention! Take patio doors and/or windows into account.
  • Page 3 MEASURING INSTRUCTION SCREEN V585 – SCREEN V595 Inside mount / Installation between two walls W = order width H = order height (total height including box) X = width window frame Y = height window frame K = box height...
  • Page 4 Take the largest measured height size (Y) of the window frame plus the height of the box (K). Screen V585 -----> Order height (H) = the largest measured height size (Y) + 85 mm Screen V595 -----> Order height (H) = the largest measured height size (Y) + 95 mm Attention! Take patio doors and/or windows into account.
  • Page 5 MEASURING INSTRUCTION SCREEN V585 – SCREEN V595 Specifications box (K) Screen V585 Sizes in mm sloped straight Maximum order height = 2100 mm Sectional view box Screen V595 sloped straight Maximum order height = 2800 mm Sectional view box Subject to misprints, errors and technical modifications.
  • Page 6 MEASURING INSTRUCTION SCREEN V585 – SCREEN V595 Specifications guides (G) Sizes in mm HTF + CLICK HTF + CLICK + LIP Sectional view left HTF guide Sectional view left HTF + CLICK guide Sectional view left HTF + CLICK + LIP guide LHTF LHTF + LIP The fabric is extra protected against windblown due to the extra lip on the guide.
  • Page 7 MEASURING INSTRUCTION SCREEN V585 – SCREEN V595 Extra attention points Determine if one of the situations below applies to you. 1. Outward opening windows and/or doors Choose ‘outside mount’ when you have outward opening windows and/or doors. The screen box and the bottom bar are mounted above the window frame, on the wall.
  • Page 8 General warning measuring When you measure the Verano® product yourself, that is for your own risk. You are responsible for measuring the right sizes. Use this instruction only as a help and only for measuring this specific Verano® product.
