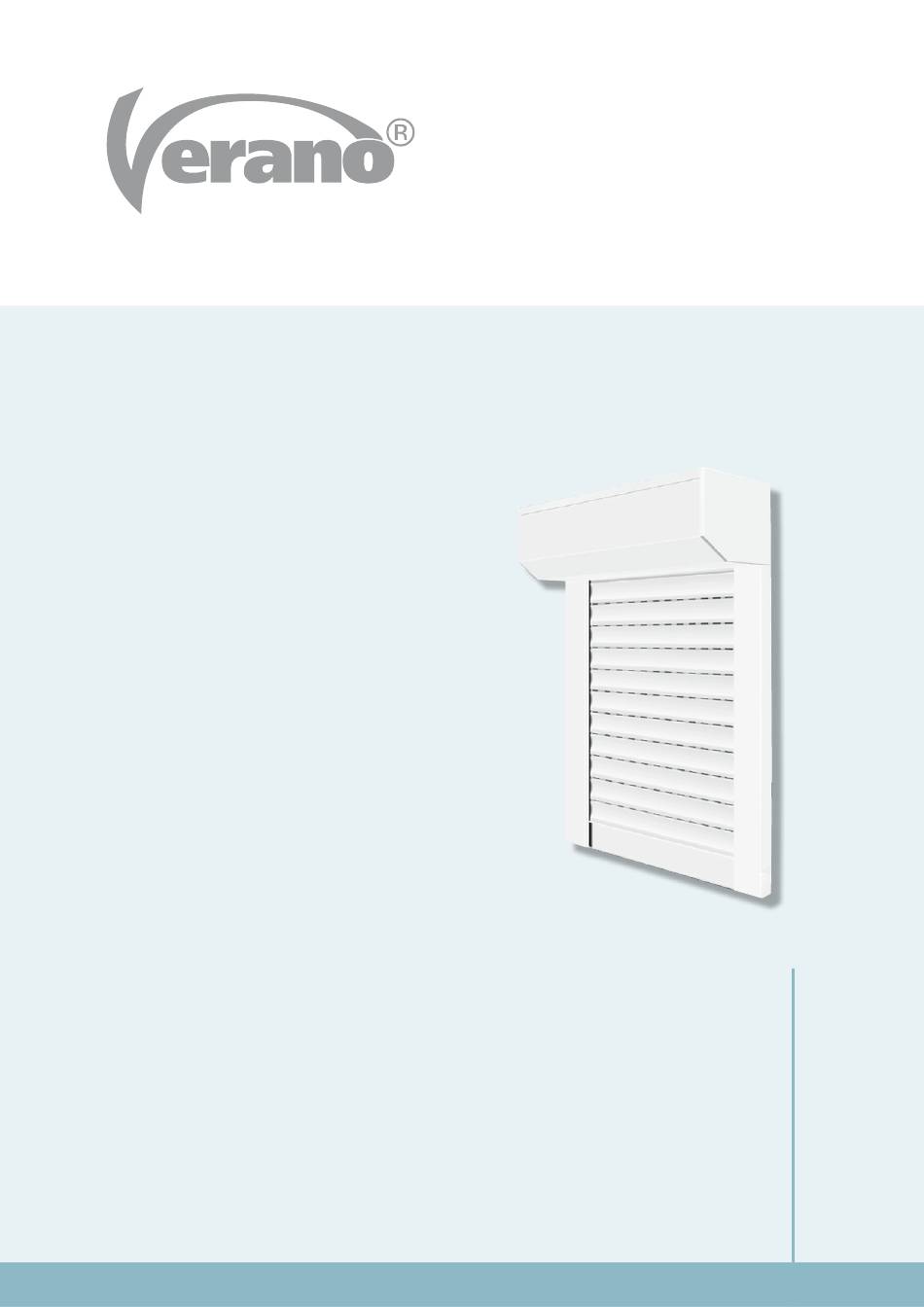

- Page 1 INSTALLATION MANUAL ROLLER SHUTTERS V010 - SPACE, V020 - ELEGANT AND V030 - STEADY...
-
Page 2: Necessary Tools
INSTALLATION MANUAL ROLLER SHUTTERS V010 - SPACE, V020 - ELEGANT AND V030 - STEADY Content Package 1 1. Armor in box 2. Control a. manual control: cord or strap winding mechanism b. electrical control : switch + plug c. remote controlled: remote control + plug Package 2 3. - Page 3 General warning Mounting the Verano® product yourself is at your own risk. Only use this instruction as a tool and for the mounting of this specific Verano® product. If you cannot mount the product yourself, you can always opt for professional mounting.
- Page 4 INSTALLATION MANUAL ROLLER SHUTTERS V010 - SPACE, V020 - ELEGANT AND V030 - STEADY Instruction placing roller shutter (outside) 1.1 Marking the mounting-holes 1. Place the left guide vertical, at the right height, against the façade or the window frame. Attention! The guides have an open and closed side.
- Page 5 INSTALLATION MANUAL ROLLER SHUTTERS V010 - SPACE, V020 - ELEGANT AND V030 - STEADY 1.2 Drilling mounting-holes in the guides Make sure that the holes are drilled precisely 13 mm from the side. Installation on the wall: first drill a hole of 6 mm through both layers of the guide. After that, drill the top hole with a 10 mm drill.
- Page 6 INSTALLATION MANUAL ROLLER SHUTTERS V010 - SPACE, V020 - ELEGANT AND V030 - STEADY 1.5 Mounting the guides 1. Place the guides back in the façade or the window frame. Make sure that the guides are perpendicular and run parallel to the wall.
- Page 7 INSTALLATION MANUAL ROLLER SHUTTERS V010 - SPACE, V020 - ELEGANT AND V030 - STEADY 1.7 Placing the box onto the guides 1. Remove the foil on the back of the box. You can leave the foil on top of the box on. 2.
- Page 8 INSTALLATION MANUAL ROLLER SHUTTERS V010 - SPACE, V020 - ELEGANT AND V030 - STEADY 1.8 Fixating the box to the wall (optional ) Attention! Not possible with Solar roller shutters and when the roller shutter is not engaged, due to a cover plate in the side box that prevents screwing.
- Page 9 INSTALLATION MANUAL ROLLER SHUTTERS V010 - SPACE, V020 - ELEGANT AND V030 - STEADY Installation manual control (inside) 1. Put the pull up band through the pulley on the inside. Make sure that the pull up band is not twisted. 2.
- Page 10 INSTALLATION MANUAL ROLLER SHUTTERS V010 - SPACE, V020 - ELEGANT AND V030 - STEADY 7. Pull the end of the pull up band through the winding mechanism and place it across the small hole so that it is tightened. Caution! You may not shorten the band in an early stage! The length of the band is needed when you close the roller shutter.
- Page 11 INSTALLATION MANUAL ROLLER SHUTTERS V010 - SPACE, V020 - ELEGANT AND V030 - STEADY Installation electrical control (inside) 1. Determine the position of the switch and mark the 2 holes on the wall indoors. 2. Drill the holes with a 6 mm drill. Ø6 230 V 3.
- Page 12 INSTALLATION MANUAL ROLLER SHUTTERS V010 - SPACE, V020 - ELEGANT AND V030 - STEADY 5. Connect the 4-core power cord of the motor and the 3-core power cord + switch, following the schedule. If necessary, consult an installer. Motor left (seen from the outside) Motor right (seen from the outside) 6.
- Page 13 INSTALLATION MANUAL ROLLER SHUTTERS V010 - SPACE, V020 - ELEGANT AND V030 - STEADY Instructions for connecting remote control iMove® solar motor Scan the QR code for the instructional video. https://verano.nl/video-afstelling-solar-motor-rolluiken Subject to misprints, errors and technical modifications. 1771-240522EN...
