S+S Regeltechnik Thermasreg RTR-E-UP Series Operating Instructions, Mounting & Installation
Room temperature controllers, in-wall
Hide thumbs
Also See for Thermasreg RTR-E-UP Series:
Advertisement
Quick Links
D G F r
6002-3200-2011-000 23200-2017 V101 12 ⁄ 2016

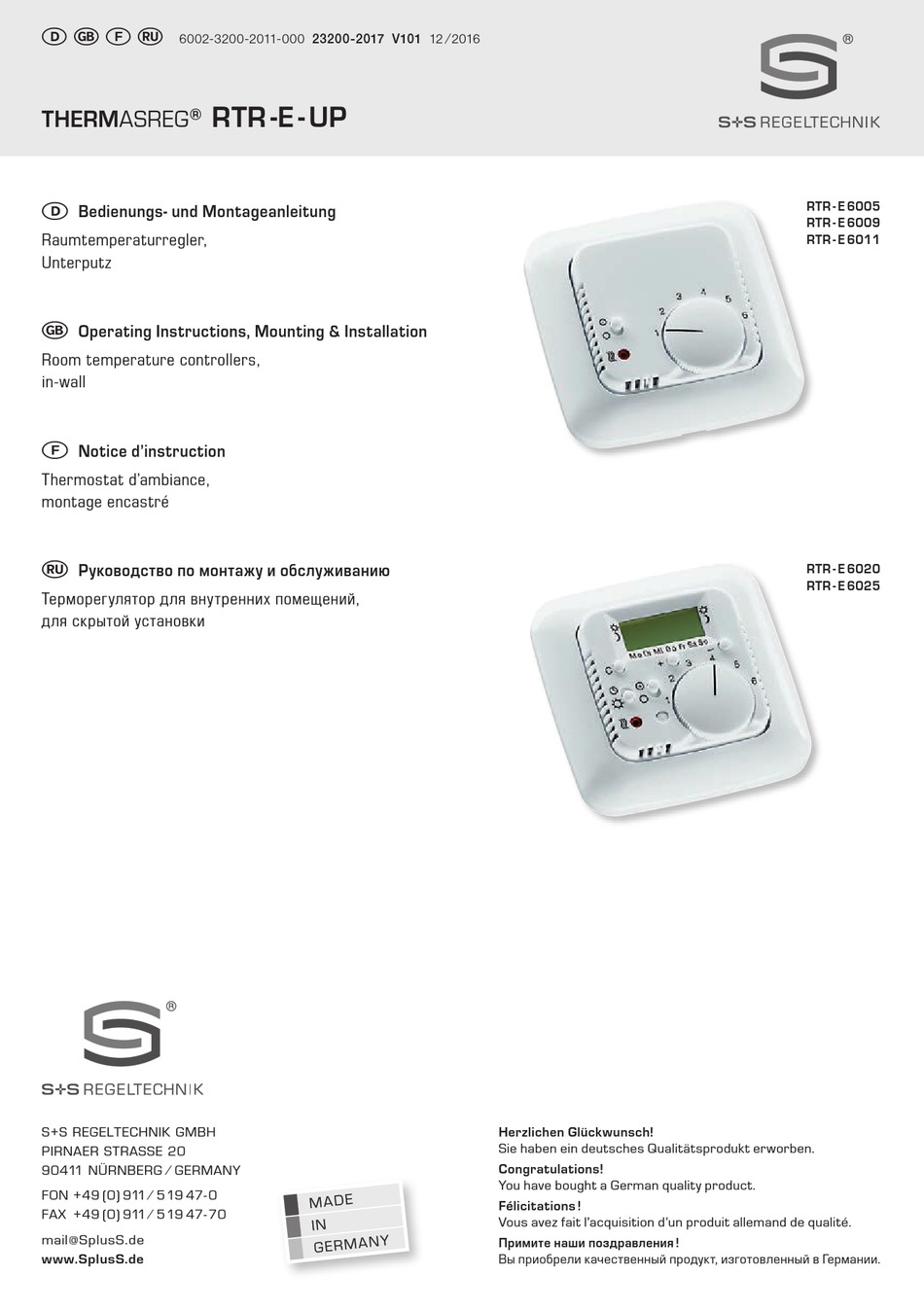

RTR -E - UP
THERMASREG
®
D
Bedienungs- und Montageanleitung
Raumtemperaturregler,
Unterputz
G
Operating Instructions, Mounting & Installation
Room temperature controllers,
in-wall
F
Notice d'instruction
Thermostat d'ambiance,
montage encastré
r
Руководство по монтажу и обслуживанию
Терморегулятор для внутренних помещений,
для скрытой установки
S+S REGELTECHNIK GMBH
PIRNAER STRASSE 20
90411 NÜRNBERG ⁄ GERMANY
FON +49 (0) 911 ⁄ 5 19 47- 0
FAX +49 (0) 911 ⁄ 5 19 47- 70
mail@SplusS.de
www.SplusS.de
Herzlichen Glückwunsch!
Sie haben ein deutsches Qualitätsprodukt erworben.
Congratulations!
You have bought a German quality product.
Félicitations !
Vous avez fait l'acquisition d'un produit allemand de qualité.
Примите наши поздравления !
Вы приобрели качественный продукт, изготовленный в Германии.
RTR - E 6005
RTR - E 6009
RTR - E 6011
RTR - E 6020
RTR - E 6025
