Instruction Manual

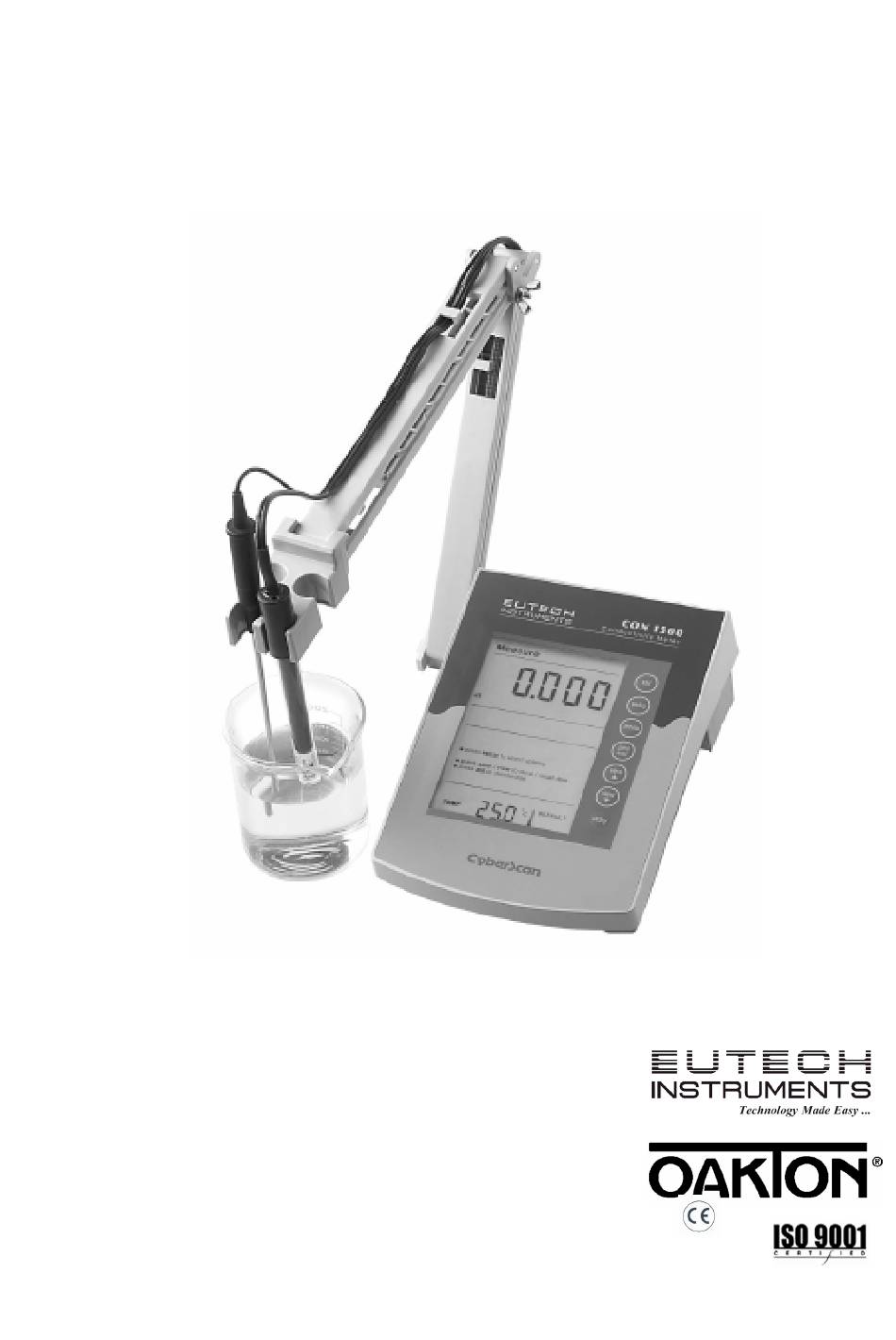

CyberScan CON 1500
Bench Conductivity/ TDS/ Resistivity Meter
ENGLISH
Copyright © 2006 All rights reserved.
Eutech Instruments Pte Ltd
Oakton Instruments
Version 1.1 ML

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Oakton CyberScan CON 1500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EUTECH INSTRUMENTS Oakton CyberScan CON 1500

Summary of Contents for EUTECH INSTRUMENTS Oakton CyberScan CON 1500

  • Page 1 Instruction Manual CyberScan CON 1500 Bench Conductivity/ TDS/ Resistivity Meter ENGLISH Copyright © 2006 All rights reserved. Eutech Instruments Pte Ltd Oakton Instruments Version 1.1 ML...

  • Page 2: Table Of Contents

    Replatinisation of 2-Cell Electrode P15.0 9.1.1 Replatinisation procedure Cleaning the meter Electrode Care 10 ERROR MESSAGES Oakton Instruments Eutech Instruments Pte Ltd. Eutech Instruments Europe bv P.O Box 5136, Blk 55, Ayer Rajah Crescent, Wallerstraat 125k Vernon Hills, IL 60061, #04-16/24 Singapore 139949...

  • Page 3: Introduction

    INTRODUCTION This manual contains the operating features of this meter. At some points this manual will refer to our website www.eutechinst.com,for further explanation and background information, it will be indicated with this symbol: On this website you can also find additional information regarding applications, measuring theories and hints &...

  • Page 4: Preparation

    PREPARATION Conductivity Electrode Information A 2-cell or 4-cell conductivity probe can be connected. Your meter includes a 4-Cell conductivity electrode (Part No: EC620-165) with an electrode constant of K = 1.0. This conductivity / TDS electrode features a built-in temperature sensor for Automatic Temperature Compensation (ATC).

  • Page 5: Calibration

    CALIBRATION Important Information on Meter Calibration Your meter has four measuring ranges. You have an option of calibrating your meter in a single point calibration for all the 4 ranges or for better accuracy; you can calibrate one point in each of the measuring ranges (up to four points).

  • Page 6: Selection Of Automatic Or Manual Calibration (P5.0)

    4.4.1 Selection of Automatic or Manual Calibration (P5.0) Automatic calibration is applicable in conductivity measurement mode only, manual calibration is applicable in conductivity, TDS and Resistivity mode. Only from the conductivity measurement mode; 1. Press setup. 2. Press save/▲ or view/▼ until you view parameter P5.0 (ACAL). 3.

  • Page 7: Multi Point Calibration

    Note: To exit without confirmation, press std to go back to measurement mode. Note: Ensure you set the correct TDS factor before TDS calibration. 1. Repeat step 1 to 4 from p 4.5. Both displays will show the current value. 2.

  • Page 8: Measurement

    MEASUREMENT Temperature Compensation This meter can take measurements with automatic (ATC) or manual (MTC) temperature compensation (MTC for 2-Cell electrode only). Factory default is ATC on. For ATC, attach the temperature electrode. Taking Measurements 1. Rinse the electrode with de-ionized or distilled water before use. Shake or air dry. To avoid contamination or dilution of your sample, rinse electrode with a small volume of your sample liquid.

  • Page 9: Communication / Print Function

    COMMUNICATION / PRINT FUNCTION Connecting the RS232C Cable The meter provides an RS232C output for transmitting readings to a p rinter or computer via a cable. The output data is in the ASCII format. This for allows the data to be imported by a variety of software that reads ASCII data (e.g.

  • Page 10: Other Functions

    1. Press setup 2. Press ▲/save or ▼/view until you view P12.0. 3. Press enter. 4. Press ▲/save or ▼/view to select Current or Memory data print out. 5. Press enter to confirm or std to exit from this page. Note: All stored memory will remain in the meter after printing.

  • Page 11: Setting The Normalisation Temperature (P4.0)

    2. Press save/▲ or view/▼ until you view parameter P3.0. 3. Press enter to view the current temperature coefficient value. 4. Press save/▲ or view/▼ to select the temperature coefficient of your solution. 5. Press enter to confirm or std to return to the measurement mode. Setting the normalisation temperature (P4.0) Your meter will normalize its conductivity measurements to a standard temperature that you can select.

  • Page 12: Cleaning The Meter

    Cleaning the meter The meter requires no regular maintenance, but it is recommended to occasionally wipe down the front with a damp cloth from time to time. Electrode Care 1. Keep the electrode clean. 2. For best accuracy, soak a dry electrode for at least 5 to 10 minutes before calibration. 3.
