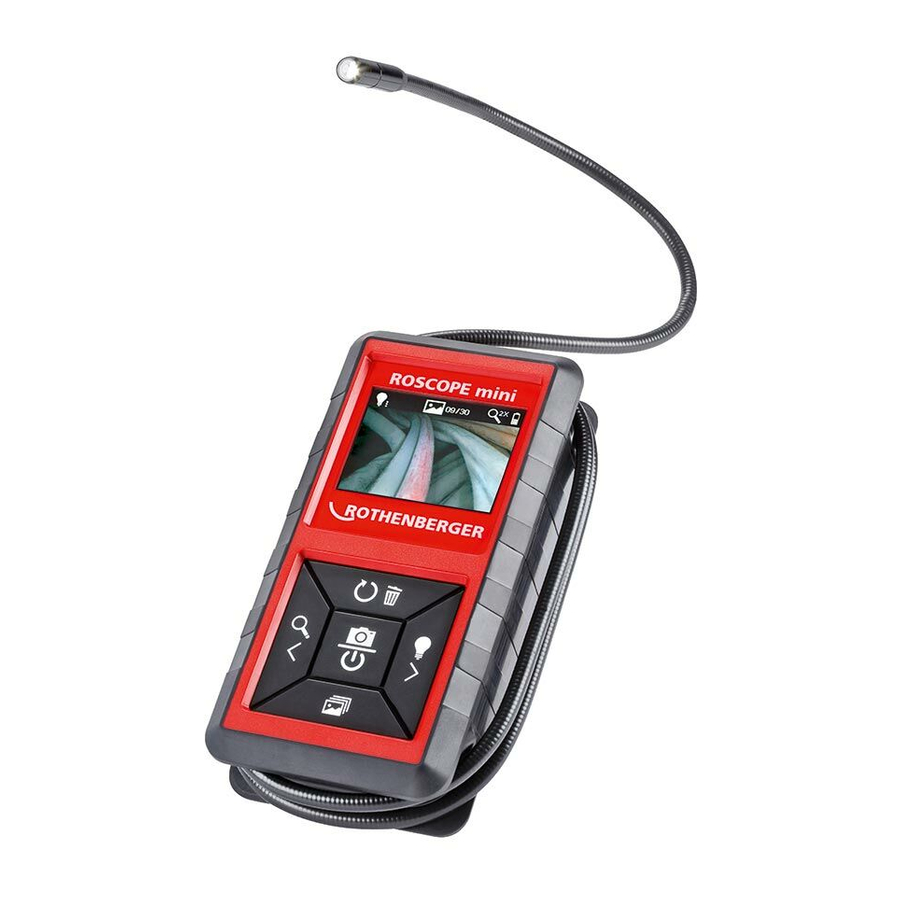

- Page 1 ROSCOPE mini EN Instructions for use www.rothenberger.com...
- Page 2 A Overview Delete: Photo Rotate Delete Zoom Previous Next Power Photo Review...
- Page 3 EN 50581 ppa. Thorsten Bühl ppa. Thorsten Bühl i. A. Maximilian Gottschalk i. A. Maximilian Gottschalk Director Corporate Teamleader Product Technology Approval & Patents Kelkheim, 21.02.2018 Technische Unterlagen bei/ Technical fi le at: ROTHENBERGER Werkzeuge GmbH Spessartstrasse 2-4 D-65779 Kelkheim, Germany...
-
Page 4: Table Of Contents
Contents Page Safety Notes .......................... 3 Intended use ........................3 Safety instructions ......................3 Technical Data ........................4 Function of the Unit ......................4 Overview (A) ........................4 Assembly ........................... 4 Operation ........................... 5 Commissioning ........................5 Working Advice ........................5 Care and Maintenance ...................... -
Page 5: Safety Notes
Safety Notes Intended use The digital inspection camera is suitable for inspecting hard to reach locations or dark areas. After mounting the provided accessories to the camera head, it is also suitable for moving and removing small and light objects (e.g., small screws). The digital inspection camera may not be used for medicinal purposes. -
Page 6: Technical Data
Technical Data Part Number (basic unit) ......1500002878 Batterietyp ........... 4 x 1,5V LR6 (AA) Operating time, approx........ 3,5 h Rated voltage ..........6 V Operating temperature ........ 0° C - 50° C Storage temperature ........-20° C - 60° C Relative humidity ......... -
Page 7: Operation
Operation Keep the hand unit and the batteries dry and protect them from direct sun- light. The camera cable and camera head are waterproof when mounted correctly. However, the hand unit and the batteries are not protected against water. If they come into contact with water, there is a risk of electric shock or damage. -
Page 8: Care And Maintenance
Especially clean the lens of the camera regularly and pay attention for any lint. Customer service The ROTHENBERGER service locations are available to help you (see listing in catalog or on-line) and replacement parts and service are also available through these same service locations. - Page 9 NOTES...
- Page 10 NOTES...
- Page 11 NOTES...
- Page 12 Tel. + 86 21 / 67 60 20 61 • + 86 21 / 67 60 20 67 Tel. + 34 94 / 6 21 01 00 • Fax + 34 94 / 6 21 01 31 Fax + 86 21 / 67 60 20 63 • office@rothenberger.cn export@rothenberger.es • www.rothenberger.es...
