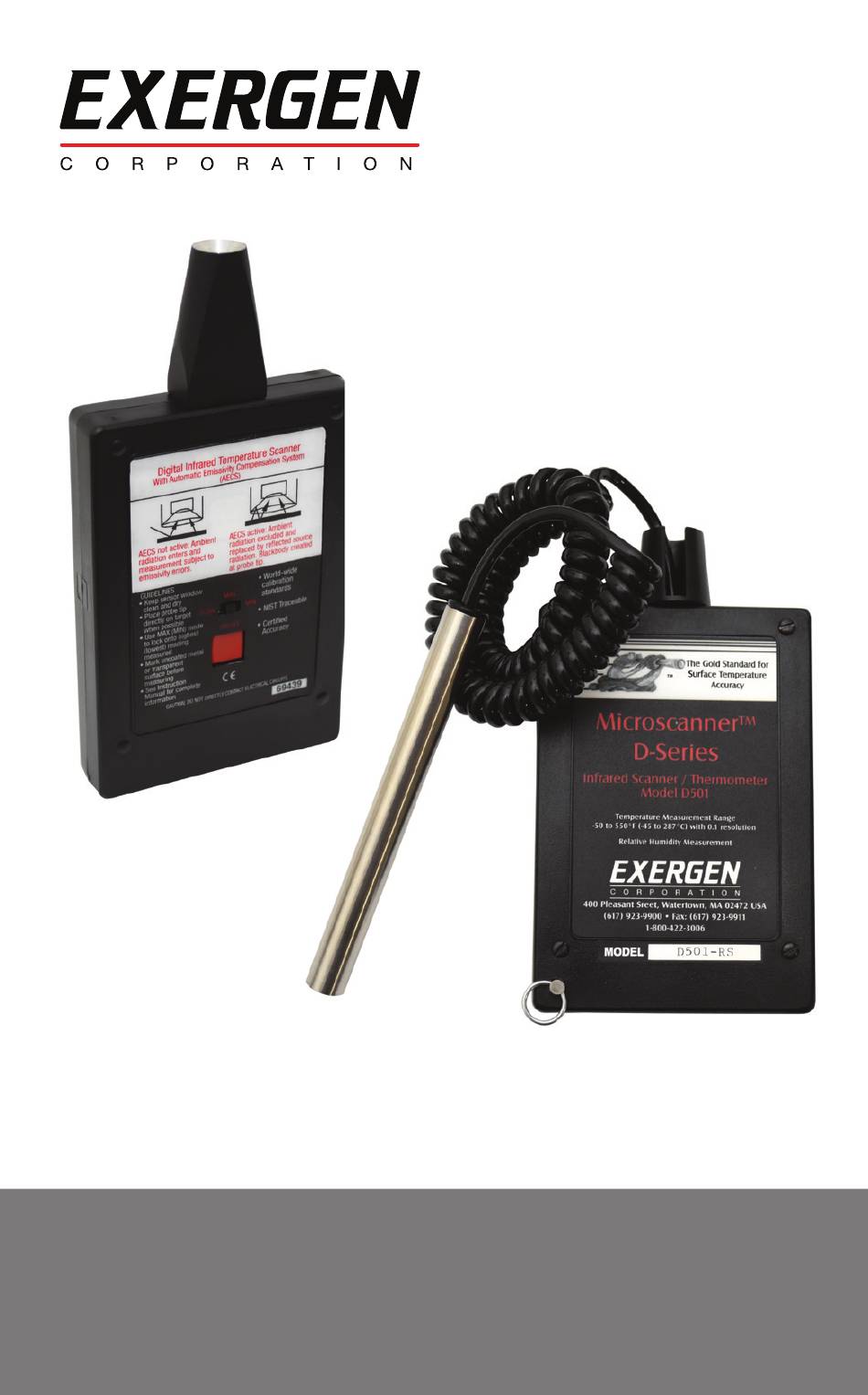

  • Page 1 Microscanner ™ D-Series D501 D501-RS High-Performance Models Instruction Manual...

  • Page 2: Table Of Contents

    Welcome to Infrared! Exergen’s high-performance microprocessor-based infrared thermometers have been designed to provide you with new dimensions of accuracy and versatility. They literally put the power and speed of infrared in your hand! By combining computer calibration and advanced software technology with...

  • Page 3: Operation And Controls

    Operations and Controls Your high-performance Microscanner D-Series is equipped with an ON/OFF ™ power pushbutton and a mode selector switch. The mode selector switch allows you to choose one of three modes of operation: SCAN, MAX or MIN. On/Off, Lock and Reset: •...

  • Page 4: Understanding How Your Microscanner ™ Operates

    We recom mend marking metallic surfaces with a solid paint marker.* To make things easy, Exergen provides a marker with each unit.

  • Page 5: Taking Exact Temperature Measurements

    • Release the power button * Exergen manufactures specific instruments for safe and conve nient inspection of electrical equipment. If electrical inspection is of particular importance, contact Exergen for more informa tion relative to the dedicated electrical inspection instruments. ** If the surface is metallic, be sure to mark it as previously described (see pg. 2).

  • Page 6: High Temperature Targets

    High Temperature Targets When using the D501 on high tem perature targets, momentarily touch the target’s surface - a fraction of a second is long enough to get an accurate reading. If these instruments are used in contact with a hot surface for an extended time (10 seconds or more) the target’s heat will be conducted into the nose- piece.

  • Page 7: Thermal Scanning

    Thermal Scanning The high-performance Microscanner D-Series can also be used to ™ measure tempera tures at a distance. When not touching or close to a surface: • The Microscanner is a wide-angle ther mal scanner with a fixed ™ emissivity of .98. •...

  • Page 8: Measuring Relative Humidity

    Measuring Relative Humidity with the Microscanner D501 ™ A unique benefit of the Microscanner D501 is its ability to measure wet ™ and dry bulb tem peratures faster and more accurately than ever before. A Relative Humidity Kit is available as an accessory. Contact Industrial Sales Customer Support for more information.

  • Page 9: Display Messages

    >565°F (296°C) Low Target [LO] 1/sec <-65°F (-54°C) High Ambient [HI A] 1/sec >122°F (50°C) Low Ambient [LO A] 1/sec <32°F (0°C) Low Battery 2/sec <6.2v Dead Battery [----] 2/sec <5.7v Processing Error [E-##] Return Instrument to Exergen for Repair...

  • Page 10: Helpful Hints

    Helpful Hints Although transparent materials pass vis ible light, many visible transparent materials are opaque in the infrared and can be directly measured by the Microscanner D-Series. ™ To test for infrared transparency, touch the Microscanner to the surface ™ and pass a heat source, such as your hand, through the sensor’s field of view on the other side of the material.

  • Page 11: Maintenance

    Maintenance The high performance Microscanner D-Series products are rugged and ™ durable instruments. They are designed to be used as a tool with long temperature measurement reliability. • Calibration Calibration is performed by a computer through an optical link with the unit’s micro processor.

  • Page 12: Troubleshooting

    Exergen for further directions. Warranty Exergen warrants the Microscanner™ D-Series to be free of defects in material and workmanship for a period of one year from the date of purchase, and will repair or replace the returned instrument (at Exergen’s discretion) at no charge during the period.

  • Page 13: Specifications

    Specifications Target Temperature Range D501: -50°F to 550°F or -45°C to 287°C Absolute accuracy for any non-metallic, non transparent surface +/- (1 + 0.02 (Reading less ambient)) deg F +/- (0.6 + 0.02 (Reading less ambient)) deg C Minimum spot size diameter Approx. ¼” (6.4mm) Repeatability +/- .02% of absolute temperature Display Resolution 0.1°F or 0.1°C Display Update 10 times /second...

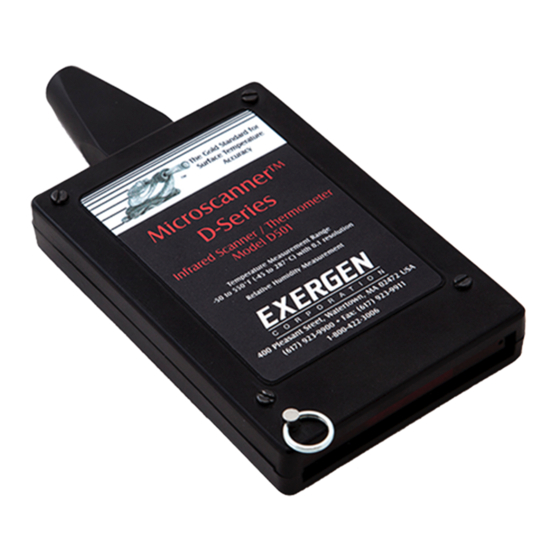

  • Page 14 Microscanner ™ D-Series - Features Overview Model D501 Sensor Window Nosepiece with Reflective Cup (AECS) Mode Selector Switch On/Off Power Pushbutton High-impact ABS Case Digital LED Display...
  • Page 15 Microscanner ™ D-Series - Features Overview Model D501-RS Remote Sensor Probe...
  • Page 16 Microscanner D-Series ™ Exergen Corporation 400 Pleasant Street Watertown, MA 02472 U.S.A. 617-923-9900 www.exergen.com 818098 Rev 3...
