Contents
1- AUTO mode ................................................................................ 3
2- Technical unit indicator lights ...................................................... 3
3- Home automation functions ........................................................ 4
4- Date and time settings ................................................................ 4
5- Setting the temperature settings ................................................ 5
6- Consumption data display .......................................................... 7
7- Programming .............................................................................. 8
8- 'i' information button ................................................................ 10
9- Days home ............................................................................... 11
10- Absence ................................................................................. 11
11- Heating override ..................................................................... 12
12- DHW override ......................................................................... 12
13- AUTO mode ............................................................................ 13
14- Help ........................................................................................ 14
- 2 -

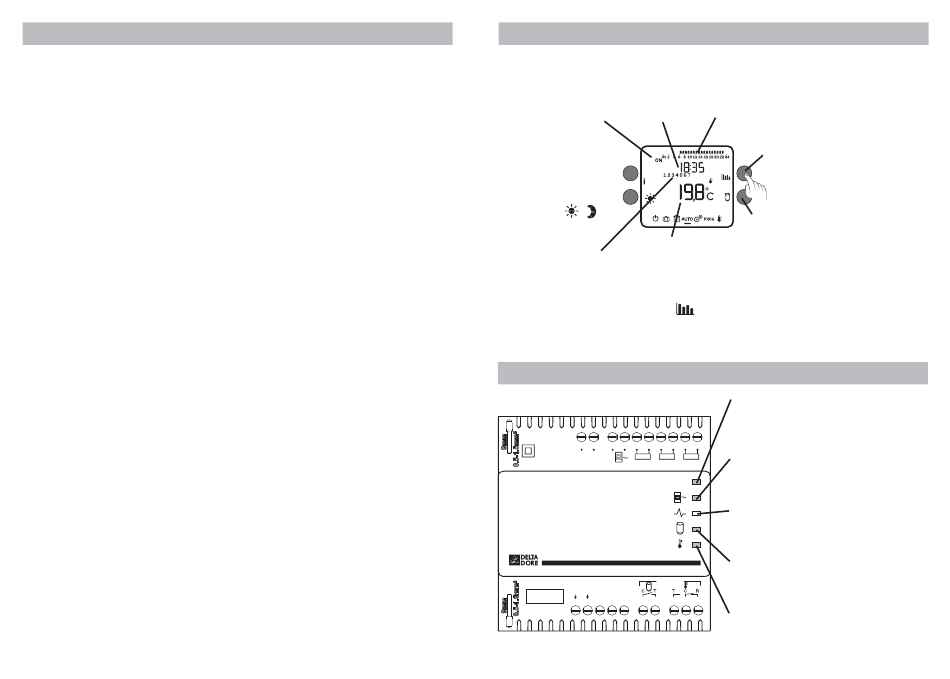

1- AUTO mode
TYBOX controls the heating depending on the active programme (P1 to P6)
and required temperature (settings).
Control output
Time
start
Information
button
Override
( / )
Temperature
Day of the
measured
week
• Heating and DHW (Domestic Hot Water) overrides possible,
• Access to consumption data (
- Access to the system status ('i' button) and to any faults,
• Changeover to standby after a 30 seconds time-out period
2- Technical unit indicator lights
1 2 3 4 5 6 7 8
T
BUS A
C
Ti1 Ti2
TYBOX
BUS
3A - 230V
N L
4VA
230V~50Hz
11 12 16 17 18
Ref. : 4100795
Profile of active
programme
Consumption
data display
Hot water tank
override
),
Bus indicator light
Blinks in sync with the data
Steady blinking = Bus fault
Off = Power supply failure
9 10
Electronic meter indicator light
Ti3
On = Normal operation
Blinking = remote-info fault
T
C
DHW load control indicator light
On = Load control in progress
DHW (Domestic Hot Water) indicator
light
On = ON
~
Off = OFF
19 20
"Control output" indicator light
On = ON
Off = OFF
- 3 -
