Summary of Contents for Relync R1

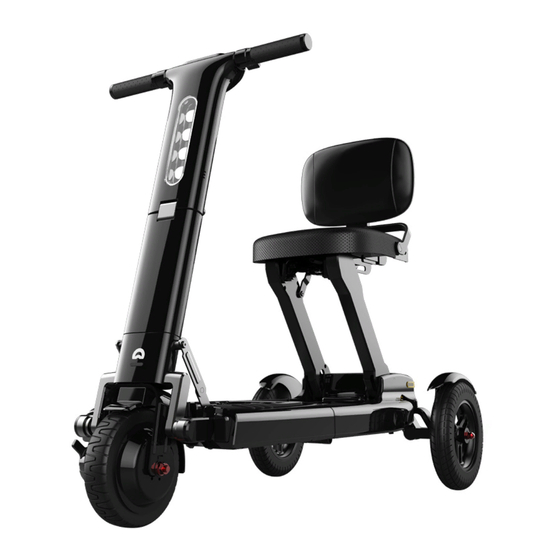

- Page 1 Electric Mobility Scooter www.relync.com Owner's Manual Model: RAA WARNING: Please read the user manual before operating this scooter Relync Tech LTD. Version :EN032019REL...
- Page 2 Mobility The Art Of...
- Page 3 Relync Tech Ltd has employed the most advanced technology available to create a revolutionary new mobility scooter offering improved safety as well as comfort and convenience. The Relync R1 has been designed to give users the ability to become mobile with confidence. Relync continues to strive to improve automation with the aim of revolutionalising the whole industry.
-
Page 4: Table Of Contents
Indications for Use Intended Users III. PRODUCT DESCRIPTION Certification and Compliance Basic Principle II.SAFETY Dimensions General Specifications Modifications IV. YOUR RELYNC R1 Pre-ride Safety Check Driving Console Weight Limitations Display Tyre Inflation Scooter Incline V. OPERATION Cornering Unfolding Your Relync R1... -
Page 5: Background
Reverse Driving Background Stopping Designed to be used indoors as well as on pavements, the Relync R1 Class A mobility scooter features Emergency Braking the latest advanced technology. When being used on pavements, due care must be paid to pedestrians... -
Page 6: Indications For Use
. The Relync R1 is designed to be driven on footpaths and pavements or on the road if there is no suitable pavement or if there is a need to cross the road. Certain companies and authorities will allow mobility scooters and their users access to trains and buses, providing these vehicles are able to carry a mobility scooter and that they have available space. -
Page 7: Certification And Compliance
Always drive straight up or down the ascent or the descent of an incline. Do not Risk Management: ISO 14971 approachthe obstacle at an angle. The European Medical Devices Directive of 93/42/EEC classifies the Relync R1 as a Class I device. - Page 8 SAFETY SAFETY ·Do not turn off the power whilst the scooter is in motion as this will cause it to stop abruptly. Whilst seated on the scooter, do not bend sideways as there is a danger that the scooter will tip over. Bending forward whilst seated may cause accidental contact with the throttle lever.
-
Page 9: Modifications
Modifications Weight Limitations The Relync R1 has been designed to ensure optimum mobility and ease of use and other accessories The Relync R1 has been designed to bear a maximum of 120kg user weight. are available from Relync to enhance its performance as well as the user's comfort. Apart from the... -
Page 10: Incline
·Approach the downhill part of a ramp with great caution. · When approaching tight corners, do not try to cut them otherwise you may become stuck or collide WARNING! Although the Relync R1 WARNING! Never place the scooter with the barriers. Instead, negotiate the corner in a wide arc leaving the scooter plenty of room to turn. - Page 11 SAFETY SAFETY On approaching an incline, it is advisable to lean forward as shown in figures 2A and 2B. The centre of gravity of both yourself and the scooter automatically shift towards the front offeringincreased stability. Figure 2A.normal Driving Position Figure 2B.
-
Page 12: Cornering
Using excessive speed when cornering can cause the scooter to become unstable and increase the When used on normal driving surfaces such as tarmac, concrete etc, the Relync R1 has been likelihood of tipping. If you are concerned that the scooter may be about to tip over, immediately reduce engineered to offer maximum stability but its design has been further enhanced to provide similar speed and lessen the sharpness of the angle of the turn. -
Page 13: Inclement Weather Precautions
·Original Relync Li-Ion batteries should always be used on the Relync R1 scooter. Freewheel Mode The ReLync R1 features a freewheel lever which is manually operated. The lever should be pushed forward to allow the scooter to be rolled manually. More information regarding the freewheel mode can... -
Page 14: Motor Vehicle Transport
SAFETY SAFETY Motor Vehicle Transport Product Safety Symbols When travelling in a car or van, the scooter should be folded and securely stowed with the batteries Symbols have been placed on the scooter which the user should read, understand and become familiar removed. -
Page 15: Emi
SAFETY SAFETY The Relync R1 has the ability to resist an EMI of up to 20 volts per metre which will provide adequate protection from most common sources of EMI. In normal daily life, some sources of fairly intense EMI may be encountered, some of which can be easily avoided while others are not so obvious and exposure to them may be unavoidable. -
Page 16: Iii. Product Description
The Relync R1 mobility scooter is powered by batteries and is controlled by an electronic system. Relync R1 is a three-wheeled powered vehicle driven by either one or two batteries, and controlled by an electronic system. Users can operate the scooter via its own control system. -
Page 17: Iv. Your Relync R1
PRODUCT DESCRIPTION YOUR RELYNC R1 IV. YOUR RELYNC R1 Braking System Electromagnetic brake Driving Console Aviation-grade aluminum, high-tech plastics, nylon-enforced ABS Body Materiel The scooter's driving console, or dashboard, features the controls and displays necessary for safe Maximum Incline 6 degree operation when in use. -
Page 18: Display
Chassis Locking Hook Seat Support Rubber Ground Support Current operating time since switching on Battery level Accumulated mileage Front Wheel Rear Wheels Speed options Motor Driving direction indicator Speed indicator Folding/Unfolding Handle Figure 5. Dashboard Figure 6. Relync Scooter Parts... -
Page 19: Operation Unfolding Your Relync R1
2.Grip the handlebar at the bottom of the folded scooter with your left hand and raise until upright and in line with the body of the scooter. 1.Before unfolding your Relync R1 mobility scooter, please ensure that it is on level ground with a clearance of at least 2 meters around the wheels. - Page 20 Figure 10 Caution! To prevent the R1 from moving during unfolding, place one foot against one of the rear wheels until the front and rear wheels are apart and the scooter has been unfolded. Caution:The scooter will tilt forward after it has been unfolded.
-
Page 21: Folding Your Relync R1
OPERATION OPERATION Folding Your Relync R1 5.Press the black handle flat into the slot. 1.Make sure that there are no obstacles close Warning! Always to the scooter before ensure that the operating the seat black handle is in place in release handle and the slot before driving. - Page 22 Figure 14 Figure 17 Figure 18 3.The Relync R1 5.Press the red safety lock button and rotate the locking knob anticlockwise to unlock the head of the has been Important! scooter. designed to use Ensure that...
-
Page 23: Getting On Relync R1
WARNING! leaning on the not use the seat Before getting To switch the scooter on, press the Relync button and hold it down for 2 seconds. handlebar tiller when getting or backrest for support when onto the scooter, ensure The lights will come on for one second. The following information will then be displayed: on or off the scooter. -
Page 24: Reverse Driving
The scooter's mechanical brake will then ·To bring the Relync R1 to a stop, take your thumb off the throttle. It will automatically return to the off place the scooter into park mode. -
Page 25: Operating The Freewheel Mode
Operating the Freewheel Mode Batteries and Charger The charger supplied with the Relync R1 scooter is fully approved and small but powerful. It can be connected to any electrical grid rating of 110VAc-240VA. If the batteries on the Relync R1 Ensure that the freewheel lever is ·To connect the charger correctly, connect the DC cable to the battery charger plug and then connect... -
Page 26: Installing And Removing The Batteries
OPERATION OPERATION Installing and Removing the Batteries 4.After removing the battery, press the cover of the housing back down until you hear a "click". 1.This is the battery housing. 2.Pull the tab on the battery housing upwards to open it. Attention! Batteries are both removed and installed in the same way. -
Page 27: Charging Indication
Figure 29 dirt are preventing contact between a battery and a connection. 5. Press the RELYNC On/Off button for at least two seconds to try to switch the scooter on. If this fails WARNING! to work, contact a Relync authorised dealer. -
Page 28: Maintenance
· It may prove necessary for the batteries to be checked and possibly replaced which can be done through an authorised Relync dealer. The front wheel of the Relync R1 is a solid tyre. This means that, rather than being filled with air, it is ·Arrange for the charger to be tested filled with foam so, even if the tyre is punctured, it will never be flat. -
Page 29: Cleaning, Body Care
Cleaning, Body Care. contact a Relync authorised dealer. The body of the Relync R1 scooter is made up of ABS parts. ABS is a durable pre-painted plastic. Its high gloss can be maintained by regular cleaning with a clean damp cloth. -
Page 30: Limited Warranty
Batteries ·The circumstances are beyond the control of Relync The batteries supplied for the Relync R1 mobility scooter are covered by a 12 month warranty from the date of purchase by the original battery manufacturer. Gradual deterioration in battery performance... -
Page 31: Contact Information
X.CONTACT INFORMATION Updated information on Relync scooter can be found on the website: The Relync R1 mobility scooter can easily be transported by land, sea or air although federal www.relync.com regulations and airline policies will apply for plane transport. It is always advisable to consult your carrier beforehand to check that both the scooter and the lithium-ion batteries will be permitted.
