- Page 1 System instructions...
-
Page 2: Mounting The Holder

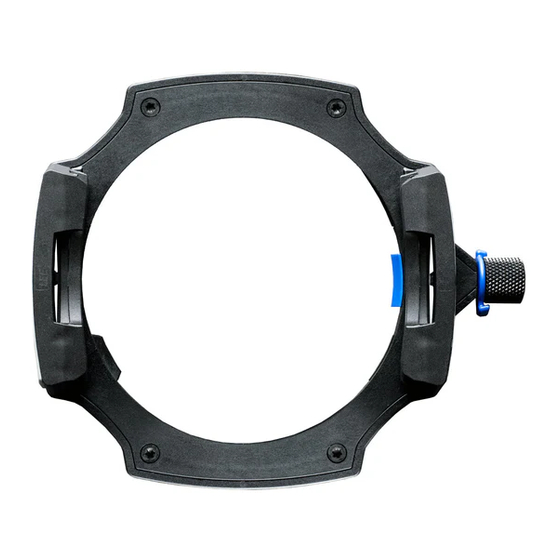

Mounting the holder To fit the LEE100 holder to any LEE Filters adaptor ring, first ensure the spring release is in its neutral position, before pulling it to open the holder. Hook the two black teeth into the adaptor ring, then slot in the other side of the holder before letting go of the spring release. - Page 3 LEE Filters recommend that you remove all filters from the holder before moving around a location, even if the holder is locked onto the ring. Filters can slip from the holder and be damaged if travelling over rough ground.
- Page 4 Polariser The LEE100 polariser simply clips on to the front of the LEE100 filter holder. This operation is best carried out off-camera, and with the holder flat in your hand. Not only is this easier, but also it prevents the filter being dropped on the floor during fitting.
- Page 5 To remove the polariser (again, off camera and flat in the hand is recommended) simply push the clip hard with the ball of your thumb – on one side only – while steadying the unit with your fingers on the other clip. You do not need to squeeze both clips.
- Page 6 105mm polariser ring The LEE100 105mm polariser ring is designed to attach the LEE Landscape Polariser to the LEE100 filter holder. Other 105mm filters are compatible, but thread lengths and pitches may vary, and the ring thickness is optimised for the Landscape version. The easiest way to fit the polariser is to start off with the ring flat in your hand.
- Page 7 Filter-guide blocks Reconfiguring your LEE100 filter holder is easy. Use the narrow end of the blue removal tool to pick out the grey cover plate. The cover plates vary in size, according to whether the filter guide block has one, two or three slots.
- Page 8 To fit a new filter block, make sure the word LEE faces up and the open side of the block faces outward. Clip a new block over the small turrets on the backplate and push firmly until you feel a positive click. Place the appropriate size of grey cover plate into the open side, making sure it is in the correct orientation, to complete the assembly.
