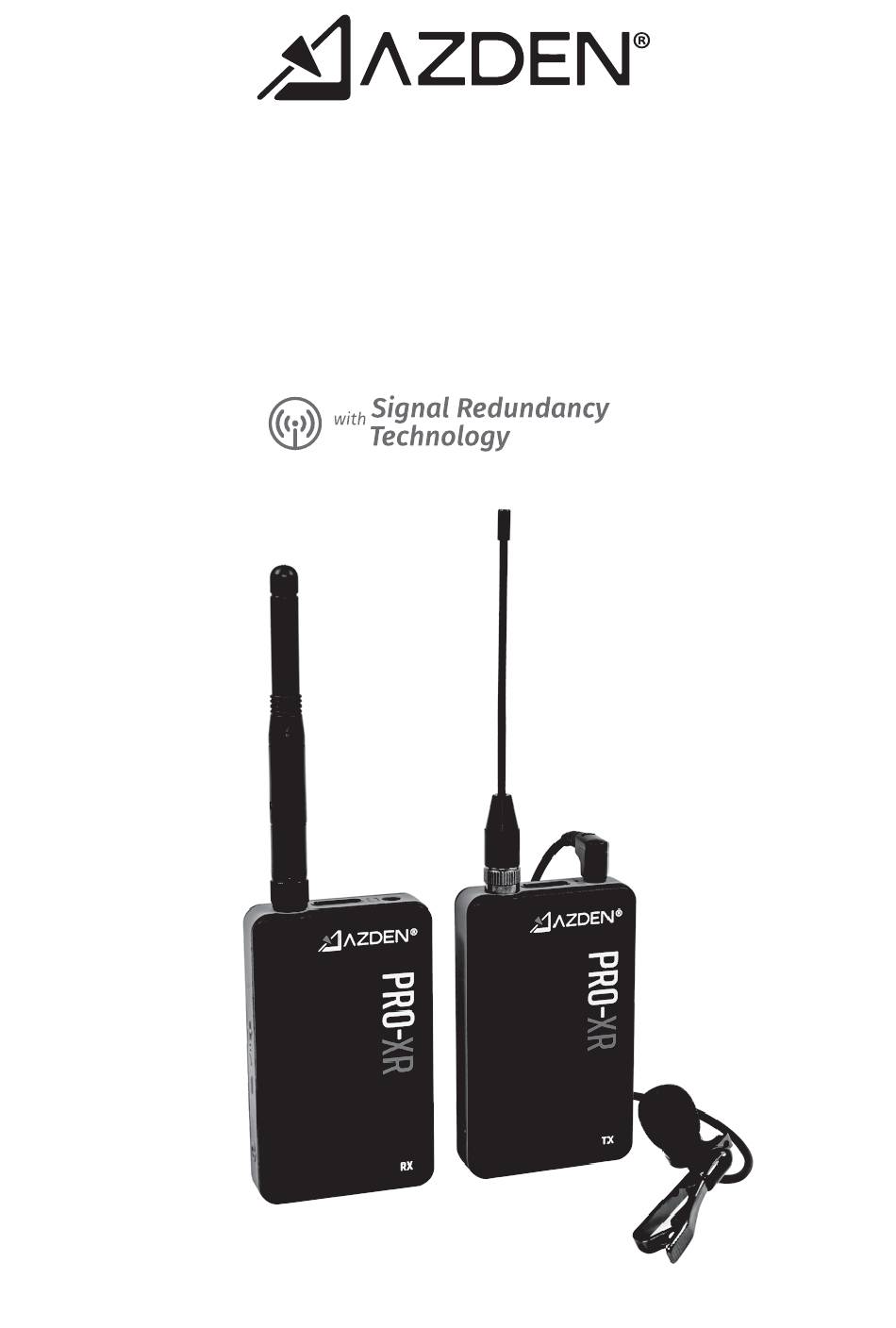

- Page 1 PRO-XR 2.4 GHz WIRELESS MICROPHONE SYSTEM INSTRUCTION MANUAL...
- Page 2 The PRO-XR 2.4 GHz Wireless Microphone System is certified for legal operation in the United States of America, Canada, and all EU member countries. Use of the PRO-XR may or may not be allowed in other countries. It is the responsibility of the user to check the local wireless frequency regulations of any country outside of the previously stated certified countries.
- Page 3 The PRO-XR has a number of unique features that allow it to perform well even in the face of a crowded 2.4 GHz environment. First, the system auto-scans the full 2.4 GHz spectrum each time it is powered on and finds the most interference free frequencies to use for its connection.
-
Page 4: Operation
PRO-XRT TRANSMITTER (TX) ① Antenna ② Power Button ③ Transmission Power Button ④ Input Selector ⑤ Aux Input ⑥ Belt Clip ⑦ Reset ⑧ Microphone Input ⑨ Signal Indicator ⑩ Power Indicator ⑪ Mini USB Charging Port OPERATION Power On/Off ②... - Page 5 PRO-XRR RECEIVER (RX) ① Antenna ② Power Button ③ Volume Control ④ Shoe Mount ⑤ Microphone Output ⑥ Reset ⑦ Headphone Output ⑧ Signal Indicator ⑨ Power Indicator ⑩ Mini USB Charging Port OPERATION Power On/Off ② Turn on the PRO-XRR by pressing and holding the Power Button for 1 second.
-
Page 6: Pairing The Transmitter And Receiver
Pairing The Transmitter and Receiver The transmitter (TX) and receiver (RX) of each PRO-XR system are paired at the factory and are ready to use out of the box. However, there may be some cases in which you will have to manually pair the units with each other again. - Page 7 The PRO-XR may be used with smartphones and tablets for mobile video shooting and live streaming. The PRO-XR system comes with two mobile adapter cables, both of which may be needed in order to use the system with your mobile device. These adapter cables should grant compatibility with current Apple iPhone and iPad models, Samsung Galaxy phones and tablets, as well as many other popular Android phones and tablets.
-
Page 8: Use With A Computer
This is sometimes referred to as a headset input or TRRS jack. If your computer has this type of jack you can connect the PRO-XR receiver in the same way as stated above in “Connecting to a Mobile Device with TRRS Headphone Jack.”... -
Page 9: Using The Aux Input
The output of the PRO-XR was designed to provide a strong audio signal to a camera so that gain levels on the camera’s microphone input should not have to be turned up very high. -
Page 10: Reset Button
2.4 GHz environments. 9. When using the PRO-XR with a DSLR or mirrorless camera, set the volume level of the receiver to its maximum and then reduce the gain at the camera to get a strong audio signal without overloading. If additional reduction in gain is still needed, back off the volume on the receiver until levels are optimized. -
Page 12: Specifications
A dated receipt is required to establish the date of purchase and registration is required to receive warranty service under this two year limited warranty. The cost to ship a failed product to and from Azden or to its dealer shall not be covered by this warranty.
