Control Touchpad; Function; Pump Runs / Valves Do Not Open; Replace Control - Kwikee Level Best Service Manual

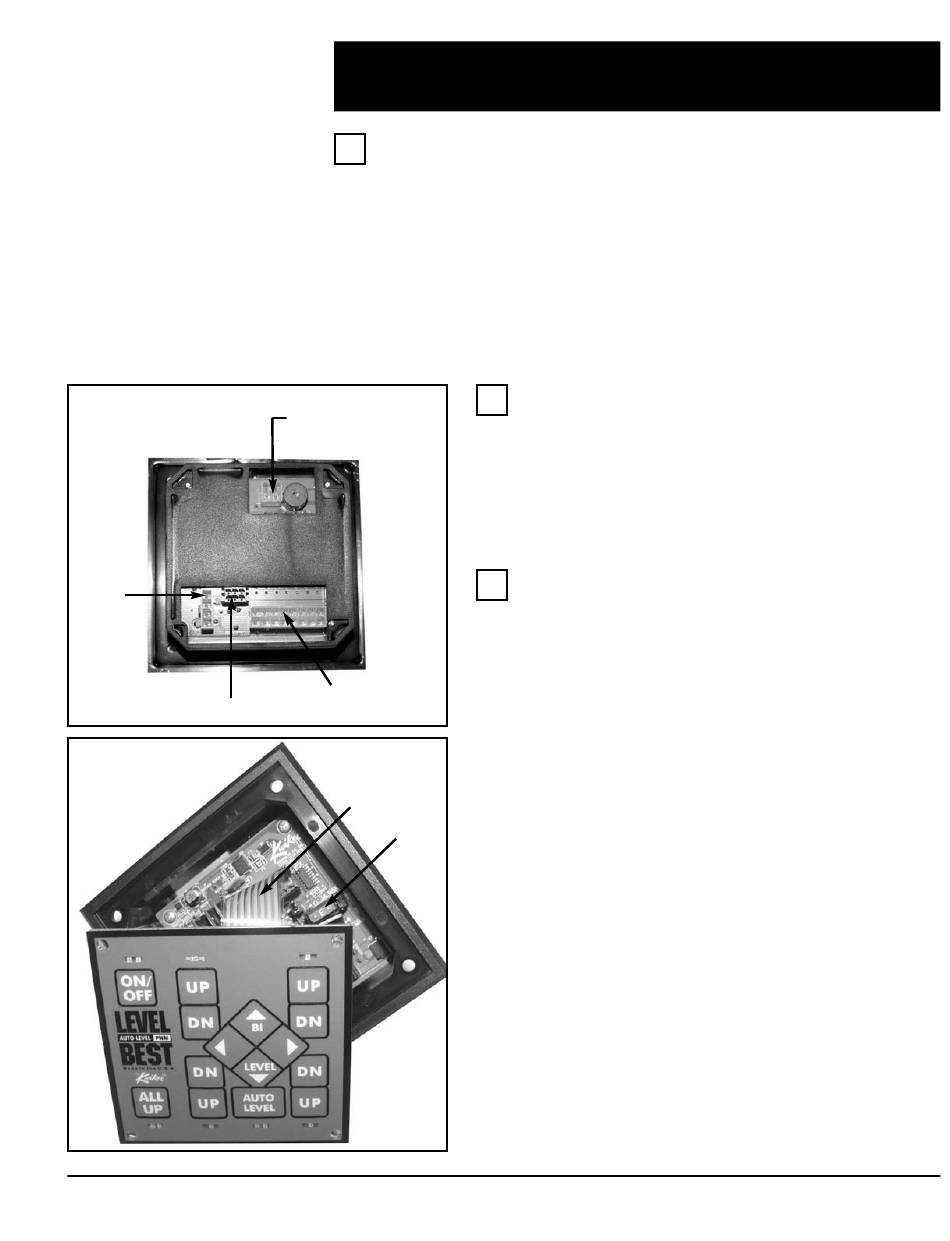

Figure 6a
Power/
Ign/
Park Brake
(to harness)
Level sensor
(semi- and fully-automatic only)
Figure 6b
Level Best Service Guide
6
SEGMENT
A

Function

The Control is the heart of the Level Best electronic control system. Note: Extreme care
should be exercised when working with this device. Disconnect batteries, as any short
circuit or inadvertent grounding will damage the control. The Control microprocessor
handles all of the Level Best switching functions, including the motor solenoid, 4-way
valve, and cylinder / leg valves.
All of the leveling systems electrical requirements, 12-volt power and ground, as well as
all of the necessary leveling system information is processed through the control micro-
processor. This information includes, leg position switches, ignition and park brake sig-
nals, leveling sensor and fluid pressure sensor.
Auxillary dash light
and air dump
(on some coaches)
Main connector
(to harness)
Ribbon cable
3 Amp Fuse

Control Touchpad

B

Pump Runs / Valves Do Not Open

1. Unplug and plug back in the Power/Ign connector
(Figure 6a.)
2. Check system operation.
C

Replace Control

1. Disconnect Battery Power connections.
2. Disconnect Battery Ground connections.
3. Remove control cable connections.
4. Remove control assembly.
5. Replace control assembly.
6. Reinstall cable connections.
7. Reconnect battery Ground.
8. Reconnect battery Power connections.
Page 19
