Electrical Wiring/Connections - Kwikee Level Best Service Manual

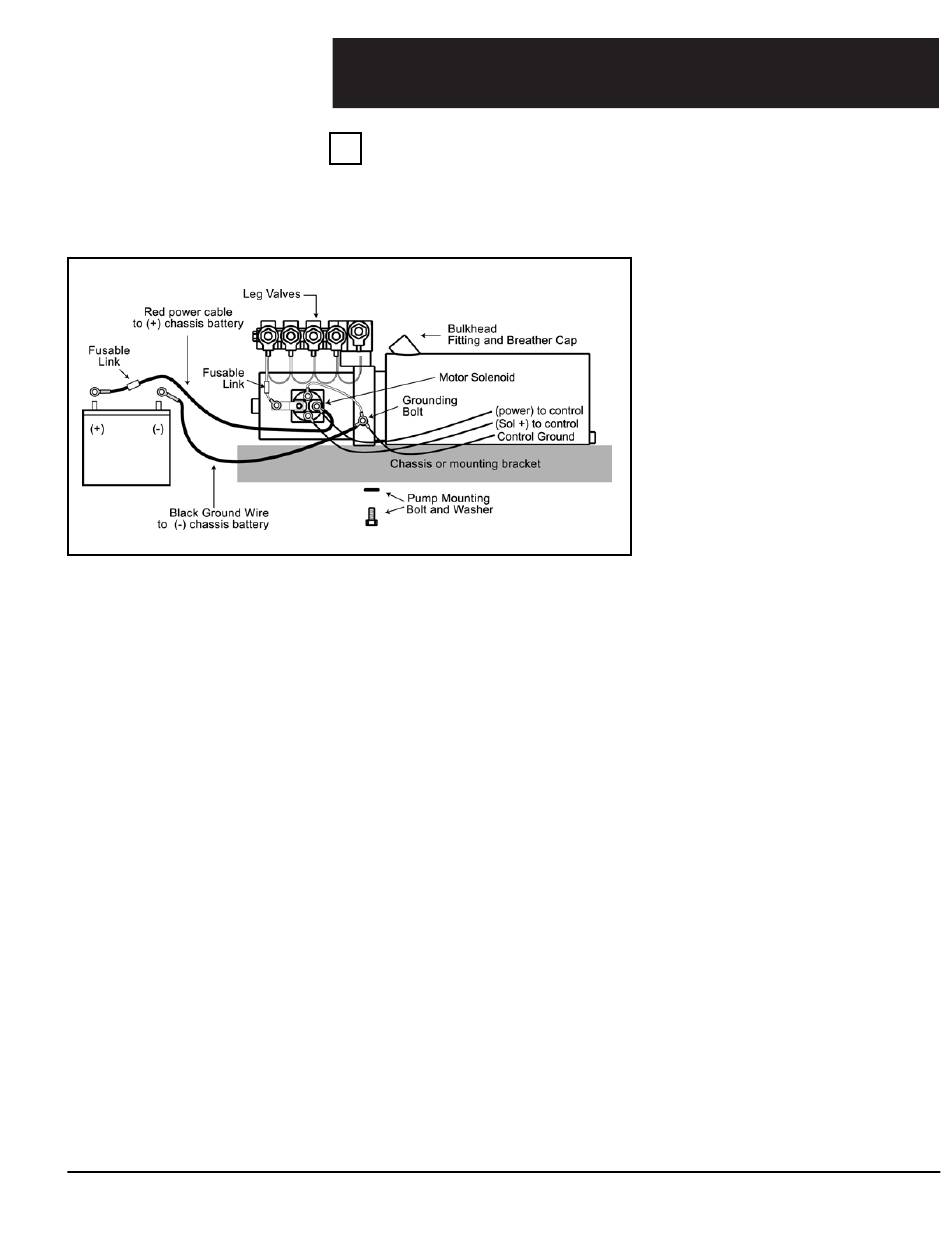

Figure 3a
Level Best Service Guide
3
Electrical Wiring / Connections
SEGMENT
A Function
Power for the Level Best leveling system is derived from the battery cable connection at
the pump motor solenoid. The power lead for the control module also originates from
this connection (Figure 3a.)
that all battery, and motor connections are tightened properly. Recharge or replace the
battery as necessary and retest system for proper operation.
3. Check the wire connection at the motor solenoid to control. Check that all wiring
terminals are properly installed and that the fusible link is in good condition. This wire
provides the electrical power required for the Level Best electronic control system
(Figure 3a.)
4. Check the cable connections between the control panel and the pump / manifold
harness, refer to Segment 2: Control.
5. Check that all wiring has been properly routed and protected and that all
connections are secure and complete.
6. Retest system, if system is not operating or operating incorrectly please refer to
Segment 6: Control Touchpad.
1. Check all ground connections.
These connections are critical for the
proper operation of the control system.
Check the battery to chassis ground.
The pump motor ground cable to the
chassis battery and the control ground
wire to the pump ground connection.
Incorrect or inadequate grounds can
lead to damage of the electronic control
unit (Figure 3a.)
2. Check battery voltage and
connections. A battery in good condition
and properly charged will have a no
load voltage of approximately 12.6
volts. Check the voltage at the battery
and at the cable connection to the
motor solenoid (Figure 3a.) Insure
