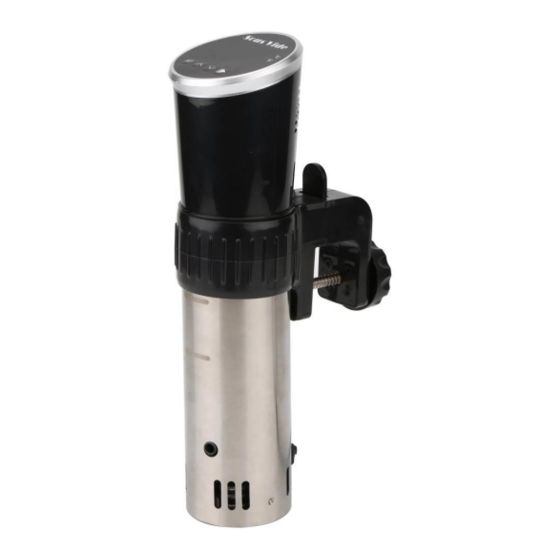

- Page 1 Operating Manual MAXIMA SOUS VIDE UNIVERSAL...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFEGUARDS………………………………………..…….…..3-5 Technical Specification ………………………………………………..….….…..5 Advantages of Sous Vide Cooking ………………………………………..…….5-6 Prepare for Sous Vide Cooking………………………………………….….…….6 Product Functions…………………………………………………………..…..6-7 Product Features…………………………………………………………..….8-9 Operation ……………………………………………………………..…...….…. 9-10 Troubleshooting…………………………………………………………….….…11-12 Maintenance ………………………………………………………….………… 12-13 How to assemble and disassemble quickly…………………………….………13-14 How to clean………………………………………………………….………… ..14-15... -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS When using electrical appliance, basic safety precautions should always be followed including the following: Read all instruction. Do not touch hot surface, use handles or knobs. To protect against electrical shock do not immerse cord, plug, or (control box) in water or other liquid. - Page 4 display or thermometer. 18. During use of the machine, put the needed food for heating into water bath, please make sure the water level must be controlled between the lowest water level “MIN” and the highest water level “MAX” ,to avoid damaging the machine. 19.
-
Page 5: Technical Specification
Thermic overload protection: Reset fixed temperature relay Advantages of Sous Vide Cooking By using the MAXIMA SOUS VIDE UNIVERSAL method to cook, it will keep much more of the nutritional content and use less additional fat then foods prepared traditionally due to the reduced oxygen environment and low cooking temperature. -
Page 6: Prepare For Sous Vide Cooking
perfect meal is well cooked. Prepare for Sous Vide Cooking Vacuum sealing machine ---- To remove most of the oxygen from the bags and to ensure an air-tight seal, preventing air or liquid going in. You can use chamber vacuum sealer or small suction vacuum sealer for different demands. We supply both kinds of vacuum sealers. - Page 7 A. Setting button（"SET"） -In standby mode, press "SET" button to select setting (temperature, time) - In working mode, long press SET button, "D" will display setting temperature *In standby mode, long press “∧” “∨”simultaneously can switch °C/°F *SV96 default setting is °C, temperature 60°C, time 24 hours, the customers can reset according to their actual needs.
-
Page 8: Product Features
Adjustable fixed clamp In order to make MAXIMA SOUS VIDE UNIVERSAL fit for different water baths with different size or depth, the fixed clamp of MAXIMA SOUS VIDE UNIVERSAL is made to be adjustable. operating： Hold the fixing hook tightly, push the slide... -
Page 9: Operation
lower than the min. Water level line 14cm) ② If the water level is over the max water level line( the machine immerses into the water over 16.5cm), please lower the clamp. ③ Suggested water tank volume is not over 30L, too much or too less will effect the cooking negatively. - Page 10 Insert the power cord into the socket with grounding 8. Set needed temperature and time,(please refer to The MAXIMA SOUS VIDE UNIVERSAL’s Feature- -control panel -A.setting button ) 9. Put the food into the water bath. Note: before Sous Vide cooking, the food must be vacuum packed first.
-
Page 11: Troubleshooting
Troubleshooting Problems Reasons Remedy: Machine does not work 1. Power cord is not 1. Plug in, turn on the plugged in well. machine. 2. Problem from the 2. Check if the other power supply. Machines work normally. Water temperature 1. Set temperature Check the setting. -
Page 12: Maintenance
Machine plugs in and 1. The thermic overload 1. Repaired by the specialist turns on, but no display is cut off. 2. Repaired by the specialist. in the LED. Machine is wrong. High decibel noise from air inside the pump 1. - Page 13 Floating switch Protective tube (Temperature Probe Heater Better not use hot machine in cool water. It should be cool down the machine to room temperature and put into cool water to use. Otherwise it will influence the machine function and lifetime. On the contrary, please do not put cool down machine into hot water to use.
-
Page 14: How To Assemble And Disassemble Quickly
How to assemble and disassemble quickly Draw out the filter in the machine. Disassemble the fixing clamp: hold the fixing hook tightly, push the slide plate with your thumb and press tightly, make the connection sleeve leave space to the machine(that relaxed state), and push down to release the clamp. Disassemble the fixing screw: disassemble the screw by cross screwdriver (the screw is above the grounding mark, connecting the machine shell and back cover) -
Page 15: How To Clean
How To Clean Preparation: A container which is over 18cm high, food grade vinegar (white vinegar, apple vinegar, etc.) Why need to clean: Normally tap-water contains minerals in our life. When the water is heated to a certain temperature, there will be scale on the heater or surface of the machine. In this case, the scale will affect the performance of the machine, and the machine is not good in outlook as well.
