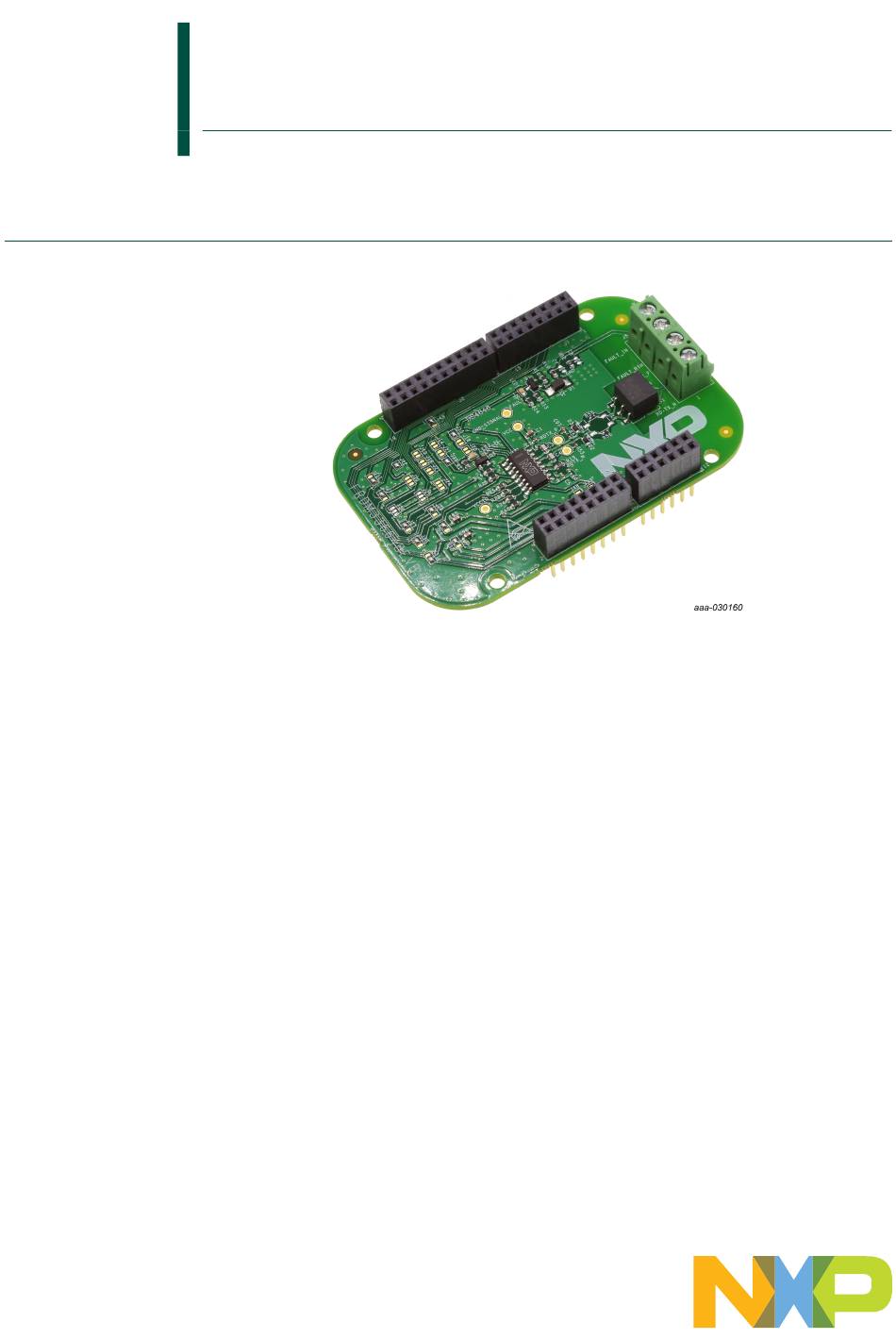

FRDM33664BEVB Featuring the MC33664ATL1EG isolated communication network high-speed transceiver IC Rev. 1.0 — 22 June 2018 User guide FRDM33664BEVB... -
Page 2: Important Notice
FRDM33664BEVB NXP Semiconductors Featuring the MC33664ATL1EG isolated communication network high-speed transceiver IC Important notice NXP provides the enclosed product(s) under the following conditions: This evaluation kit is intended for use of ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY. It is provided as a sample IC pre-soldered to a printed circuit board to make it easier to access inputs, outputs, and supply terminals. -
Page 3: Getting Started
The tool summary page for is located at http://www.nxp.com/FRDM33664BEVB. The overview tab provides an overview of the device, product features, a description of the kit contents, a list of (and links to) supported devices, list of (and links to) any related products and a Get Started section. -
Page 4: Getting To Know The Hardware

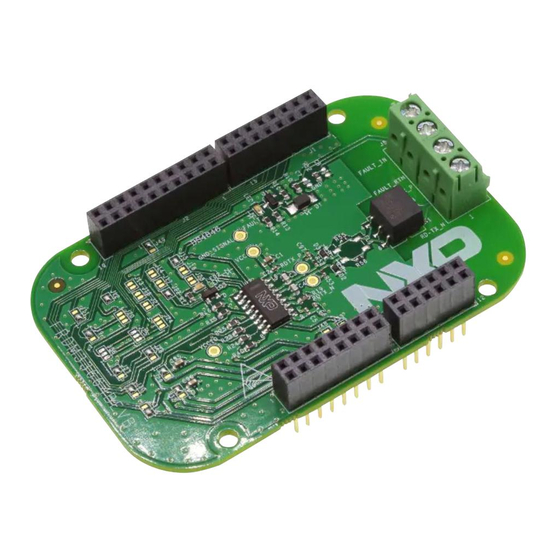

Getting to know the hardware 4.1 Board overview The FRDM33664BEVB is a hardware tool for evaluation and development and is ideal for rapid prototyping of an Isolated Network High Speed Transceiver. It can be used to evaluate the features of the MC33664ATL1EG device. The EVB allows the user to connect SPI signals from the MCU to the device SPI_TX and be able to create bit pulses transmission to the bus through the transformer. -
Page 5: Board Description
• Low sleep mode current with automatic bus wake-up for isolated high speed • Ultra-low radiated emissions differential communication. 4.4 Board description The FRDM33664BEVB allows the user to exercise all the functions of the MC33664ATL1EG. Figure 2. Board description Table 2. Board description Name... -
Page 6: Test-Point Definitions
FRDM33664BEVB NXP Semiconductors Featuring the MC33664ATL1EG isolated communication network high-speed transceiver IC The modes of operation followed by MC33664ATL1EG for the VIO and EN pins are shown in Table Table 3. Modes of operation Device mode EN pin VIO pin LED EN... - Page 7 FRDM33664BEVB NXP Semiconductors Featuring the MC33664ATL1EG isolated communication network high-speed transceiver IC Figure 4. Connectors Table 5. Connector J5 description Name Description J5_1 TPL bus – Receive/transmit input negative J5_2 TPL bus – Receive/transmit input positive J5_3 FAULT_RTN J5_4 FAULT_IN Table 6. Connector J1 description...
- Page 8 FRDM33664BEVB NXP Semiconductors Featuring the MC33664ATL1EG isolated communication network high-speed transceiver IC Name Description J1_13 Connected to jumper J20_1 J1_14 Connected to jumper J12 J1_15 Connected to jumper J24_2 J1_16 No connection Table 7. Connector J2 description Name Description J2_1 No connection...
-
Page 9: Compatible Nxp Mcu Development Platforms
J10_10 Connected to jumper J33 J10_11 No connection J10_12 No connection 4.7 Compatible NXP MCU development platforms FRDM33664BEVB is compatible with multiple NXP MCU development platforms: • FRDM-KL25Z (default) • FRDM-KE06Z • FRDM-KL43Z • FRDM-KV31F • FRDM-KW40Z • FRDM-KEAZ128 Please find MCU development platform ordering, instruction, and other information on nxp.com. -
Page 10: Nxp B.v. 2018. All Rights Reserved
FRDM33664BEVB NXP Semiconductors Featuring the MC33664ATL1EG isolated communication network high-speed transceiver IC Jumper Setting Description open — FAULT open — open — open — DATA_TX open — open — INTB open — open — open — open — SCLK_TX DATA_RX... -
Page 11: Nxp B.v. 2018. All Rights Reserved
FRDM33664BEVB NXP Semiconductors Featuring the MC33664ATL1EG isolated communication network high-speed transceiver IC Jumper Setting Description open — CSB_TX open — open — DATA_TX open — open — CSB_RX VCCIO INTB Table 12. Jumper Setting to Work with FRDM-KL43Z Jumper Setting Description... -
Page 12: Nxp B.v. 2018. All Rights Reserved
FRDM33664BEVB NXP Semiconductors Featuring the MC33664ATL1EG isolated communication network high-speed transceiver IC Jumper Setting Description CSB_RX VCCIO INTB Table 13. Jumper Setting to Work with FRDM-KV31F Jumper Setting Description SCLK_RX open — open — FAULT open — open — open —... -
Page 13: Nxp B.v. 2018. All Rights Reserved
FRDM33664BEVB NXP Semiconductors Featuring the MC33664ATL1EG isolated communication network high-speed transceiver IC Table 14. Jumper Setting to Work with FRDM-KW40Z Jumper Setting Description SCLK_RX open — open — FAULT open — DATA_TX open — CSB_TX DATA_RX open — open — open —... -
Page 14: Configuring The Hardware
CSB_RX VCCIO INTB Configuring the hardware The FRDM33664BEVB can be configured as a shield board connected to selected Freedom boards or it can be used in a stand-alone configuration (without a Freedom board). 5.1 Freedom board configuration The layout of the connectors allow MCU development boards mentioned in Section 4.7... -
Page 15: Standalone Configuration
DATA_RX J2 − 19 J2 − 18 Power supply connections to the FRDM33664BEVB are: • VCC (5.0 V ): J9 − 10 • VCCIO (3.3 V or 5.0 V depending on the required communication signal levels): J9 − 8 • GND: J9 − 12, J9 − 14, J2 − 14 FRDM33664BEVBUG All information provided in this document is subject to legal disclaimers. -
Page 16: References
FRDM33664BEVB NXP Semiconductors Featuring the MC33664ATL1EG isolated communication network high-speed transceiver IC References Product summary page — nxp.com/MC33664 Product summary page — nxp.com/MC33771 Product summary page — nxp.com/MC33772 NXP DocStore — docstore.nxp.com Revision history Revision history Date Description 20180622 Initial release FRDM33664BEVBUG All information provided in this document is subject to legal disclaimers. -
Page 17: Legal Information
Suitability for use in automotive applications — This NXP information source outside of NXP Semiconductors. In no event shall NXP Semiconductors product has been qualified for use in automotive Semiconductors be liable for any indirect, incidental, punitive, special or applications. -
Page 18: Nxp B.v. 2018. All Rights Reserved
Block diagram ........... 4 Fig. 4. Connectors ............7 Fig. 2. Board description ..........5 Fig. 5. FRDM33664BEVB mounted to a FRDM- Fig. 3. Test points ............6 KL25Z .............. 15 FRDM33664BEVBUG All information provided in this document is subject to legal disclaimers. -
Page 19: Table Of Contents
FRDM33664BEVB NXP Semiconductors Featuring the MC33664ATL1EG isolated communication network high-speed transceiver IC Contents FRDM33664BEVB ..........1 Important notice ..........2 Getting started ............ 3 Kit contents/packing list ........3 Required equipment and software .....3 Getting to know the hardware ......4 Board overview ..........4...
