Freescale Semiconductor
Document Number: MC1320xRFCUG
Rev. 1.2, 03/2010
User's Guide
MC1320x RF Daughter Card
User's Guide
1
Introduction
The MC1320x RF Daughter Card (1320xRFD-A00) is used in conjunction with a microcontroller
development board for RFIC evaluation, code development, and system evaluation. The RF Daughter
Card interfaces directly to the M68EVB908GB60, RG60 and QG60 HCS08 family Microcontroller
Development Boards and to the M52235 EVB Microcontroller Development Board, but it can be adapted
to other boards that offer access to the MCU input/output ports.
The RF Daughter Card is configured with all the off-chip circuitry required for functional performance of
the MC1320x RF data modem except the MCU. The MCU interface required by the RFIC is pinned out at
the edge of the card using standard header pins. The RF interface is accomplished through an onboard PCB
antenna. Also, there is an SMT jumper that can be relocated, which will redirect the RF interface to an
on-board 50 ohm connector. The SMA connector can be used with standard coax cables for testing
purposes.

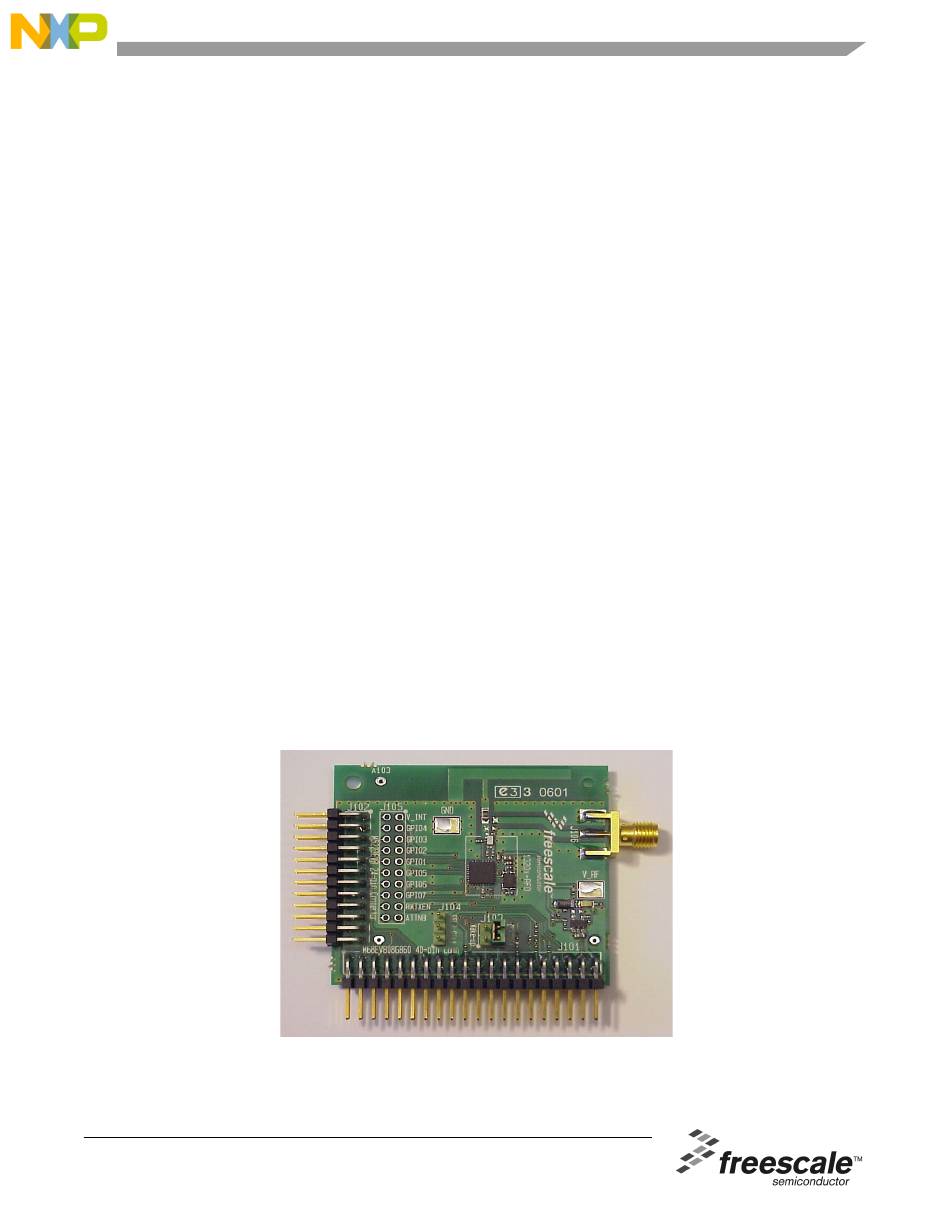

Figure 1-1
shows the RF Daughter Card.
Figure 1-1. MC1320x RF Daughter Card
© Freescale Semiconductor, Inc., 2006, 2007, 2008, 2009, 2010. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC1320 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for NXP Semiconductors MC1320 Series

  • Page 1 Freescale Semiconductor Document Number: MC1320xRFCUG Rev. 1.2, 03/2010 User’s Guide MC1320x RF Daughter Card User’s Guide Introduction The MC1320x RF Daughter Card (1320xRFD-A00) is used in conjunction with a microcontroller development board for RFIC evaluation, code development, and system evaluation. The RF Daughter Card interfaces directly to the M68EVB908GB60, RG60 and QG60 HCS08 family Microcontroller Development Boards and to the M52235 EVB Microcontroller Development Board, but it can be adapted to other boards that offer access to the MCU input/output ports.
  • Page 2 Introduction Figure 1-2 shows the RF Daughter Card installed in a GB60 development board. Figure 1-2. MC1320xRF Daughter Card In GB60 Development Board Figure 1-3 shows the M52235 EVB development board. Figure 1-3. M52235 EVB Development Board MC1320x RF Daughter Card, Rev. 1.2 Freescale Semiconductor...
  • Page 3 Safety Information Safety Information Any modifications to this product may violate the rules of the Federal Communications Commission and make operation of the product unlawful. 47 C.F.R. Sec. 15.21 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 4: Table Of Contents

    MC1320x MCU Interface MC1320x MCU Interface Figure 4-1 shows the typical connections between the MC1320x transceiver and a microcontroller unit (MCU). See the MC13202/203 Reference Manual, document MC13202RM, for interface considerations. Details about the interconnects for both the GB60 and M52235 Development boards are described in Section 5.1, “Development Board Interconnects”.
  • Page 5 Daughter Card Description Daughter Card Description As shown in Figure 5-1 Figure 8-1, connector J101 is the main interface to the GB60 Development Board. The interface connections described in Section 5.1, “Development Board Interconnects”, fall under the following three broad categories: 1.
  • Page 6: G P I O

    Daughter Card Description Figure 5-2 shows the shows the bottom side of the RF Daughter Card PCB. Figure 5-2. MC1320x Daughter Card (Bottom View) Development Board Interconnects The following sections describe the interconnects for both the GB60 and M52235 Development boards. Table 5-1 lists the pin connections for J101 and Table 5-2...
  • Page 7 Daughter Card Description Table 5-1. J101 Pin Connections (continued) Pin Number Pin Name Description Functionality Connects to IRQ pin of MC1320X. Allows the MC1320X to issue an IRQ to the MCU. RESET Optionally connects to RESET of Allows the MCU to reset the MC1320X. MC1320X when R101 or R102 are installed.
  • Page 8: G P I O

    Daughter Card Description Table 5-2. J102 Pin Connections Pin Number Pin Names Description Functionality 4, 5, 6, 7, 8, 11, 12, 14, No connection 16, 18, 22 V_IN Connects the Daughter Card to the Provides supply voltage to the Daughter Card. supply voltage output on the Voltage must not exceed 16 Vdc.
  • Page 9: Miso

    Daughter Card Description NOTE In the following sections, pin numbers not in parenthesis reference the GB60 Development Board. Pin numbers in parenthesis reference the M52235 Development Board. 5.1.0.1 SPI Connections J101 pins 35 through 38 (J102 pin 17, 19, 21 and 23) provide the following four wire SPI interface: •...
  • Page 10 RF Circuit 5.1.0.3 Power Connections J101 Pin 39 (J102 pin 1) provides the supply voltage to the RF Daughter Card. Voltage on this line should never exceed 16.0 VDC and the nominal voltage supply should not exceed 16.0 VDC. J101 Pin 40 (J102 pin 3) is ground.
  • Page 11 Software Configuration To provide a design that is of the lowest possible cost to produce, this reference design was built on a printed circuit board consisting of only two layers and with a printed circuit board antenna. The antenna is an Inverted F design widely used in the 2.4 GHz band. This antenna provides good performance while minimizing Bill of Material (BOM) cost.
  • Page 12 Bill of Materials (BOM) and Schematic Bill of Materials (BOM) and Schematic This section contains the RF Daughter Card BOM and schematic. Table 8-1. Bill of Materials Rating Part Number Value Manufacturer Part Number Reference Tolerance 96000310100 Label 21*6mm 96000310100 BARCODE101 Test BarCode 50610710001...
  • Page 13 Bill of Materials (BOM) and Schematic Table 8-1. Bill of Materials Rating Part Number Value Manufacturer Part Number Reference Tolerance 20030402008 2*10 Pin 1-826632-0 J105 (Not Header Mounted) 20150700202 SMA_edge_Re mot/sma-end_launch 142-0701-831 J106 ceptacle_Fema 20030000100 ProbeLoop Toby TP-107-02-5-T J107, J108 Electronics 54710518001 1.8nH...
  • Page 14: Clko

    J107 J107 J108 J108 ProbeLoop ProbeLoop ProbeLoop ProbeLoop V_RF V_IN V_RF R112 R112 IC102 IC102 GPIO V_INT D102 D102 J105 J105 Green_LED Green_LED ON/OFF GPIO4 GPIO3 C106 C106 LP2981IM5-3.3 LP2981IM5-3.3 C107 C107 C108 C108 C109 C109 TP103 TP103 M5223EVB - MCU Port GPIO2 1μF 1μF...
  • Page 15 NOTES MOTOROLA MC1320x RF Daughter Card, Rev. 1.2...
