Elkay DRKR14C Installation, Care & Use Manual

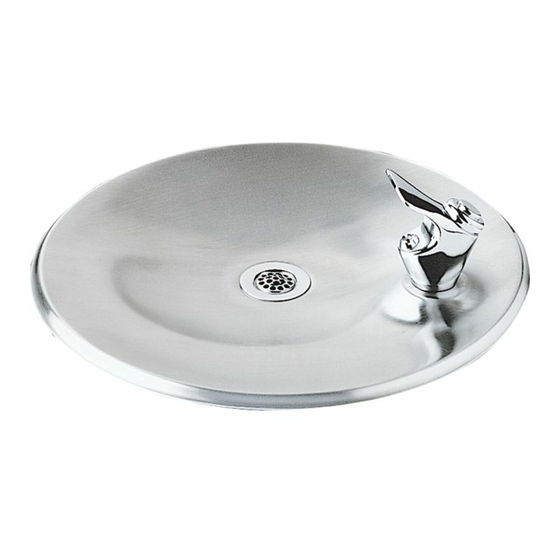

Countertop fountain with flexi-guard

INSTALLATION, CARE & USE MANUAL

INSTALLER

CAUTION:

Review these instructions before beginning installation. Be sure that installation

conforms to all plumbing, electrical and other applicable codes.

WARNING:

When installation is complete, ensure these instructions are left in the plastic bag

provided inside the installed unit for future reference.

WARNING:

Service to be performed by authorized service personnel only.

NOTE: It is common practice to ground electrical hardware such as telephones, computers and other devices

to available water lines. This can, however, cause electrical feedback in the plumbing circuit, which

results in an "electrolysis" effect occurring in the fountain. This may result in water which has a metallic

taste to it or has a noticeable increase in the metallic content of the water.

When inspecting plumbing circuit, remember the line may be grounded some distance from the

installation, and may occur outside the building or area in which the unit is being installed.

This condition can be avoided (in most cases) by using recommended materials during installation. Any

drain fittings provided by the installer should be made of plastic which will electronically isolate the

fountain from the remainder of the building's plumbing circuits.

DRKR14C

Countertop Fountains

Page 1

98140C (Rev. - 3/05)

Table of Contents

Need help?

Do you have a question about the DRKR14C and is the answer not in the manual?

Page 1 DRKR14C INSTALLATION, CARE & USE MANUAL Countertop Fountains INSTALLER CAUTION: Review these instructions before beginning installation. Be sure that installation conforms to all plumbing, electrical and other applicable codes. WARNING: When installation is complete, ensure these instructions are left in the plastic bag provided inside the installed unit for future reference.
Page 2 DRKR14C 1. Make 13-1/4” (337mm) diameter cutout in desired location on countertop. Maintain the 7-5/8” (194mm) dimension from the front edge for ADA compliance. (See Figure 1) 2. Install bubbler assembly to fountain. Align recess in underside of bubbler with dimple in fountain.
Page 3 DRKR14C Accepts Countertop Thickness Up To 1-5/8” Figure 5 Figure 6 Page 3 98140C (Rev. - 3/05)
Page 4 1/4-20 x 2-1/2 Screw 74080005 1/4-20 Hex Nut 74080006 1/4 Washer PRINTED IN U.S.A. FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.323.0620 ELKAY MANUFACTURING COMPANY • 2222 CAMDEN COURT • OAK BROOK, IL 60523 • 630.574.8484 Page 4 98140C (Rev. - 3/05)
