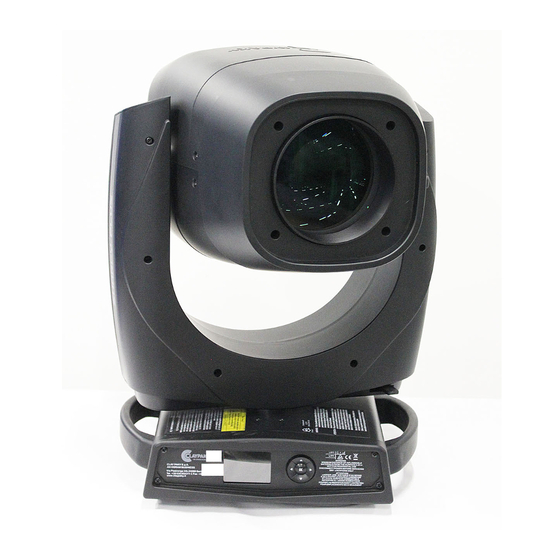

SH RPY PLUS
INSTRUCTION MANUAL
INDEX
Congratulations on choosing a Claypaky product
We thank you for your custom.
Please note that this product, as all the others in the
rich Claypaky range, has been designed and made with
total quality to ensure excellent performance and best
meet your expectations and requirements.
1
CD3000
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Claypaky SHARPY PLUS
Summary of Contents for Claypaky SHARPY PLUS
-
Page 1: Table Of Contents
We thank you for your custom. Safety information Please note that this product, as all the others in the rich Claypaky range, has been designed and made with Unpacking and preparation total quality to ensure excellent performance and best Installation and start-up meet your expectations and requirements. -
Page 2: Safety Information
1. SAFETY INFORMATION SAFETY INFORMATION IMPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also available in digital format at the following link: www.claypaky.com Ref: [FIS01H: Safety information Sharpy Plus] INFORMAZIONI DI SICUREZZA IMPORTANTE: Claypaky raccomanda di leggere accuratamente e conservare le informazioni di sicurezza relative a questo prodotto, sempre reperibili in versione digitale al seguente link: www.claypaky.com... -
Page 3: Unpacking And Preparation
2. UNPACKING AND PREPARATION Packing contents - Fig. 1 LOCKED UNLOCKED UNLOCKED LOCKED PAN Mechanism Lock and Release every 90°) - Fig. 2 TILT Mechanism Lock and Release every 45°) - Fig. 3 SH RPY PLUS... -
Page 4: Installation And Start-Up
3. INSTALLATION AND START-UP 3.1 Installing the fixture Light collimation system This product contains internal light collimation system. Avoid intense light from any angle. Installing the projector - Fig. 4 The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. -
Page 5: Connecting The Control Signal Line: Dmx / Art-Net
Press the switch. The projector starts resetting the effects. At the same time, the following information scrolls on the display: Model Firmware xxx Fixture ID) System errors SHARPY PLUS Version X.X.X Dmx Address xxx E: ......Date - Hour W: ...... - Page 6 Reversal of the display - Fig. 9 To activate this function, press UP and DOWN keys simultaneously while the display is in the rest mode. This status will be memorised and maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again. Setting the projector starting address On each projector, the starting address must be set for the control signal (addresses from 1 to 512).
-
Page 7: Maintenance
4. MAINTENANCE 4.1 Opening the covers 1/4 Turn 1/4 Turn Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKING AND PREPARATION section. Opening the head covers - Fig. 10. Closing the head covers - Fig. 11. Continue SH RPY PLUS... -
Page 8: Periodical Cleaning
• General cleaning of internal parts. • Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Claypaky. • General visual check of the internal components, cabling, mechanical parts, etc. -
Page 9: Effects Module Removal
4.3 Effects module removal Lower side Extraction of the effect modules - Fig. 13. IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 13, 14 and 15 in reverse order. NOTE: - Do not disconnect wiring harnesses when the fixtures is switched-on, to avoid to damage electronic boards. -
Page 10: Cleaning Of The Filters
4.4 - Cleaning of the filters Cleaning of the filters - Fig. 13. SH RPY PLUS... - Page 11 Lower Side 1/4 Turn Lamp change - Fig 14. Take the new lamp out of its package and insert in the fitting. WARNING: do not touch the lamp s envelope with bare hands. Should this happen, clean the bulb with a cloth soaked in alcohol and dry it with a clean, dry cloth.
-
Page 12: Rotating Gobos
INDEX Replacing rotating gobos - Fig. 17 - Before use custom gobos contact Claypaky; - The original gobos have a special coating designed specifically to resist to the high temperatures; - The rotating gobo wheel only use dichroic glass gobos it is not possible to use metal gobos);... -
Page 13: Battery Removal
4.6 Battery removal Battery removal - Fig. 18 This product contains a rechargeable battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force. SH RPY PLUS... -
Page 14: Specifications
5. SPECIFICATIONS (17.91") (17.91") (15.91") (25") (20.98") (14.76") (12.09") POWER SUPPLIES BODY Firmware Upgrade via Web Server AC power input Neutrik PowerCON True1 (IP65) Firmware upload from another fixture Aluminum and steel structure with plastic covers Protocols/Functions: RDM, Web Server 100-240V, 50/60 Hz Two side handles for transportation OPTICS... - Page 15 Cause and solution of problems THE PROJECTOR WILL NOT SWITCH ON ELECTRONICS NON-OPERATIONAL PROBLEMS DEFECTIVE PROJECTION REDUCED LUMINOSITY POSSIBLE CAUSES CHECKS AND REMEDIES No mains supply. Check the power supply voltage. Lamp exhausted or defective. Replace the lamp. (See instructions). Signal transmission cable faulty or disconnected.
- Page 16 CLAYPAKY - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. +39-035-654311 - Fax +39-035-301876 - www.claypaky.it S.p.A.
