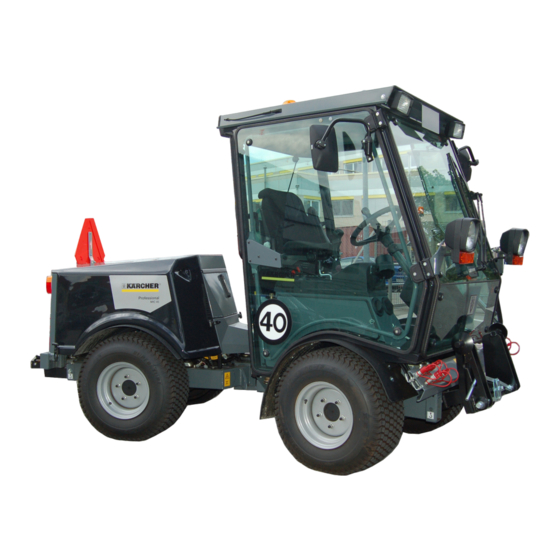

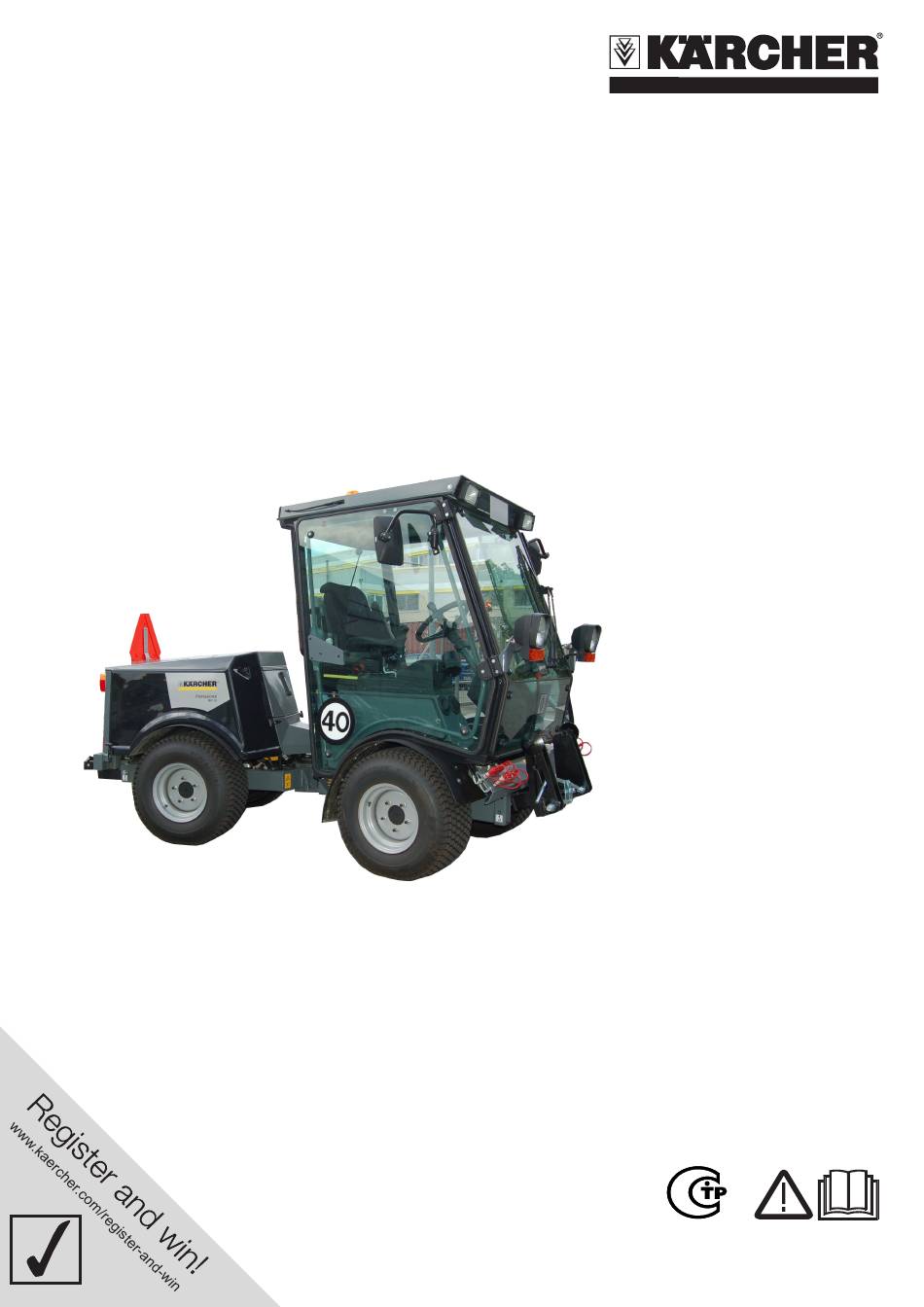

- Page 1 MIC 45 classic MIC 45 advanced 59645440 10/13...
-
Page 3: Table Of Contents
Operations ... . . EN . . . 5 Contact the manufacturer if necessary. MIC 45 classic..EN . . . 5 The packaging material can be At the end of the operating instructions –... -
Page 4: Safety Devices
The appliance must not be operated by – Appliances with combustion engine Symbols on the machine children, young persons or persons The appliance should not be used in closed who have not been instructed accord- rooms. Risk of burns on account of ingly. -
Page 5: Overview Of The Appliance . En
Overview of the appliance Front hydraulic connection Rear hydraulic connection Exterior view of MIC 45 1 Wheels 2 Articulated steering in centre of vehicle 3 Front hydraulic connection 4 Front attachment frame * 5 Direction-indicator lamp 6 Lights 7 Wiper 8 Work light right (in the direction of travel) 9 Outside mirror... -
Page 6: Console
4 Accelerator pedal * 5 Locking mechanism of emergency 1 Setting the motor rpm (hand throttle) brake For the MIC 45 classic: for work mode 6 Pedal for parking brake and drive mode 7 Inching pedal/brake pedal * for the MIC 45 advanced: for work... -
Page 7: Operations
Setting the motor rpm Operations MIC 45 classic / MIC 45 advanced Cruise control MIC 45 classic With the cruise control, the accelerator pedal can be locked in any position at any Control lever speed. Switching on the cruise control: Use the accelerator pedal until the desired speed is reached. -
Page 8: Mic 45 Advanced
For float position: Press the multi-function lever all the way forward and lock it in. Note: This float position is needed when at- tachments are guided along the ground (e.g. snow plow). Control of hydraulic connection 1 Press the multi-functon lever toward the side: The front right hydraulic con- nection 1 will be activated. -
Page 9: Before Startup
FAST TRANSPORT RANGE: The drive speed is regulated via the accelerator pedal. Max. speed approx. 30 km/h or 40 km/h with speed level 2. Drive pedal (foot accelerator) If the drive pedal is pressed, the motor speed will increase. The pedal is spring- loaded;... -
Page 10: Operation
Important instruction: Switching to Walk around the machine and check for Start the engine the speed level 2 (40 km/h) must not the following Is the main switch switched on? – take place during the drive, but only Check the hydraulic connections for –... -
Page 11: Towing Hitch
Replace the ventilation filter on the hy- – Towing hitch Wear an eye shield! draulic oil tank. The permissible drawbar and drawing Every 600 operating hours loads of the tractor are indicated in the Replace hydraulic oil. – Chapter "Technical Specifications". Replace the cooling liquid with frost pro- –... - Page 12 2 Oil fill cover (motor) MIC 45 advanced 180 Nm Charging battery Pull out oil dipstick. MIC 45 classic 300 Nm Danger Wipe off oil dipstick and insert. Risk of injury! Comply with safety regula- Remove/attach engine panels ...
- Page 13 Coat the washer of the new oil filter with Replace hydraulic oil Replace the fuel filter. oil before fitting it. Every 600 operating hours Every 600 operating hours Fit in the new oil filter and tighten it by Replacement must be performed by the au- Danger hand (torque to 45 - 53 Nm).
-
Page 14: Adjustment Tasks
3 Lifting cylinder heating: Always keep the radiator grill, 4 Steering cylinder suction grill and the blower free of dam- 5 Accelerator pedal (MIC 45 classic only) age, grass clippings, dust, etc. Use high quality multi-purpose grease Replacement tasks and use grease gun to lubricate. -
Page 15: Troubleshooting
Troubleshooting Faults with display Display Cause Remedy By whom Warning lamp for Engine is overheated Set the engine speed to idle. Operator motor temperature Clean the radiator (see "Care and Maintenance). lights up Run the engine in idle until the warning lamp turns off. -
Page 16: Specifications
Specifications MIC 45 classic MIC 45 advanced Driving speed km/h Working speed km/h max. 30 max. 30 Climbing capability (max.) Driven axles Engine Type Kubota V1505-T-EU1 Type 4-cylinder 4-stroke diesel engine Cooling type Water cooling Cylinder capacity 1498 Holes 78,4... -
Page 17: Warranty
Drawing load of trailer hitch (option), unbraked Permissible total drawing weight, braked 3000 4300 Permissible total drawing weight, unbraked 2200 4300 Turning radius 2020 Capacity of fuel tank, diesel Warranty The warranty terms published by our com- petent sales company are applicable in each country. - Page 19 http://www.kaercher.com/dealersearch Alfred Kärcher GmbH & Co. KG Alfred-Kärcher-Str. 28 - 40 71364 Winnenden (Germany) Tel.: +49 7195 14-0 Fax: +49 7195 14-2212...
