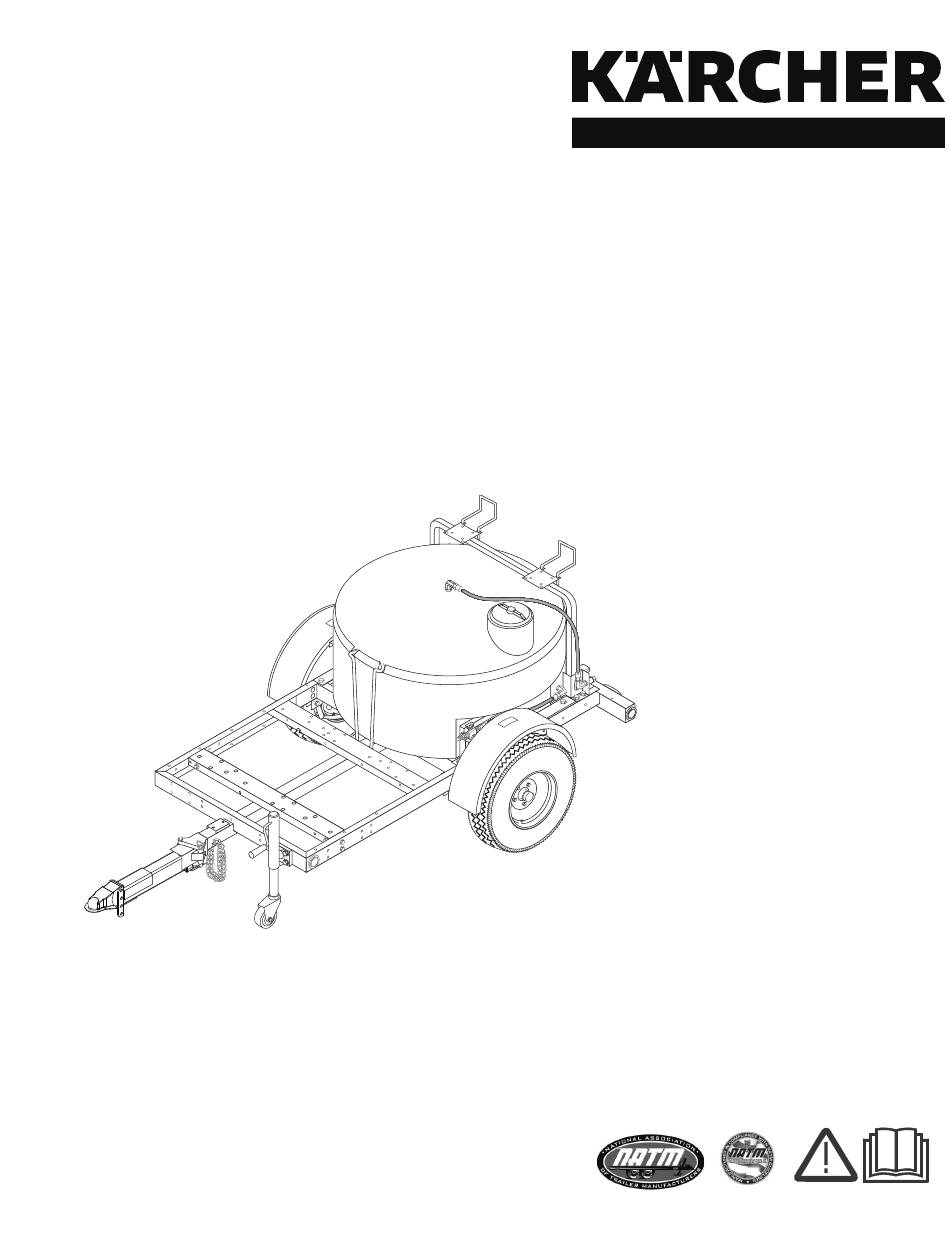

- Page 1 TRAILER Operator’s Manual MODEL: TRS-3500-S 1.103-823.0 89175260-1 To locate your local Kärcher Commercial Pressure Washer Dealer nearest you, visit www.karchercommercial.com 9.801-301.0-C 03/22/19...
-
Page 2: Model And Serial Numbers
WARNING: This Owner's Manual contains safety information and instructions for your trailer. You must read this manual before loading or towing your trailer. You must follow all safety precautions and instructions. 9.801-301.0 Operator’s Manual, Trailer - Kärcher TRS-3500-S... -
Page 3: Table Of Contents
Preventative Maintenance ....15 Axles, Hubs and Brakes ..... 15 9.801-301.0 Operator’s Manual, Trailer - Kärcher TRS-3500-S... -
Page 4: Important Trailer Safety Information
Gross vehicle weight rating of the trailer. warm when you are inflating it, but it will be much better • Gross axle weight rating of the trailer. than to continue to tow it with the under inflation it may 9.801-301.0 Operator’s Manual, Trailer - Kärcher TRS-3500-S... -
Page 5: Never Tow The Trailer Before Checking
25 miles and 50 miles. Recheck every 3 months load the trailer lighting will add to the system. A heavy or 3000 miles. duty flasher may be required to make your turn signals function properly. 9.801-301.0 Operator’s Manual, Trailer - Kärcher TRS-3500-S... -
Page 6: Trailer Ball & Couplers
Also, check that the hitch ball is fully seated not use if coupler operation is impaired. and ball clamp is below the ball. If the ball is not seated with lever in the closed position and latch engaged, DO NOT TOW. 9.801-301.0 Operator’s Manual, Trailer - Kärcher TRS-3500-S... -
Page 7: Hitch Coupler Troubleshooting
Lower the coupler onto the ball with the coupler latch in the vertical position. Continue to lower the trailer 9.801-301.0 Operator’s Manual, Trailer - Kärcher TRS-3500-S... -
Page 8: Load-Carrying Capacity
GVWR of the trailer less the empty weight of the trailer because there may be another controlling factor such as frame strength that reduces the carrying capacity to what is listed on the VIN tag. 9.801-301.0 Operator’s Manual, Trailer - Kärcher TRS-3500-S... -
Page 9: Proper Weight Distribution & Tongue Weight
Adjustments should be made until the tongue weight falls within 10% -15% recommended range. Likewise, if you have too much tongue weight adjust the weight backwards with respect to the axle until the tongue weight falls in the recommended range 9.801-301.0 Operator’s Manual, Trailer - Kärcher TRS-3500-S... -
Page 10: Reporting Safety Defects
Wheel Torque Requirements TORQUE SEQUENCE WHEEL SIZE Stage Stage Stage 15" 20 - 25 50 - 60 90 - 120 9.801-301.0 Operator’s Manual, Trailer - Kärcher TRS-3500-S... -
Page 11: Ball Coupler Hitches
Check bearing Out of molded into the tire sidewall divided by 1.10. Cupping adjustment and bal- balance ance tires. Avoid sudden stops Wheel lockup & Flat Spots when possible and tire skidding adjust brakes. 9.801-301.0 Operator’s Manual, Trailer - Kärcher TRS-3500-S... -
Page 12: Maintenance
Brake should be on and wheels locked. 4. Replace pin and secure to tow vehicle. Do not loop over hitch ball. Breakaway Battery on A-Frame (Two fill caps underneath cover) Power Cable Breakaway Cable to Vehicle 9.801-301.0 Operator’s Manual, Trailer - Kärcher TRS-3500-S... -
Page 13: Brake Adjustment
ATTENTION : Ne jamais se glisser sous la remorque à moins qu'elle ne repose correctement en place sur des chandelles. Do not lift or place supports on any part of the suspension system. 9.801-301.0 Operator’s Manual, Trailer - Kärcher TRS-3500-S... -
Page 14: Trailer Storage
8. Inspect oil or grease seals for wear or nicks. Replace if necessary. 9. Lubricate hub bearings. Refer to procedure in manual. 10. Reinstall hubs and adjust bearing per instructions in manual. 9.801-301.0 Operator’s Manual, Trailer - Kärcher TRS-3500-S... -
Page 15: Preventative Maintenance
Maintenance for axles, hubs and brakes is extremely important for protecting the longevity of your trailer. It is extremely important for your personal safety and the protection of others. Follow the maintenance schedule exactly as described. Please, never shortcut axle, hub and brake service and maintenance. 9.801-301.0 Operator’s Manual, Trailer - Kärcher TRS-3500-S... - Page 16 www.karchercommercial.com 9.801-301.0 • Printed in U.S.A. or Mexico...
