Visit our website or download the latest version of your instruction manual:
www.gamasonic.com

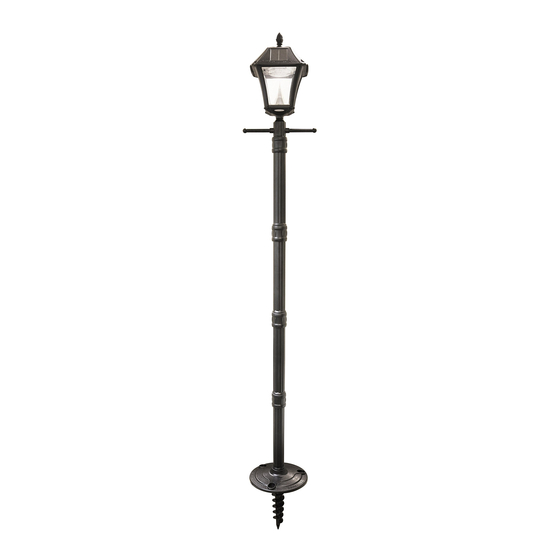

BAYTOWN II
SOLAR LAMP POST
US Patent # 7172307
Patent Pending DIY Installation
For Solar Lamp Post
Instruction Manual
Model: GS-105SG
or
www.gamasonic.com/user-guides
1
Advertisement
Related Manuals for Gama Sonic BAYTOWN II
Summary of Contents for Gama Sonic BAYTOWN II
- Page 1 BAYTOWN II SOLAR LAMP POST US Patent # 7172307 Patent Pending DIY Installation For Solar Lamp Post Instruction Manual Model: GS-105SG Visit our website or download the latest version of your instruction manual: www.gamasonic.com www.gamasonic.com/user-guides...
- Page 2 Introduction Thank you for your purchase. ® solar charged accent lighting GAMA SONIC eliminates the problems associated with most solar lighting available today. ® solar charged lights are brighter and last all night with a typical GAMA SONIC solar charge. Unique design, superior light output and numerous installation options confirm the outstanding value of our product.
- Page 3 Assembly Instructions: 2. Place the lens and 1. Attach the body(B) to the stem(D) cone(C) in the body(B). with the four supplied screws, as shown. 3. Turn on switch to desired 4. Attach top(A) to the body(B) with setting. the two supplied screw caps. 6.
- Page 4 7. Assemble pole by screwing the four pieces together. Four easy ways for installation: Flat mount (8.1 - 8.2) EZ Anchor (9.1 - 9.7) Flat installation (Installing the lamp post without anchor): 8.1 Mark three holes with the base 8.2 After assembling attach the three plate as a template.
-
Page 5: Replacing The Batteries
3. Unclip the connector and remove the old battery. Make sure the new battery is a Gama Sonic - 3.2V/1,500mAh, Li-ion Rechargeable battery with connector. 4. Clip on new battery and install into the battery compartment. - Page 6 Trouble Shooting If your solar charged light does not come on at dusk despite observance of all the instructions, please try the following steps: 1. Make sure that the solar lamp is not being affected by any other light source. 2.
