NOV 10 1977 SH-2000
Holder No.36 ··-----,--
(064-036)
Arm No . . 6-----T---.
(077-006)
'
I
Cushion No . . 36-----;
1
____,_
(107-036)
IC DN8351
(020-078)
Panel No.68
(072-068)
,--------Holder No.37
(064-037)
------·-Magnet No.12
(172-012)
=-----Holder No.35 (R)
(064-035)
Holder No . . 34 (
L)
(064-034)
Blind No . . 26
(065-026)
!@Roland
Holder No . . 30
(064-030)

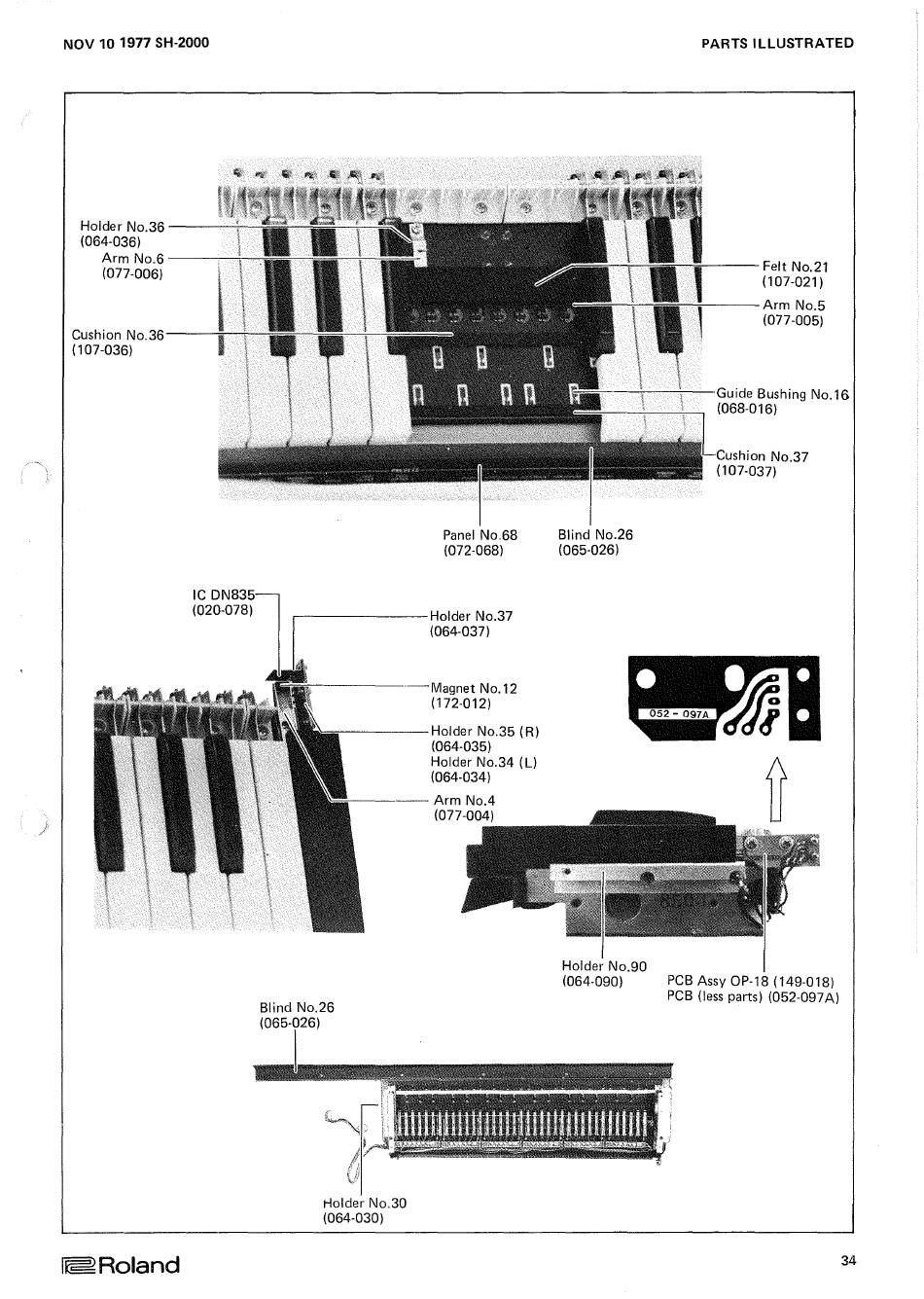

PARTS ILLUSTRATED
,---;I;;.---
Felt No . . 21
1
(107-021)
-
1
- - - A r m No . . 5
1
(077-005)
--'-------'--Guide Bushing No . . 16
Blind No.26
(065-026)
(068-016)
·Cushion No . . 37
(107-037)
PCB Assy OP-18 (149-018)
PCB (less parts) (052-097 A)
