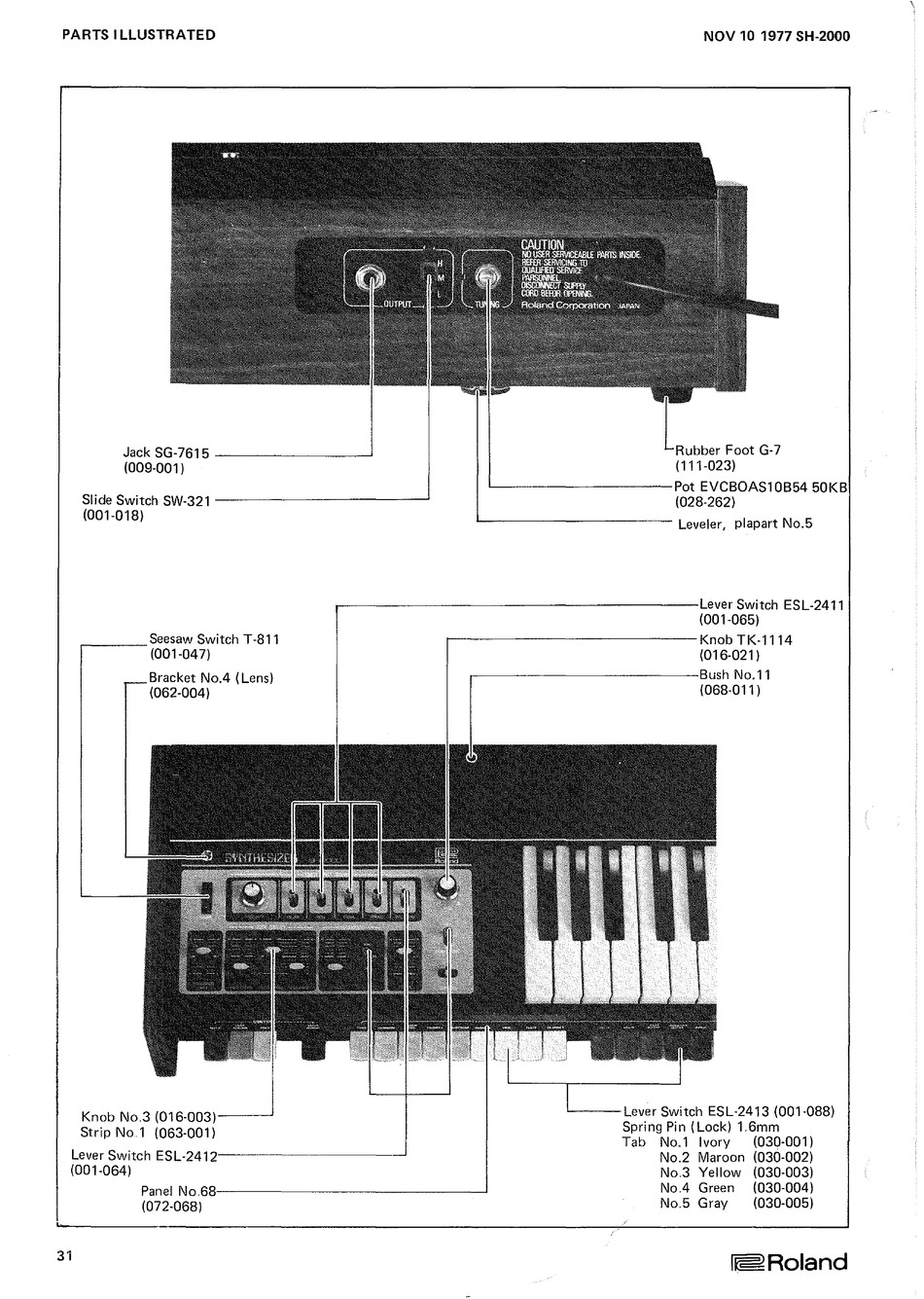

PARTS ILLUSTRATED
Jack SG-7615
--------~
(009-001)
Slide Switch
SW-321-----------~
(001-018)
NOV 10 1977 SH-2000
Rubber Foot G-7
(111-023)
~---------PotEVCBOAS10B5450KB
(028-262)
Leveler, plapart No.5
- - - - - - - - - - - - - - - - - - - - L e v e r Switch ESL-2411
(001-065)
.--_ _ _ Seesaw Switch T-811
(001-047)
Bracket No.4 (Lens)
(062-004)
Knob No.3 (016-003)_J
Strip No . . 1 (063-001)
Lever Switch
ESL-2412---------~
(001-064)
. - - - - - - - - - - - - - - - K n o b TK-1114
(016-021)
- - - - · - - - - - - - - B u s h No . . 11
(068-011)
-
~Lo.ec
Sw;toh ESL-2413 (001-088)
Spring Pin (Lock) 1 . . 6mm
Panel No . . 6 8 - - - - - - - - - - - - - - - - '
(072-068)
Tab
No . . 1 Ivory
(030-001)
No.2 Maroon (030-002)
No.3 Yellow (030-003)
NoA Green
(030-004)
No . . 5 Gray
(030-005)
31
