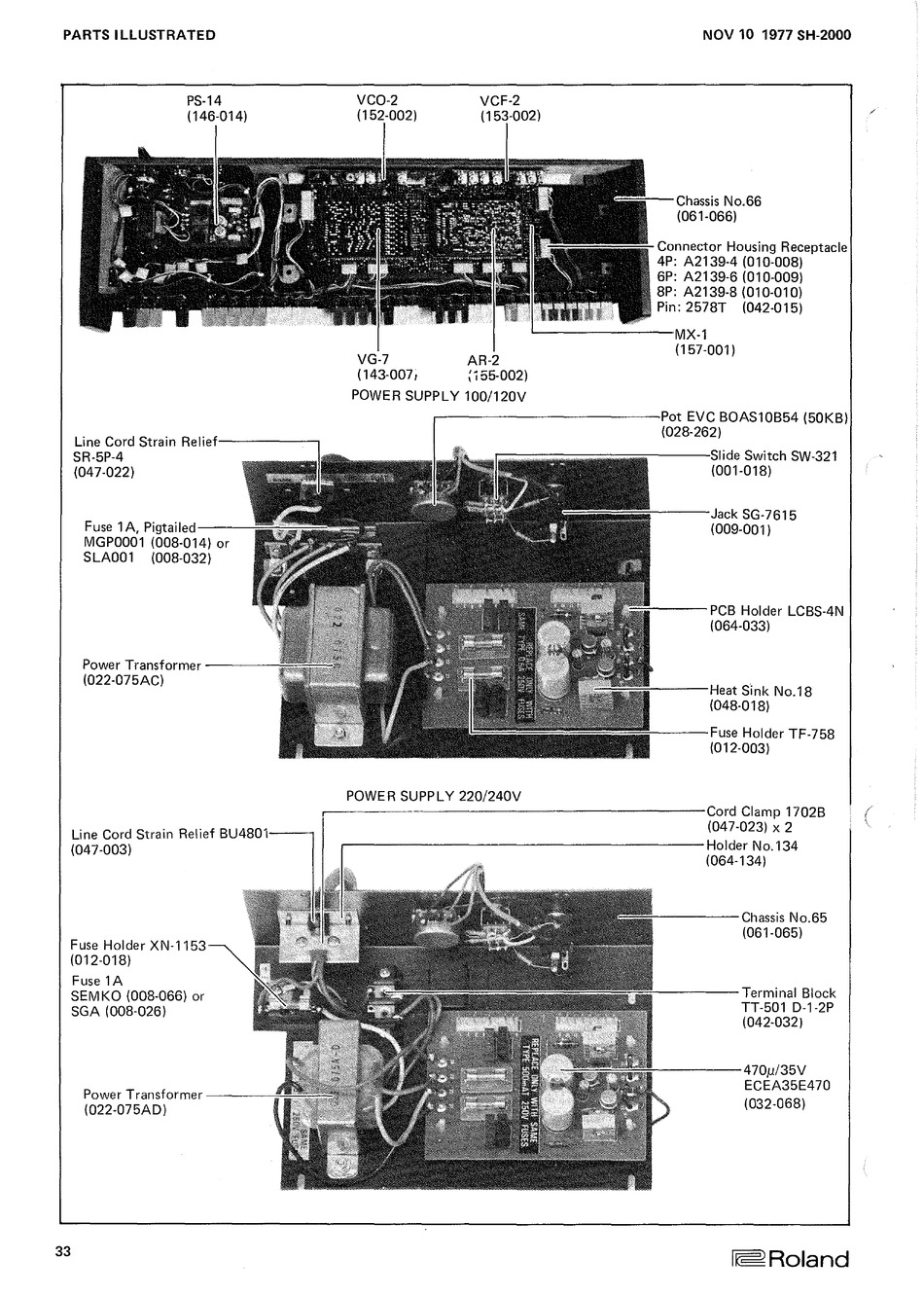

PARTS ILLUSTRATED
33
PS-14
(146-014)
Line Cord Strain Relief------,
SR-5P-4
(047-022)
Fuse 1 A, Pigtailed---
MGP0001 (008-014) or
SLA001 (008-032)
Power Transformer----
(022-075AC)
Line Cord Strain Relief BU4801--
(047-003)
Fuse Holder XN-1153
(012-018)
Fuse 1A
SEMKO (008-066) or
SGA (008-026)
Power Transformer----~
(022-075AD)
VC0-2
(152-002)
VCF-2
(153-002)
NOV 10 1977 SH-2000
Chassis No . . 66
(061-066)
Connector Housing Receptacle
4P: A2139-4 (010-008)
6P: A2139-6 (010-009)
8P: A2139-8 (010-010)
Pin: 2578T (042-015)
'--------''MX-1
VG-7 AR-2
(157-001)
(143-007, ;i55-002)
POWER SUPPLY 100/120V
~-----------Pot EVC BOAS10B54 (50KB)
(028-262)
. - - - - - - - - - = - - - S l i d e Switch SW-321
POWER SUPPLY 220/240V
(001-018)
'----Jack SG-7615
(009-001)
- - - PCB Holder LCBS-4N
(064-033)
--Heat Sink No.18
(048-018)
---Fuse Holder TF-758
(012-003)
- - - - - - - - - - - - - - - - C o r d Clamp 1702B
(047-023) x 2
. . - - - - - - - - - - - - - - - - - - - - H o l d e r No.134
(064-134)
-----Chassis No.65
(061-065)
----Terminal Block
TT-501 D-1-2P
(042-032)
-----470µ/35V
ECEA35E470
(032-068)
