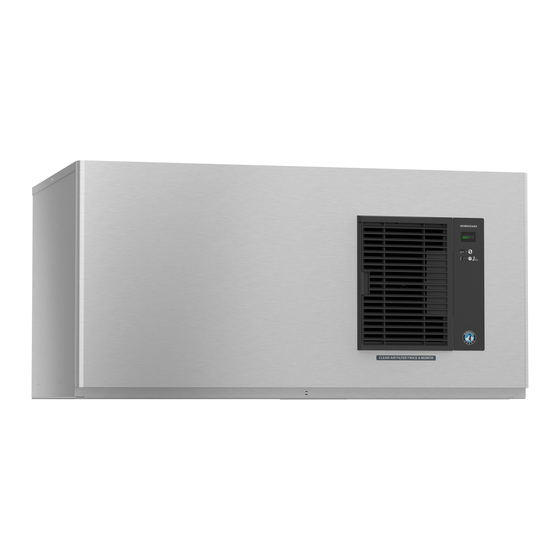

- Page 1 Instruction Manual Modular Cuber Models IM-500SAB hoshizakiamerica.com Issued: 5-14-2019...
- Page 2 Should the reader have any questions or concerns which have not been satisfactorily addressed, please call, send an e-mail message, or write to the Hoshizaki Technical Support Department for assistance. Phone: 1-800-233-1940; (770) 487-2331 Fax: 1-800-843-1056;...
-
Page 3: Table Of Contents
IMPORTANT This manual should be read carefully before the appliance is installed and operated. Read the warnings and guidelines contained in this manual carefully as they provide essential information for the continued safe use and maintenance of the appliance. Retain this manual for any further reference that may be necessary. CONTENTS Important Safety Information .................... -
Page 4: Important Safety Information
Important Safety Information Throughout this manual, notices appear to bring your attention to situations which could result in death, serious injury, damage to the appliance, or damage to property. WARNING Indicates a hazardous situation which could result in death or serious injury. - Page 5 WARNING, continued • Children should be properly supervised around the appliance. • Do not climb, stand, or hang on the appliance or allow children or animals to do so. Serious injury could occur or the appliance could be damaged. • Do not use combustible spray or place volatile or flammable substances near the appliance.
-
Page 6: Specifications
The nameplate is located on the rear panel. For certification marks, see the nameplate. We reserve the right to make changes in specifications and design without prior notice. 1. IM-500SAB Single Phase Model Number... -
Page 7: Dimensions/Connections
B. Dimensions/Connections Unit: mm [inches] The storage bin opening must match the bottom opening as in the illustration. -
Page 8: Installation And Operating Instructions
II. Installation and Operating Instructions WARNING • The appliance must be installed in accordance with applicable national, state, and local codes and regulations. • Failure to install, operate, and maintain the appliance in accordance with this manual will adversely affect safety, performance, component life, and warranty coverage and may result in costly water damage. -
Page 9: Checks Before Installation
• Check that the compressor is snug on all mounting pads. • The appliance can be installed on a storage bin 44” wide or wider. The recommended storage bin is Hoshizaki ice storage bin, Model B-700 series. For further options, contact your local Hoshizaki distributor. -
Page 10: Setup
D. Setup 1. Ice Storage Bin and Icemaker Setup WARNING • Do not use the frame to lift the appliance. Lift the appliance from the base. • The installer must ensure the ice storage bin is compatible with the icemaker, and the ice storage bin and icemaker are properly attached and secured. -
Page 11: Electrical Connection
WARNING 1. Electrical connection must be hard-wired and must meet national, state, and local electrical code requirements. Failure to meet these code requirements could result in death, electric shock, serious injury, fire, or severe damage to equipment. E. Electrical Connection . -
Page 12: Water Supply And Drain Connections
• External filters, strainers, or softeners may be required depending on water quality. Contact your local Hoshizaki Certified Service Representative or local Hoshizaki distributor for recommendations. • A plumbing permit and services of a licensed plumber may be required in some areas. - Page 13 1. Icemaker Icemaker Water Minimum Icemaker Icemaker Drain Minimum Icemaker Supply Inlet Water Supply Line Size Outlet Drain Line Size 1/2" Female Pipe 1/4" Nominal ID 3/4" Female Pipe 3/4" Nominal Thread (FPT) Copper Water Tubing or Thread (FPT) ID Hard Pipe or Equivalent Equivalent •...
-
Page 14: Final Checklist
G. Final Checklist WARNING CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews are securely in place after installation. Make sure that none have fallen into the dispenser unit/ice storage bin. 1) Is the icemaker level? 2) Is the icemaker in a site where the ambient temperature is within 45°F to 100°F (7°C to 38°C) and the water temperature within 45°F to 90°F (7°C to 32°C) all year around? 3) Air-Cooled Models: Is there at least 6”... -
Page 15: Startup
H. Startup WARNING • All parts are factory-adjusted. Improper adjustments may adversely affect safety, performance, component life, and warranty coverage. • Do not put your hands into the back of the storage bin or the baffle on top of the storage bin. -
Page 16: Display
The unit will show an error code and safely stop if the unit is operating outside of acceptable parameters. See the figure below. If an error code appears, please contact your local Hoshizaki Certified Service Representative for assistance. E1: Abnormal freeze cycle... -
Page 17: Maintenance
III. Maintenance The appliance must be maintained in accordance with the instruction manual and labels provided. Consult with your local Hoshizaki Certified Service Representative about maintenance service. WARNING • Only qualified service technicians should service the appliance. • To reduce the risk of electric shock, do not touch the control switch with damp hands. -
Page 18: Cleaning And Sanitizing Instructions
“WASH” position for extended periods of time when the water tank is empty . 1. Cleaning Procedure 1) Dilute approximately 7.2 fl. oz. (214 ml) of recommended cleaner Hoshizaki “Scale Away” with 0.8 gal. (3.0 l) of water. 2) Turn off the power supply. -
Page 19: Sanitizing Procedure - Following Cleaning Procedure
19) Replace the front panel. 20) Turn on the power supply for 3 minutes. The water tank drains. 21) Turn off the power supply. 22) Repeat steps 20 and 21 three more times to rinse thoroughly. Note: If not sanitizing the icemaker, go to step 19 in “III. A. 2. Sanitizing Procedure. “ 2. -
Page 20: Preparing The Appliance For Periods Of Non-Use
IV. Preparing the Appliance for Periods of Non-Use NOTICE • When storing the appliance for an extended time or in sub-freezing temperatures, follow the instructions below to prevent damage. • To prevent damage to the water pump, do not leave the control switch in the “WASH”... -
Page 21: Disposal
V. Disposal The appliance contains refrigerant and must be disposed of in accordance with applicable national, state, and local codes and regulations. Refrigerant must be recovered by properly certified service personnel. - Page 22 HOSHIZAKI AMERICA, INC. 618 Hwy. 74 S., Peachtree City, GA 30269 USA TEL (770) 487-2331 FAX (770) 487-3360 www.hoshizaki.com 1A5483-010...
