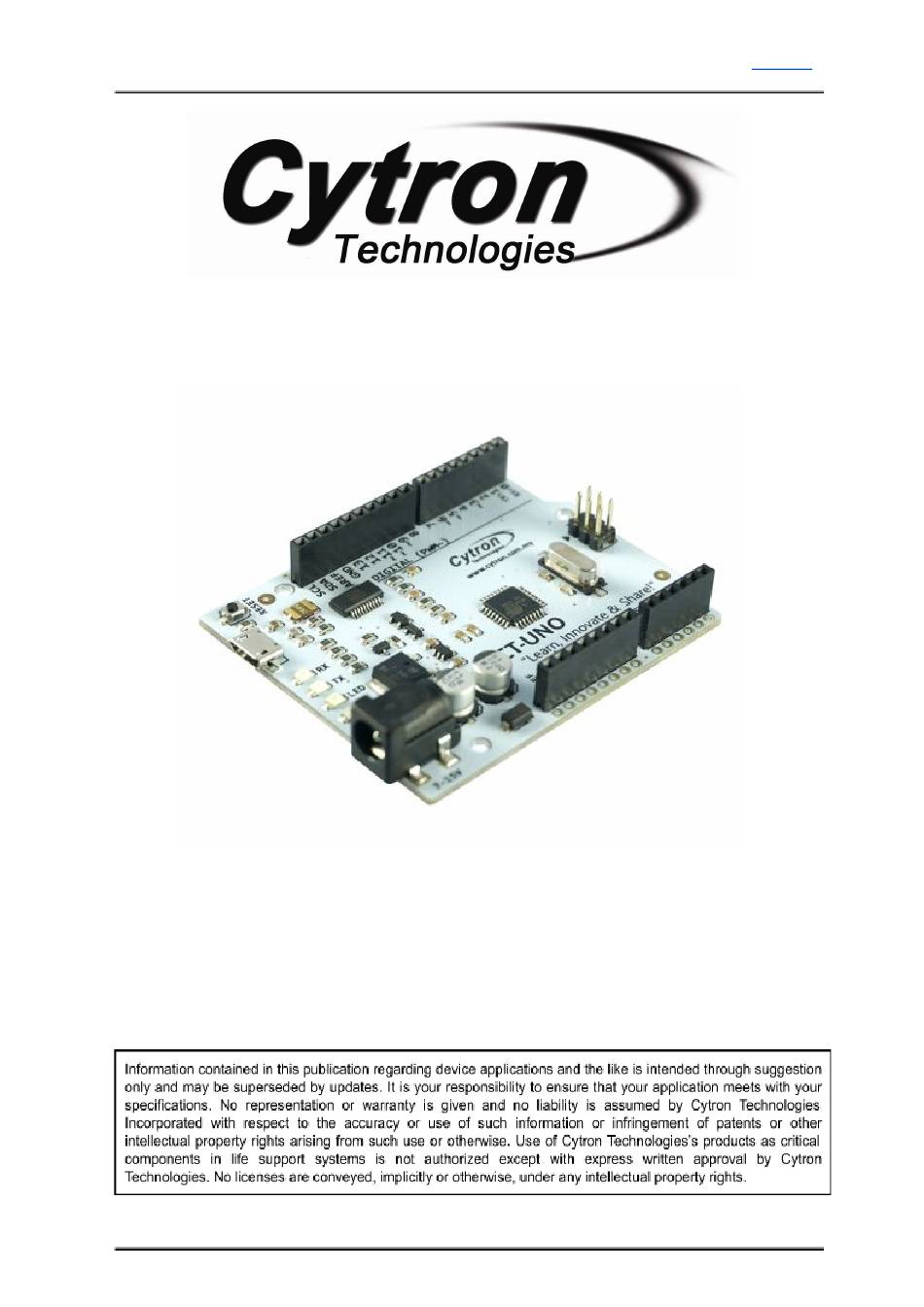

- Page 1 ROBOT . HEAD to TOE P roduct User’s Manual – C T-UNO CT-UNO CT UNO (Arduino Uno Compatible) User's Manual V1.0 Nov 2014 Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved...
- Page 2 ROBOT . HEAD to TOE P roduct User’s Manual – C T-UNO INDEX Introduction Packing List Product Specification Dimension Board Layout Hardware Installation Getting Started Warranty Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved...
- Page 3 6 Analog inputs, UART, SPI, external interrupts, not to forget the I2C too. The SDA, SCL and IOREF pins which being broken out on UNO R3 are on CT-UNO too. We has also populated the ISP header pins (SPI and power). With this, CT-UNO will be compatible with all Arduino UNO's shield.
-
Page 4: Packing List
s ales@cytron.com.my immediately. CT-UNO comes with: ● 1 x C T-UNO board. Optional add-on: ● 12V 2A AC to DC Adapter ● USB Micro B cable Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved... -
Page 5: Product Specification
Input Voltage via Adapter (Limits) I ( from on-board 5V Voltage regulator)* M AX (5V) I ( from on-board 3.3V Voltage regulator) M AX (3.3V) * With Vin at 12V Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved... - Page 6 ROBOT . HEAD to TOE P roduct User’s Manual – C T-UNO 4. DIMENSION Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved...
-
Page 7: Board Layout
Micro USB B Type Connector (Female) RX LED Indicator (Serial) TX LED Indicator (Serial) Programmable LED Power LED Indicator Adapter Socket (2.1mm) Extra Pads Arduino R3 Standard Header ISP Header Pin Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved... - Page 8 DC power adaptor socket for user to plug in DC adapter. The input voltage should be ranged from 7 to 15V. Extra Pads This extra pad allow CT-UNO to be stacked on strip/donut board. Arduino R3 Standard Header CT-UNO can be stacked with Arduino shield.
-
Page 9: Hardware Installation
1 2V power adapter U SB cable . If CT-UNO is powered using both supply (12V adapter and USB cable) it will automatically choose power from adapter. ● CT-UNO is being powered using adapter. ● CT-UNO is being powered using USB cable. - Page 10 6.2 Downloading bootloader firmware CT-UNO provide ISP for user uploading Arduino Uno bootloader firmware. User can use AVR programmer (e.g. A VR USBasp ) to upload firmware to ATmega328p. Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved...
- Page 11 Below is example L CD Keypad shield stacked onto CT-UNO. ● This is example of wireless remote mobile omni robot that uses CT-UNO, SHIELD-XBEE and FD04A-R2 board. Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved...
- Page 12 (0.1” pitch to pitch) / ● CT-UNO s trip d onut board . User need to solder header pins at outer side (left and right) to stack CT-UNO onto strip/donut board. Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved...
-
Page 13: Getting Started
USB connection to the computer or an external power supply. To start, just connect CT-UNO board to laptop/computer using U SB micro B cable . The PWR LED (green) will light up to indicate the board are being powered. - Page 14 C T-UNO 7.8 Select CT-UNO serial port number Go to T ools -> S erial Port -> select your CT-UNO COM port number. 7.9 Upload the program ● Now, simply click the "Upload" button in the environment. Wait a few seconds - you should see the RX and TX leds on the board flashing.
-
Page 15: Warranty
No. 16, Jalan Industri Ringan Permatang Tinggi 2, Kawasan Industri Ringan Permatang Tinggi, 14100 Simpang Ampat, Penang, Malaysia. Tel: +604 - 504 1878 Fax: +604 - 504 0138 URL: www.cytron.com.my Email: s upport@cytron.com.my sales@cytron.com.my Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved...
