La Sommeliere CVDE46-2 Instructions For Use Manual

Built-in wine cellar
Hide thumbs Also See for CVDE46-2:
Table of Contents

Advertisement

Quick Links

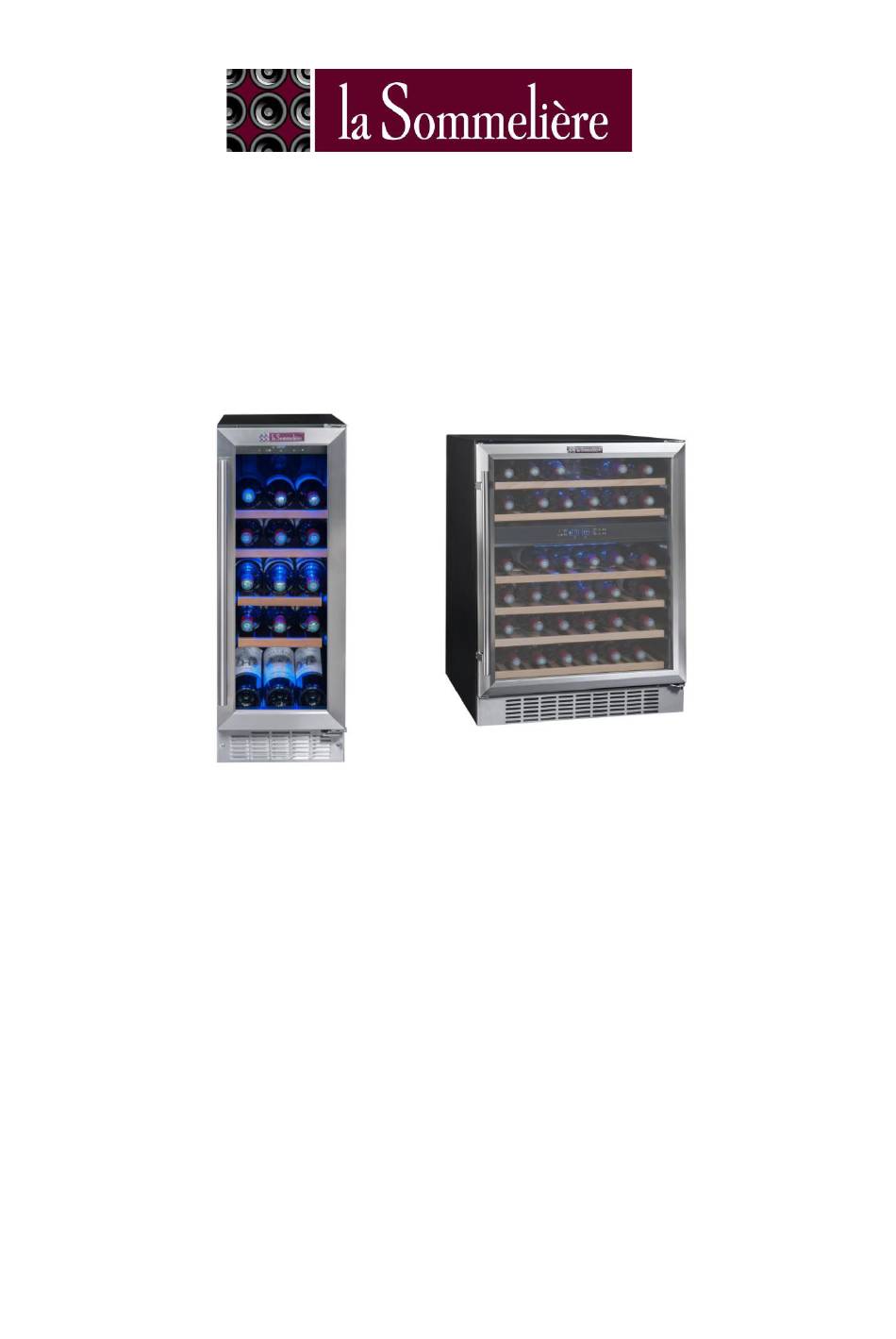

INSTRUCTION FOR USE
Built-in wine cellar
Model Number: CVDE46-2 – CVDE21
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CVDE46-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for La Sommeliere CVDE46-2

Summary of Contents for La Sommeliere CVDE46-2

  • Page 1 INSTRUCTION FOR USE Built-in wine cellar Model Number: CVDE46-2 – CVDE21...

  • Page 2: General Safety Instructions

    Before use, please read and follow the safety rules and operating instructions in this manual. Firstly, we would like to thank you for purchasing an LA SOMMMELIERE product and hope that this appliance fully lives up to your expectations. This appliance enables you to bring your bottles to service temperature (depending on the bottles) thanks to its wide adjustment range.
  • Page 3 General safety CAUTION — This appliance is designed for home use. CAUTION — Never store inflammable substances, such as aerosols, inside the appliance, as they could leak or release fluids. CAUTION — A damaged power cable should be immediately replaced by the manufacturer or by a qualified retailer, in order to avoid any risk of electric shock.
  • Page 4 ▪ The power socket must be easily accessible but out of reach of children. In case of doubt, contact your installation technician Daily utilisation ▪ Do not store inflammable substances or fluids inside the appliance. This would create a risk of explosion.
  • Page 5 POWER SAVING ▪ To limit the electricity consumption of your appliance: ▪ Install it in an appropriate place (see “Installing your appliance”). ▪ Leave the doors open as little time as possible. ▪ To ensure that the appliance operates properly, clean the condenser regularly (see “Routine servicing of your appliance”).

  • Page 6: Safety Instructions

    R600a Safety instructions Caution: Do not obstruct the ventilation grills on the appliance. Caution: Do not store explosive substances, such as aerosol cans containing an inflammable propellant, in the appliance. Caution: Do not damage the refrigerating circuit in the appliance. Caution: The refrigerating units use isobutane (R600a), and should not be placed close to ignition sources (for...

  • Page 7: Installation Instructions

    2. INSTALLATION INSTRUCTIONS When installing your cellar, leave a space of 0.5 cm on the side and above the unit for air circulation and a space of 3 cm between the rear of the product and the wall.
  • Page 8 ➢ Handle installation instruction ▪ Open the door and carefully pull out the door gasket only at the area where the handle is to be installed. ▪ You will be able to see two screws inside the door. ▪ Align the handle with the screws and tighten using a head screwdriver until the handle is flush against the door frame.
  • Page 9 2. Pull down to remove the glass door and place it on a padded surface to prevent scratching it. 3. Remove the two screws under the left lower corner of it. Then install and tighten them at the opposite designated holes. 4.

  • Page 10: Operating Your Wine Cooler

    6. Locate the glass door to the designated position making sure that the door shaft enters the door hole at the left upper corner of the glass door. Install the two screws that are used to connect the left lower hinge with the glass door and tighten them before the door is leveled. Then remove the handle from the left side and install it on the right side of the door.
  • Page 11 Setting the Temperature Control for CVDE21 – SIMPLE ZONE You can adjust temperatures from 5 to 18°. This is the same use instructions as CVDE46-2 NOTE: ▪ If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restarting the unit.

  • Page 12: Water Tray

    ➢ Interior Light You can turn the interior light ON or OFF by pushing the button marked with the “bulb” symbol ▪ In order to save energy consumption, the light will be automatically off after 10 minutes when turned on. ▪...
  • Page 13 ➢ Cleaning Your Wine Cooler • Turn off the power, unplug the appliance, and remove all items including shelves and rack. • Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water. •...

  • Page 14: Troubleshooting Guide

    5. TROUBLESHOOTING GUIDE You can solve many common Wine Cooler problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer. PROBLEM POSSIBLE CAUSE Wine Cooler does not operate.
  • Page 15 As we continuously improve our products for the benefit of our customers, we reserve the right to modify technical characteristics without notice. Warranties for LA SOMMELIERE brand products are offered exclusively by selected retailers. No part of these instructions may be considered as a supplementary guarantee.
  • Page 16 EUROPEAN DATA SHEET according to the regulations (UE) N°1060/2010 SERVICE WINE CABINET BRAND LA SOMMELIERE COMMERCIAL REFERENCE CVDE46-2 CVDE21 POWER SUPPLY 220-240 V / 50 Hz PRODUCT DIMENSIONS (W x D x H) 595 x 572 x 828 mm 290 x 570 x 820 mm...

This manual is also suitable for:

Cvde21
