A742
NAS222-11
AN365-428
AN960-416
(Z REO
UNDER SCREW HEAD
4 REQ
PIPER AZTEC SERVICE MANUAL
A740
A736
NAS222-12
AN365-428
AN960-416
(2 REO
UNDER SCREW HEAC
4 REO
r
N
e
SKETCH A
SKETCH B

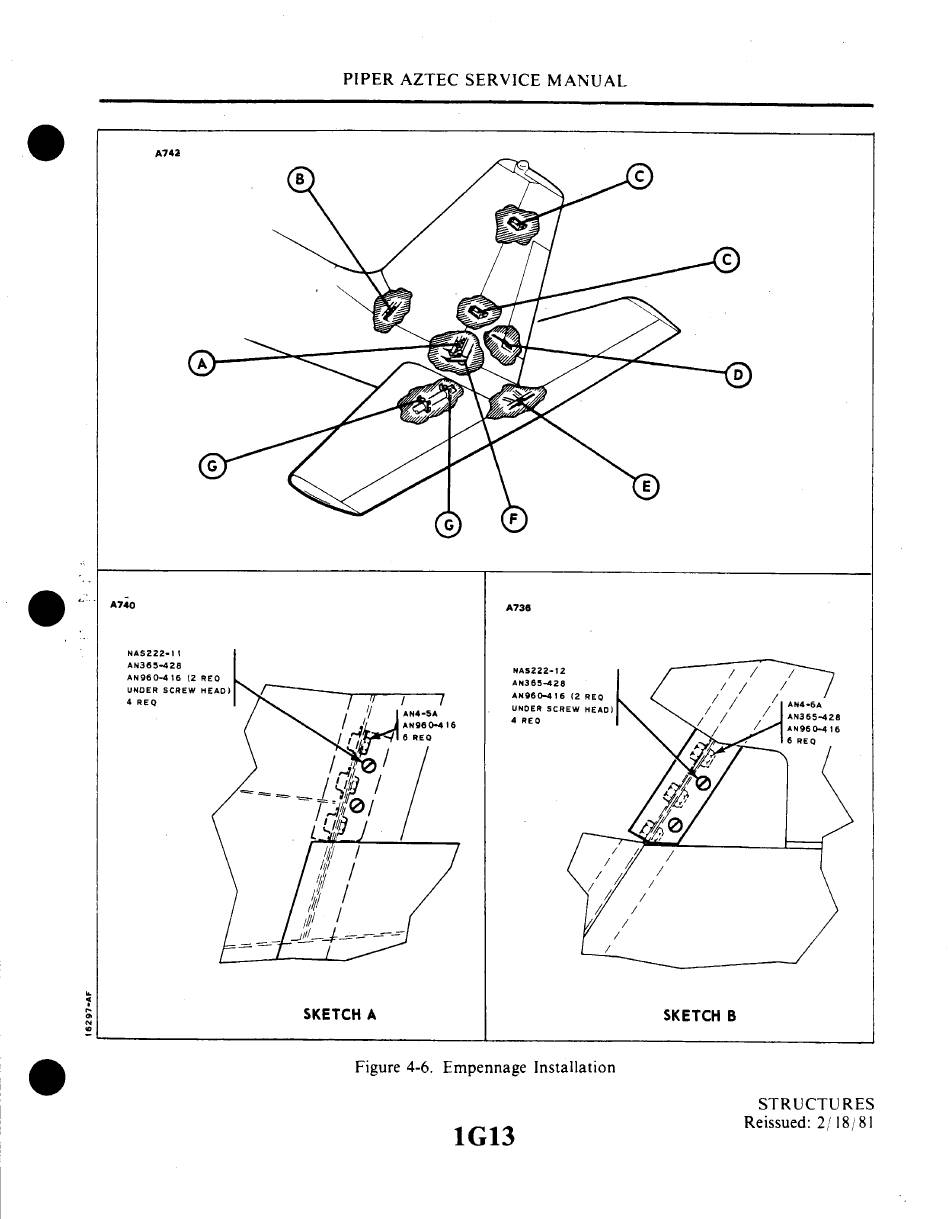

Figure 4-6. Empennage Installation
STRUCTURES
Reissued: 2/ 18/81
1G13
