Product Manual
DL7543 TORQUE
SETTING TOOL KIT
Wallgate Ltd.
Crow Lane, Wilton,
Salisbury, Wiltshire,
SP2 0HB, England

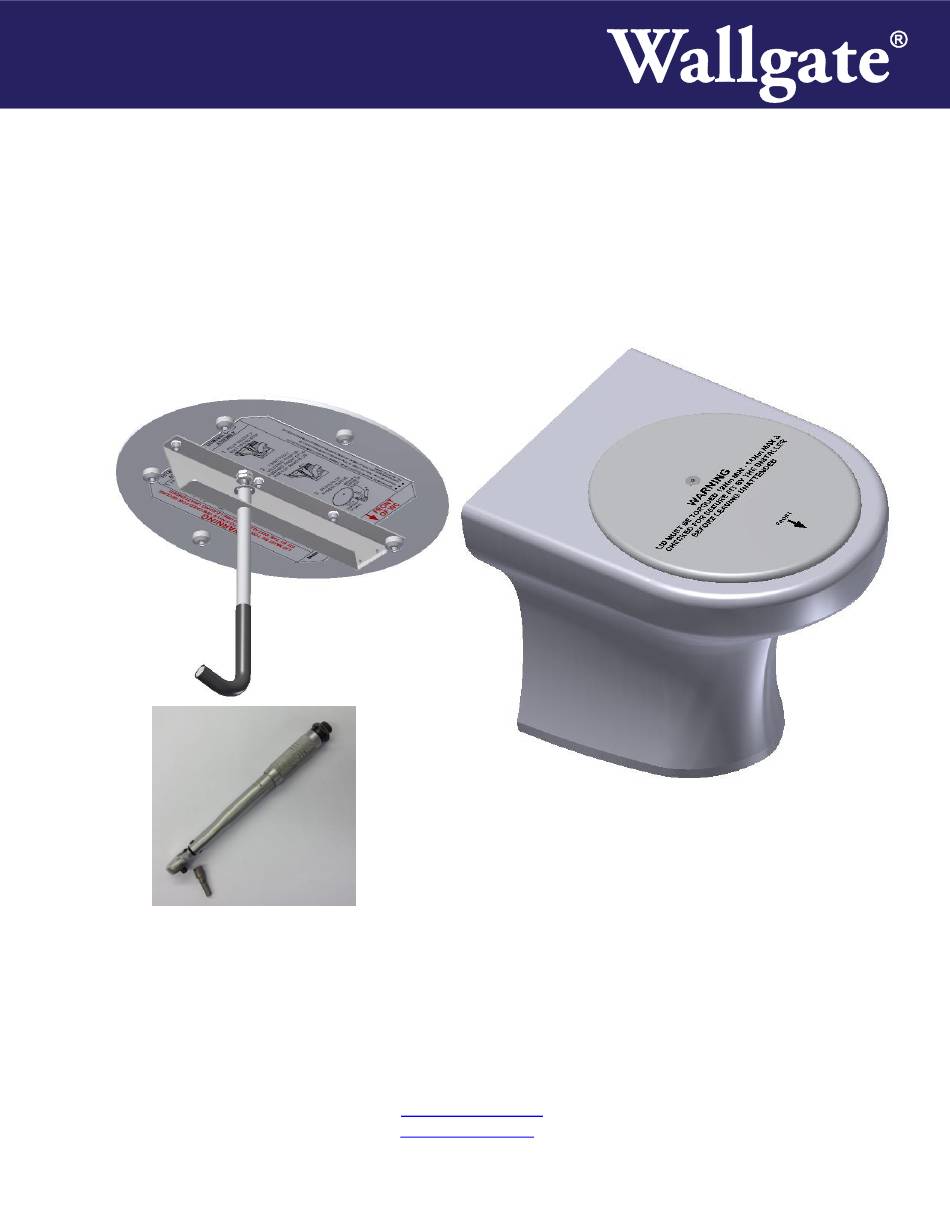

CWC-LOK-LID
Lockable WC Lid
tel:
+44 (0) 1722 744594
fax:
+44 (0) 1722 742096
email:
sales@wallgate.com
web:
www.wallgate.com
Wallgate®
PRODUCT MANUAL revision 3
ORIGINAL INSTRUCTIONS
© 2019 Wallgate Ltd.
Advertisement
Table of Contents
Summary of Contents for Wallgate CWC-LOK-LID
-
Page 1: Wallgate® Product Manual Revision 2 Original Instructions © 2014Wallgate Ltd
DL7543 TORQUE SETTING TOOL KIT Wallgate® Wallgate Ltd. tel: +44 (0) 1722 744594 PRODUCT MANUAL revision 3 Crow Lane, Wilton, fax: +44 (0) 1722 742096 ORIGINAL INSTRUCTIONS Salisbury, Wiltshire, email: sales@wallgate.com SP2 0HB, England web: www.wallgate.com © 2019 Wallgate Ltd. - Page 2 Wallgate Product Manual CWC-LOK-LID 2019 For technical advice, or further information on Wallgate products, contact our Customer Services Department. Tel: (01722) 744594 Fax: (01722) 742096/742933 (Service) Email: Service@wallgate.com Sales@wallgate.com www.wallgate.com Crow Lane, Wilton, Salisbury, Wiltshire, SP2 OHB, England. |Revision 5.0...
-
Page 3: Table Of Contents
Product Manual CWC-LOK-LID Wallgate 2019 Table of Contents Wallgate® PRODUCT MANUAL revision 2 ORIGINAL INSTRUCTIONS © 2014Wallgate Ltd....1 Disclaimer .............................. 4 Conventions ............................5 Warning ............................5 Note .............................. 5 Numbered procedures ........................5 Bullet lists ............................5 Menu items ........................... -
Page 4: Disclaimer
Wallgate Product Manual CWC-LOK-LID 2019 1. Disclaimer The specifications of Wallgate products can change without notice because of developments in design and manufacturing. |Revision 5.0... -
Page 5: Conventions
Product Manual CWC-LOK-LID Wallgate 2019 2. Conventions Certain conventions are used in this manual to make it easier to read and understand. They are given in the sections below. 2.1 Warning A warning with white text on a red background is used to give information about hazards that can cause injury or death. -
Page 6: Glossary
Wallgate Product Manual CWC-LOK-LID 2019 3. Glossary The glossary lists all words, abbreviations and technical terminology used in this manual, along with a short description of these terms. Term Description ‘J’ Bolt The ‘J’ Bolt refers to the long rod protruding below the lid ending in a hook feature. -
Page 7: Overview
Locking and unlocking is via a single anti-tamper captive lock bolt recessed on the top face of the cover plate. A torque wrench, part number DL7543 available from Wallgate, is used to tighten the lock bolt to the required torque which secures and locks the lid in position. -
Page 8: Installation And Commissioning
Torque Wrench & 6mm A/F bit capable of measuring up to 14Nm torque. NOTE: Accessory: Torque Wrench Kit, part no. DL7543 may be supplied. This item is ordered separately, contact the Wallgate sales desk for more information. 5.2 Lockable Lid Preparation 5.2.1... -
Page 9: Installing The Lid Assembly To Wc
Product Manual CWC-LOK-LID Wallgate 2019 Figures 1 & 2 Lockable Lid preparation 5.3 Installing the Lid assembly to WC. 5.3.1 Lid installation guidelines 1. Insuring the arrow symbol on the Lid is facing forward towards the front of the WC Insert the Lid assembly into the WC pan as indicated at Fig. -
Page 10: Installed Maintenance Instructions
Wallgate Product Manual CWC-LOK-LID 2019 Figures 3 & 4 Installation of Lockable Lid assembly to WC 5.4 Installed maintenance Instructions With the Lockable Lid fitted to WC, on a regular basis inspect the installed Lid assembly for secure fit & cleanliness. -
Page 11: Removal And Stowage
Product Manual CWC-LOK-LID Wallgate 2019 6. Removal and stowage 6.1 Removal of Lid assembly from WC 6.1.1 Lid removal guidelines (Note, removal is the reverse of the installing procedure) 1 Using 6mm A/F Allen key, turn the recessed lock bolt CCW until ‘J’ bolt is fully extended to end stop as indicated at Fig. -
Page 12: Sleeve Replacement & Stowage Of Lid, Guidelines
Wallgate Product Manual CWC-LOK-LID 2019 6.2.1 Sleeve replacement & Stowage of Lid, guidelines WARNING! When handling the Lockable Lid assembly it is advisable to practice good hygiene & infection control & suitable PPE should be used. Prior to stowage of Lockable Lid assembly, with the Lid resting face down & ‘J’ bolt protruding above the Lid in its fully extended out end stop position. -
Page 13: Technical Specification & Spares
Product Manual CWC-LOK-LID Wallgate 2019 7. Technical specification & spares 7.1 Technical specification Table 1. Technical specifications: Weight 3.4 Kg Dimensions Lid: 380mm x 316mm. ‘J’ bolt max. height from face of Lid: 315mm. Load baring Materials Lid: Tensile aluminium alloy...
