HENNING MSM12 V3 Manual

Mobile rope load measurement for sensors lsm 1, lsm 2 , lsm xl, lsm 2000, lsm belt
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MSM 12
Mobile Rope Load Measurement
Manual
for sensors LSM 1, LSM 2 , LSM XL, LSM 2000
LSM Belt

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSM12 V3 and is the answer not in the manual?

Questions and answers

Related Manuals for HENNING MSM12 V3

Summary of Contents for HENNING MSM12 V3

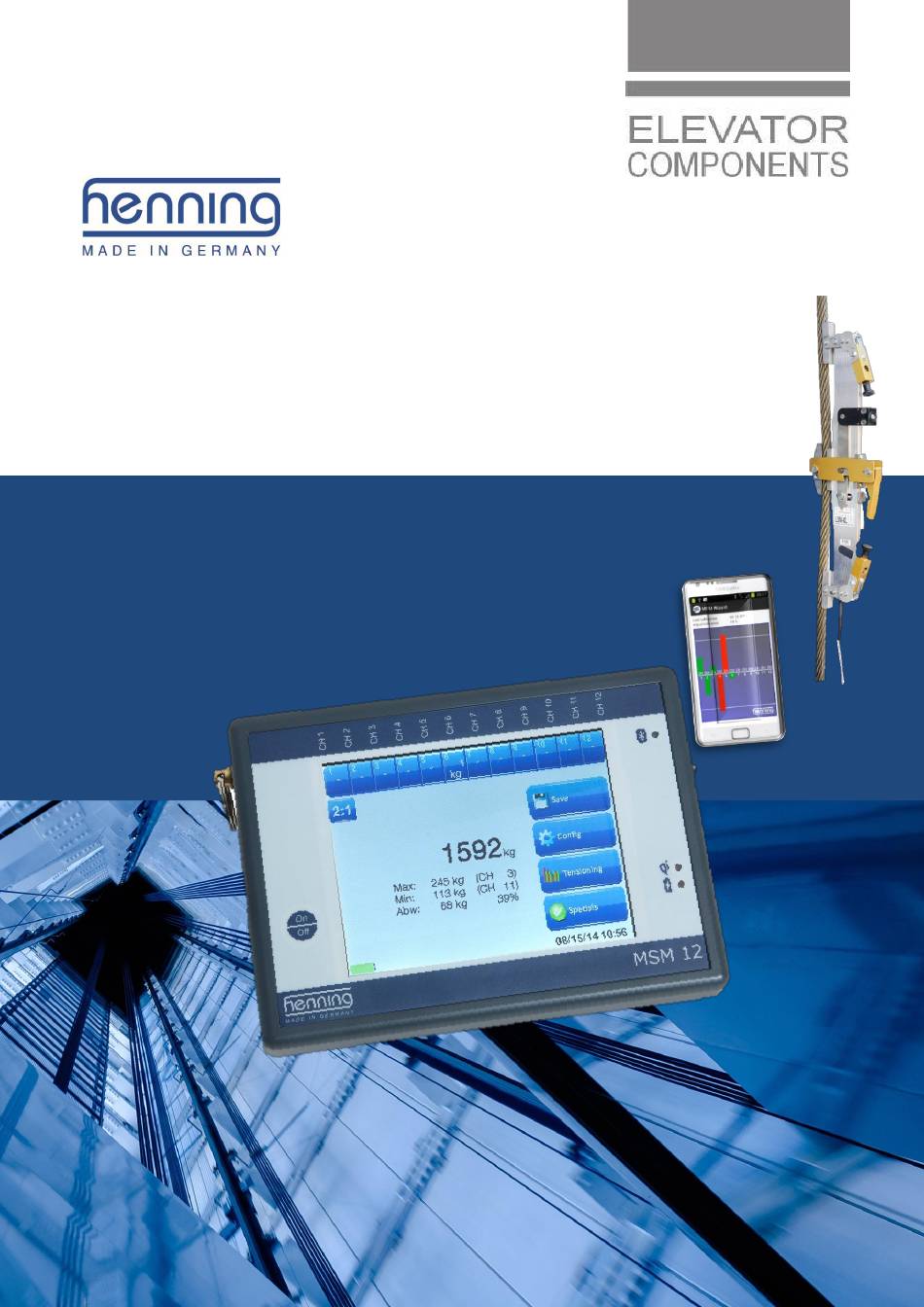

  • Page 1 MSM 12 Mobile Rope Load Measurement Manual for sensors LSM 1, LSM 2 , LSM XL, LSM 2000 LSM Belt...
  • Page 2 © Copyright 2018 by Henning GmbH & Co KG, Loher Str. 4, 58332 Schwelm Warranty This manual has been drawn up by Henning GmbH & Co. KG to the best of their knowledge. All technical statements have been carefully established an checked. They correspond to the state of the art.

  • Page 3: Table Of Contents

    7.A.2 Positioning of Sensors depending on Suspension Type 7.A.3 Rope Adjustment 7.A.4 Friction / Determination of Weight Installation of Sensors LSM1 und LSM2 30-31 Installation of Sensors LSM-XL 32-33 Installation of Sensors LSM-BELT  page 3 19/02/2019 Henning GmbH & Co. KG...

  • Page 4: Safety And Shipping Instruction

    1 Safety and Shipping Instruction The Evaluation units MSM12 V3 are equiped with lithium - ion batteries. Safety Instructions  Lithium-ion batteries react violently when coming into contact with water (fully charged ones in particular)  Do not store Li-Ion batteries near combustible material Do not overcharge Li-Ion batteries...

  • Page 5: Control Elements

    Sensor Connections: Bandwidth: 30 Hz Sample frequency: 100 Hz Connections: USB, BlueTooth (optional) Protection Class: IP00 SKIII (SELV) L x W x H (mm): 190 x 138 x 46 Weight: 650 g  page 5 19/02/2019 Henning GmbH & Co. KG...

  • Page 6: List Of Available Sensors

    Breaking Load 1200 kg, 2640 lbs L x W x H (mm) 178 x 58 x 16 Length of Connecting Cable 0,8 m, 31,5 inch Temperature Range 0 °C - 70 °C  page 6 19/02/2019 Henning GmbH & Co. KG...
  • Page 7 Breaking Load 2000 kg, 4400 lbs L x W x H (mm) 230 x 120 x 82 Length of Connecting Cable 0,8 m, 31,5 inch Temperature Range 0 °C - 70 °C  page 7 19/02/2019 Henning GmbH & Co. KG...

  • Page 8: Operating The Evaluation Unit Msm12

    If positioned correctly, the charge control will change into active mode and the Qi-charge indicator will be activated after ca. 2 seconds. Charging will take up to 9 hours.  page 8 19/02/2019 Henning GmbH & Co. KG...

  • Page 9: Starting The Device

    To switch off please press the on/off switch for minimum 3 seconds again. The device switches off and the display lighting is extinguished. If the batteries are run-down, the MSM12 switches off automatically.  page 9 19/02/2019 Henning GmbH & Co. KG...

  • Page 10: Main Display

    The individual sensor display shows the measured load of each connected rope load sensor. Please note: The load in the status bar on top will not be calculated on the basis of the selected suspension ratio.  page 10 19/02/2019 Henning GmbH & Co. KG...
  • Page 11 245 kg, i. e. 68 kg (absolute) or 39 % more load(rounding errors possible). The calibration warning will be displayed, if the last calibration of the evaluation unit has been one year ago (or longer). Save Configuration Tensoning  page 11 19/02/2019 Henning GmbH & Co. KG...

  • Page 12: Sensor Information

    4 mm – 10 mm ( inch – - LSM2 diameter inch) 9,5 mm – 24 mm ( inch – - LSM-XL diameter inch) - LSM-BELT for belts 30 mm and 60 mm  page 12 19/02/2019 Henning GmbH & Co. KG...

  • Page 13: Choosing Suspension Type

    As soon as this key is activated, the data of all connected rope load sensors is evaluated; the sensor- and load-data is being saved in the evaluation unit. One can allocate a project- ID at this point (see also 6.E.3). Reports can be issued via the PC-software.  page 13 19/02/2019 Henning GmbH & Co. KG...

  • Page 14: Continuous Measurements (Optional)

    Important Notice: during the measurement no sensors may be removed oder added! The data is being saved in the evaluation unit via “allocation of project-ID” and reports can be issued with the PC-software.  page 14 19/02/2019 Henning GmbH & Co. KG...

  • Page 15: Allocation Of Project-Id

    Q W E R T Z U I O P Ü + A S D F G H J K L Ö Ä # < Y X C V B N M , . Cancel Save  page 15 19/02/2019 Henning GmbH & Co. KG...

  • Page 16: F Configuration

    The settings are saved as soon as the key “save” is pressed. If a new language has been chosen, the unit will reboot automatically. Please see the following chapter for a definition of the key “Unit Info”.  page 16 19/02/2019 Henning GmbH & Co. KG...

  • Page 17: Unit Info

    (rope 4 in the illustration). The rope load wizard will only be activated when two or more sensors are connected.  page 17 19/02/2019 Henning GmbH & Co. KG...
  • Page 18 As soon as you leave the wizzard by pressing the „save“ key, the data is stored in the unit and you will be able to allocate a project-ID (see also 6.E.3). Data can be processed utilizing the PC-software and reports can be issued. Cancel Save  page 18 19/02/2019 Henning GmbH & Co. KG...

  • Page 19: H Special Functions

    In this part of the menu you will find the software-options available in this particular evalua- tion-unit. 6.H.1 Continuous Measurements (optional) Please see chapter 6.E.2 6.H.2 Counterweight Compensation (optional) This software option allows one to determine the counterweight compensation fast and com- fortable.  page 19 19/02/2019 Henning GmbH & Co. KG...
  • Page 20 [Compensation-Factor] = ([Counterweight] – [Car Weight]) / [Rated load] As soon as you leave the dialogue by pressing the key “save”, you can allocate an additional measurement-ID permanently in the unit and issue reports via the PC-software.  page 20 19/02/2019 Henning GmbH & Co. KG...

  • Page 21: Syncmaster

    Bluetooth adapter for your PC is required. If the computer is not equipped with such an adapter, you can utilize Henning’s optional Bluetooth adapter. Follow the instructions of Win- dows 7 (and follow up versions) operating system. These instructions will appear as soon as you have connected the Bluetooth adapter to your computer.
  • Page 22 Henning and follow the instructions of the installation program. The operating instructions of the Bluetooth adapter are also found on the CD. In order to utilize the wireless connection between the evaluation unit MSM12 and the com- puter the MSM12 must be logged onto the PC. Please find below a description of the pro- cedure under Windows.

  • Page 23: J Bluetooth Connection With Android Smartphone

    Please note: firmwareupdates are only possible via USB connection. 6.J Bluetooth Connection with Android Smartphone Search for the Henning Android App with the keyword “MSM-Wizard” in the Google playstore (http://play.google.com). After installing the app, the wizard will guide you through the necessary steps for establishing a connection between the evaluation unit MSM12 and your smartphone / tablet.
  • Page 24  page 24 19/02/2019 Henning GmbH & Co. KG...

  • Page 25: Operating The Sensors

    Each LSM sensor features cable with USB-A connector to connect them to the evaluation unit MSM12. The sensors have no other connecting options. Handling To ensure that there is always good electrical contact please keep the sensor plugs free from dust, liquids etc..  page 25 19/02/2019 Henning GmbH & Co. KG...

  • Page 26: Positioning Of Sensors On The Rope

    > 200 mm < 200 mm Attention: for an accurate measurement, the sensor may be clamped only once onto a particular space in a rope.  page 26 19/02/2019 Henning GmbH & Co. KG...

  • Page 27: Positioning Of Sensors Depending On Suspension Type

    7.A.2 Positioning of Sensors depending on Suspension Type CABIN COUNTERWEIGHT 1:1 Suspension floor floor  300  300 floor floor floor floor  page 27 19/02/2019 Henning GmbH & Co. KG...
  • Page 28 CABIN COUNTERWEIGHT 1:1 Suspension floor floor floor floor floor floor  page 28 19/02/2019 Henning GmbH & Co. KG...

  • Page 29: Rope Adjustment

    2:1 Suspension MEASUREMENT CABIN floor floor  300 floor floor floor floor  page 29 19/02/2019 Henning GmbH & Co. KG...
  • Page 30 2:1 Suspension MEASUREMENT COUNTERWEIGHT floor floor floor floor floor floor  page 30 19/02/2019 Henning GmbH & Co. KG...
  • Page 31 1:1 Suspension Compensation chain CABIN COUNTERWEIGHT floor floor floor floor  300 Lowest floor floor  compensation chain is not tightend!  compensation chain is not tightend!  page 31 19/02/2019 Henning GmbH & Co. KG...
  • Page 32 Step 1 1:1 Suspension with fixing weight MEASUREMENT COMPENSATIONROPE / CABIN floor floor floor  page 32 19/02/2019 Henning GmbH & Co. KG...
  • Page 33 Step 2 1:1 Suspension with fixing weight MEASUREMENT COMPENSATIONROPE/COUNTERWEIGHT floor floor floor  page 33 19/02/2019 Henning GmbH & Co. KG...
  • Page 34 Step 3 1:1 Suspension with fixing weight MEASUREMENT COMPENSATIONROPE floor floor floor  page 34 19/02/2019 Henning GmbH & Co. KG...

  • Page 35: Friction / Determination Of Weight

    Attention: In the case of multi-suspensions, please take extra special care that the sensors are not overrun during the measuring travels!  page 35 19/02/2019 Henning GmbH & Co. KG...

  • Page 36: B Installation Of Sensors Lsm1 Und Lsm2

    2. Now close the clamp lever and taking care that the cable still runs correctly in the sensor groove. 3. Connect the sensor LSM to the evaluation unit MSM12 via the USB cable. Step 1 Step 2 Step 3  page 36 19/02/2019 Henning GmbH & Co. KG...
  • Page 37 O-ring, the clamping force is wrong and the installation should be repeated. The following pictures show correctly and incorrectly adjusted rope load sensors: Incorrectly adjusted: Correctly adjusted:  page 37 19/02/2019 Henning GmbH & Co. KG...

  • Page 38: C Installation Of Sensors Lsm-Xl

    O-ring will be visible. If this is not the case, open lever 2 again and adjust the clamping force by means of the adjustment screw 4. Close lever 2 again and close both levers 1.  page 38 19/02/2019 Henning GmbH & Co. KG...
  • Page 39 Align red dot on plug with red dot on receptacle of the Sensor. Forcing the plug in or out will damage pins and severely damage sensor which will require unnecessary/costly repairs  page 39 19/02/2019 Henning GmbH & Co. KG...

  • Page 40: D Installation Of Sensors Lsm-Belt

    O-ring the sensor is incorrectly mounted. Incorrectly adjusted: Correctly adjusted: IMPORTANT: DO NOT ADJUST SCREWS AS IT WILL VOID CALIBRATION OF SENSOR! Belt versions: OTIS SCHINDLER CONTITECH  page 40 19/02/2019 Henning GmbH & Co. KG...
  • Page 41 Henning GmbH & Co. KG Loher Str. 4 58332 Schwelm Deutschland FON: 02336 / 9 29 8 – 0 02336 / 9 29 8 – 100 FAX: eMail: info@henning-gmbh.de URL : http://www.henning-gmbh.de Service-Hotline: 02336 / 9 29 8 - 232 ...
