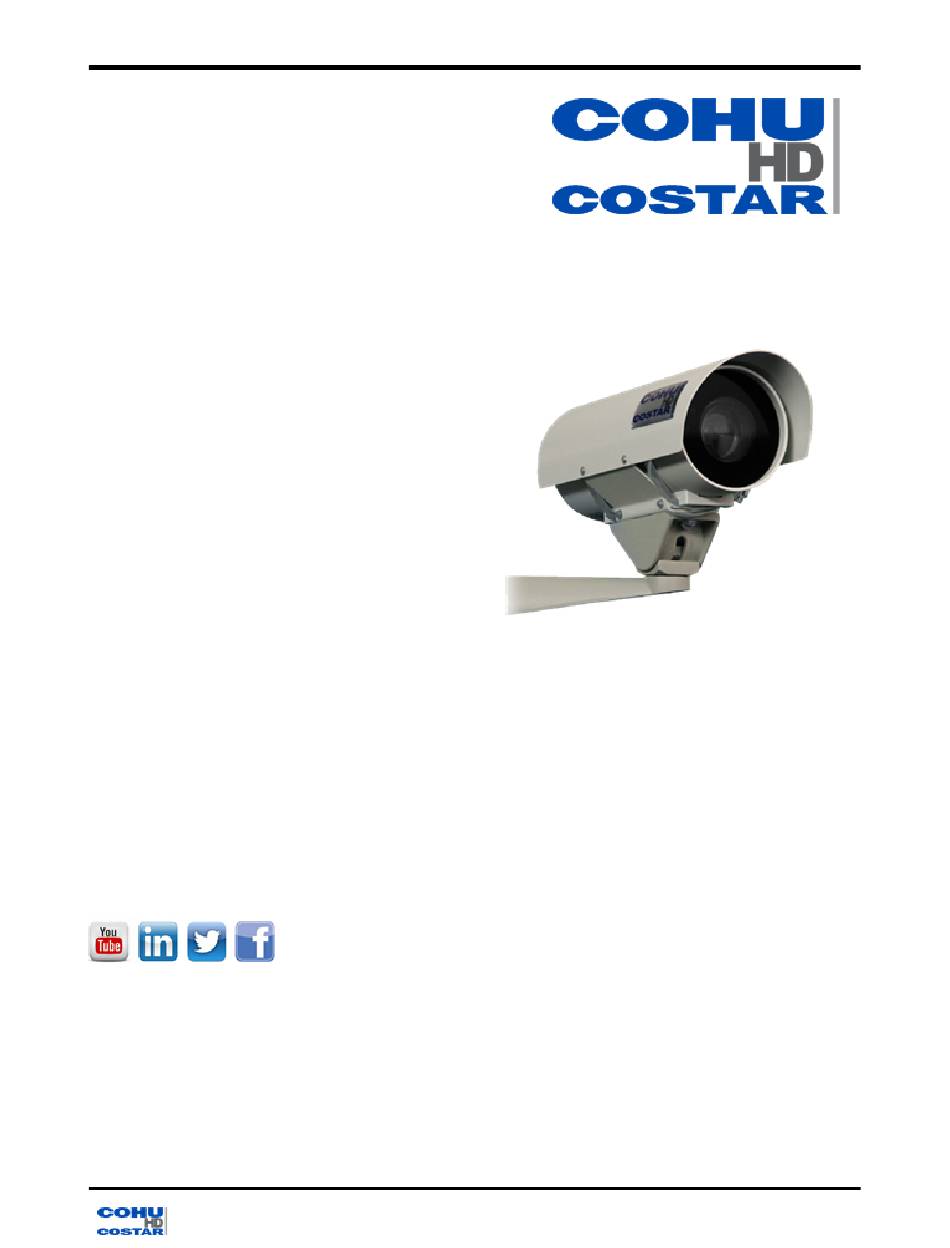

- Page 1 Installation Manual 3430HD Series Installation Manual 9991000A youtube.com/CohuHD LinkedIn.com/company/CohuHD twitter.com/CohuHD facebook.com/CohuHD CohuHD.com (858) 391-1800 © CohuHD Costar, LLC reserves the right to change specifications without notice...
-
Page 3: Table Of Contents
Installation Manual Table of Contents 1.0 General Information 1.1 About This Document 1.2 Additional Information and Documents Related to the Camera System 1.3 Copyright/Intellectual Property Rights Statement 1.4 FCC Compliance 1.5 Support Services 2.0 Returns 2.1 Instructions 2.2 Shipment 3.0 Safety 3.1 Instructions 3.2 Grounding 4.0 Package Contents... -
Page 5: General Information
1.1 About This Document This document contains information on how to install and maintain the 3430HD Series. Please read this manual carefully prior to installation to prevent any accidental damage or misuse. The manual is available from the CohuHD website at http://www.cohuhd.com/Support/Product-Documentation. -
Page 6: Returns
Installation Manual 2.0 Returns 2.0 Returns 2.1 Instructions This item was thoroughly tested and carefully packed at the factory prior to shipping. Upon acceptance by the carrier, the carrier assumes responsibility for the item’s safe arrival. If you receive the item in a damaged condition, apparent or concealed, a claim for damage must be made to the carrier. -
Page 7: Safety
Installation Manual 3.0 Safety 3.0 Safety 3.1 Instructions Warning: Do not remove the covers or housing. There are no user-serviceable parts inside. Warning: The Schrader Valves on the camera head's back plate are for factory use only. Do not attempt to add any gas to the camera head. -
Page 8: Grounding
Installation Manual 3.0 Safety 3.2 Grounding To provide protection against electrical surges induced by lightning, static charges, or any other cause, the camera and cabling system must be properly grounded to earth. For installation on a building, the camera must be bonded (that is, provided with a low impedance connection) to the building’s structural earth ground system. -
Page 9: Package Contents
Installation Manual 4.0 Package Contents 4.0 Package Contents Upon opening of the products shipping package, please verify you have received the following items: CohuHD 3430HD Camera System Quantity (2) 1/4-20 x 1/2" Mounting Screws Quick Start Instruction Sheet Note: If you are missing any items, please refer to section "Support Services"... -
Page 10: Product Overview
Installation Manual 5.0 Product Overview 5.0 Product Overview 1. Sunshield 2. Camera Enclosure 3. Heated Glass Faceplate 4. Camera Connector, 18 Pin MS 5. Service Handle 6. Product Label 7. Schrader Valves, Purge Outlet & Fill Inlet 8. Mounting Holes 9. -
Page 11: Factory Defaults
Installation Manual 6.0 Factory Defaults 6.0 Factory Defaults 6.1 Factory Default IP Address and Settings The camera is shipped with the following network settings: IP Address: 192.168.2.150 Subnet Mask: 255.255.255.0 Gateway: 192.168.2.1 6.2 Factory Default User Names and Passwords The camera is shipped with the usernames and passwords shown in the table. Access Level Username Password... -
Page 12: Connections
Installation Manual 7.0 Connections 7.0 Connections 7.1 Camera Connections Function Ethernet TX+/PoE++(–) Ethernet TX–/PoE++(–) Ethernet RX+/PoE++(+) Ethernet RX–/PoE++(+) PoE++(+) PoE++(+) PoE++(–) PoE++(–) Chassis GND... -
Page 13: Manufactured Cables Available
Installation Manual 7.0 Connections 7.2 Manufactured Cables Available Note: Typically, Unshielded cable is used for most projects unless Shielded cable is specified. 819640x Cables - MS to RJ45 Cable Length CohuHD p/n Feet Meters 819640x-001 819640x-005 819640x-010 819640x-025 819640x-055 819640x-100 819640x-150 819640x-200 819640x-250... -
Page 14: Schematics
Installation Manual 7.0 Connections 7.3 Schematics... -
Page 15: Waterproof Coupler Assembly
Installation Manual 7.0 Connections 7.4 Waterproof Coupler Assembly 7.4.1 Parts The coupler comes assembled with extra two large diameter cable seals for thicker cables. The coupler package consists of the following parts: 1. Sealing Nut (2 pcs) 2. Seal a. a. Small diameter cable (2 pcs) – already inserted b. - Page 16 Installation Manual 7.0 Connections 2. If the RJ45 plug has a strain-relief boot, push it away from the RJ45 plug. The strain-relief boot will not be used. 3. Pass the cable through the Sealing Nuts j. 4. Pass the cable through the Sealing Collar †. 5.
- Page 17 Installation Manual 7.0 Connections 10. Now attached the Sealing Nut j to the connected Sealing Collar †. Warning: Tighten by hand and do not over-tighten. Using tools and over-tightening may split the Seal’s notch, which compromises the waterproof assembly. The Seal’s notch should join without a flaw. 11.
-
Page 18: Best Practices
Installation Manual 8.0 Best Practices 8.0 Best Practices The purpose of this section is to provide recommendations regarding the proper selection and use of Surge Protection Devices (SPDs) in CCTV systems. This section is not meant to provide guidance for SPDs selection, placement, and use on incoming utility power. -
Page 19: Installation
Installation Manual 9.0 Installation 9.0 Installation Warning: Always support a camera until it has been fastened securely. Caution: Do not use the cable to support the weight of the camera. 1. Camera Cable (Required - refer to "Manufactured Cables Available" on page 13 for more information) Build your own or purchase manufactured cable from CohuHD. -
Page 20: Typical Wall Mount Installation
Installation Manual 9.0 Installation 9.1 Typical Wall Mount Installation 9.2 Typical Pole Mount Installation... -
Page 21: Camera Urls
Installation Manual 10.0 Camera URLs 10.0 Camera URLs 10.1 Camera Default Passwords User = admin Password = admin 10.2 Network Video Ports Required for RTSP 554: RTSP uses TCP or UDP as its transport protocol. UDP Ports: Self-Determined 10.3 Video Stream Connection URL’s Note: Do not include brackets <... -
Page 22: System Requirements
Installation Manual 11.0 System Requirements 11.0 System Requirements 11.1 Requirements In order to test the camera system you need the following items: Laptop or desktop computer 100/1000BASE-T network card installed in the computer Microsoft Internet Explorer, version 11 or later web browser 100/1000BASE-T network switch or hub Cat5e or Cat 6 cable 11.2 Recommended Computer Specifications... -
Page 23: Optional Accessories
Installation Manual 12.0 Optional Accessories 12.0 Optional Accessories The following optional accessories are recommended by CohuHD and can be purchased with the camera system. Mounts Wall: CohuHD p/n 742011-002 Pole: CohuHD p/n 8189-0 PoE ++ Injectors CohuHD p/n 7412007-003 Field Connectors MS ... -
Page 24: Service
13.0 Service 13.0 Service The 3430HD Series is designed for long-term unattended use and contains no user-serviceable parts. In the event of product failure, the system should be removed from the site and returned to an authorized service center for repair. -
Page 25: Troubleshooting
Installation Manual 13.0 Service 13.2 Troubleshooting The table below identifies possible issues that could occur with the camera, and corrective actions on how to resolve them. If the issue persists after following the corrective actions, contact CohuHD field service department at (858) 391-1800 option 2 for additional assistance. Problem/Symptom Possible Cause Correction... -
Page 26: Warranty
Installation Manual 14.0 Warranty 14.0 Warranty Please refer to the CohuHD website for product warranty information: http://www.cohuhd.com/Support/Warranty. - Page 28 Installation Manual For more information please visit us at: www.CohuHD.com...
