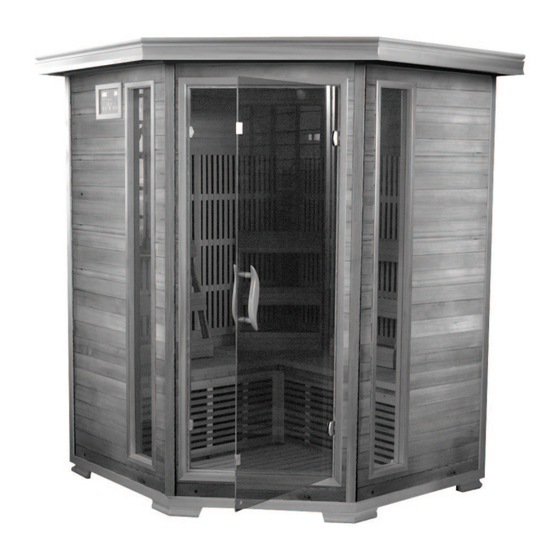

Blue Wave SA1320 Owner's Manual

Three-person & four-person corner saunas
Hide thumbs
Table of Contents

Advertisement

Quick Links

OWNER'S MANUAL
THREE-PERSON
&
FOUR-PERSON
CORNER SAUNAS
SA1312/SA1320 / SA2412DX/SA2420DX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SA1320 and is the answer not in the manual?

Questions and answers

Emily Meyer
April 25, 2025

Do you have a part SAP2418 in stock? One right and one left

0

Subscribe to Our Youtube Channel

Related Manuals for Blue Wave SA1320

Summary of Contents for Blue Wave SA1320

  • Page 1 OWNER’S MANUAL THREE-PERSON & FOUR-PERSON CORNER SAUNAS SA1312/SA1320 / SA2412DX/SA2420DX...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS ASSEMBLY TIPS & WARNINGS PARTS IDENTIFIER ASSEMBLY INSTRUCTIONS 5-10 OPERATION INSTRUCTIONS ENJOYING YOUR SAUNA HEALTH & SAFETY WARNINGS CLEANING & MAINTANENCE TROUBLESHOOTING GUIDE 14-15 REPLACEMENT PARTS 16-19 WARRANTY INFORMATION The information contained in this manual is subject to change without notice.

  • Page 3: Assembly Tips & Warnings

    ASSEMBLY TIPS & WARNINGS • Before you begin, read all assembly instructions and safety warnings carefully. • This sauna requires at least 3 adults to complete assembly. • Remove all of the contents from boxes and verify that you have all of the parts shown on the Parts Identifier before you begin assembly.

  • Page 4: Parts Identifier

    PARTS IDENTIFIER (NOT TO SCALE) * Refer to REPLACEMENT PARTS (PAGE 16-19) to determine the correct part number when ordering replacements.

  • Page 5: Assembly Instructions

    ASSEMBLY INSTRUCTIONS 1. Begin assembly by determining an appropriate location for your sauna – see ASSEMBLY TIPS & WARNINGS for details. Attach the FRONT PANEL to the FLOOR by lining up the FRONT PANEL with the groove in the front of the FLOOR. 2.
  • Page 6 ASSEMBLY INSTRUCTIONS (CONT.) 4. Attach the LEFT BACK PANEL to the FLOOR. Buckle the LEFT BACK PANEL to the LEFT PANEL. 5. Attach the RIGHT BACK PANEL to the FLOOR. Buckle the RIGHT BACK PANEL to the RIGHT PANEL and to the LEFT BACK PANEL. 6.
  • Page 7 ASSEMBLY INSTRUCTIONS (CONT.) 7. Slide the LONG BENCH HEATER PANEL into place between the LEFT BACK PANEL and RIGHT PANEL. Connect the heater plug. Note: It may be necessary to unbuckle the RIGHT PANEL from the RIGHT BACK PANEL in order to slide the LONG BENCH HEATER PANEL into place. 8.
  • Page 8 ASSEMBLY INSTRUCTIONS (CONT.) 10. Attach SHORT BENCH SEAT with 2” SCREWS. 11. Lift the ROOF above the sauna, feeding the control panel and heater cables through the corresponding holes. Feed the cables for the AM/FM CD PLAYER through the hole in the bot- tom of the ROOF.
  • Page 9 ASSEMBLY INSTRUCTIONS (CONT.) 13. Attach the DOOR HANDLE to the GLASS DOOR. 14. Gently pull the cables for the AM/FM CD PLAYER through the opening in the front of the STEREO SHELF. Attach the STEREO SHELF with 3/4” SCREWS. 15. Plug the controller and antenna into the back of the AM/FM CD PLAYER. Note: The red and white cables are used for an optional video player and can be tucked out of the way.

  • Page 10: Assembly Instructions

    ASSEMBLY INSTRUCTIONS (CONT.) 17. Attach the CUP HOLDER(S) with 3/4” SCREWS. Note: A sticker indicates the optimal position for this accessory, but attaching it is optional. Consider the position carefully before driving any screws into the sauna interior. 18. Attach the DOUBLE TOWEL HOOK with 3/4” SCREWS. Note: A sticker indicates the optimal position for this accessory, but attaching it is optional.

  • Page 11: Operation Instructions

    OPERATION INSTRUCTIONS SAUNA CONTROL PANEL Note: The sauna controls are the same for both the interior and exterior Control Panels. 1. Press POWER to turn ON the sauna. 2. Set the desired TEMPERATURE with the (+) and (-) buttons. 3. Press and hold both (+) and (-) to switch between °F (Fahrenheit) and °C (Celsius). 4.

  • Page 12: Enjoying Your Sauna

    ENJOYING YOUR SAUNA 1. Prior to initial use, wipe down all interior surfaces of the sauna with a damp cloth. 2. Turn on the sauna and set temperature to 104° F for one hour to burn off any factory dust. 3.

  • Page 13: Health & Safety Warnings

    HEALTH & SAFETY WARNINGS 1. Review all instructions and warnings before operating your sauna. A sauna is not a toy. Seri- ous injury may result from negligence, intentional misuse and failure to follow safety instruc- tions. 2. Hyperthermia Danger: Hyperthermia occurs when the body absorbs more heat than it can dissipate.

  • Page 14: Cleaning & Maintanence

    CLEANING & MAINTENANCE 1. Always unplug the sauna and allow it to cool down before performing any cleaning or maintenance. 2. Use furniture polish or furniture oil when cleaning the sauna exterior. 3. The sauna interior surfaces should only be wiped down with a damp cloth. Do NOT use chemicals, abrasive cleaners or solvents on the unfinished interior wood.

  • Page 15: Troubleshooting Guide

    TROUBLESHOOTING GUIDE (CONT.) Problem THE CONTROL PANEL DOES NOT WORK 1. Check that all the connections are tight. 2. If the numbers are scrambled or the buttons are unresponsive, replace the Control Panel. Solution 3. If the temperature indicator does not work or reads “--” or “EP”, replace the Control Panel with Tempera- ture Sensor.

  • Page 16: Replacement Parts

    REPLACEMENT PARTS In the event that you need replacement parts, locate your sauna model in the guide below to reference the correct part numbers. It is important to use only the replacement parts specified by the manufacturer. The use of unauthorized substitutes may damage your sauna or cause electrical hazards resulting in injury or fire. SA1312 THREE-PERSON CEDAR CORNER SAUNA DESCRIPTION...
  • Page 17 REPLACEMENT PARTS SA1320 FOUR-PERSON CEDAR CORNER SAUNA DESCRIPTION PART NUMBER FRONT PANEL with GLASS DOOR SAP3043 LEFT PANEL SAP3044 LEFT BACK PANEL SAP3045 RIGHT PANEL SAP3046 RIGHT BACK PANEL SAP3047 ROOF SAP3048 ROOF COVER SAP3049 FLOOR SAP3050 FLOOR HEATER SAP3051...
  • Page 18 REPLACEMENT PARTS SA2412DX THREE-PERSON HEMLOCK CORNER SAUNA DESCRIPTION PART NUMBER FRONT PANEL with GLASS DOOR SAP3113 LEFT PANEL SAP3114 LEFT BACK PANEL SAP3115 RIGHT PANEL SAP3116 RIGHT BACK PANEL SAP3117 ROOF SAP3118 ROOF COVER SAP3026 FLOOR SAP3119 FLOOR HEATER SAP3120 LONG BENCH SEAT SAP3121 LONG BENCH HEATER PANEL...

  • Page 19: Replacement Parts

    REPLACEMENT PARTS SA2420DX FOUR-PERSON HEMLOCK CORNER SAUNA DESCRIPTION PART NUMBER FRONT PANEL with GLASS DOOR SAP3100 LEFT PANEL SAP3101 LEFT BACK PANEL SAP3102 RIGHT PANEL SAP3103 RIGHT BACK PANEL SAP3104 ROOF SAP3105 ROOF COVER SAP3049 FLOOR SAP3106 FLOOR HEATER SAP3107 LONG BENCH SEAT SAP3108 LONG BENCH HEATER PANEL...

  • Page 20: Warranty Information

    This 5-Year Warranty covers the sauna. The radio in your sauna is covered by a limited 1-Year Warranty. 2. Please notify Blue Wave Products in advance of any sauna warranty claim prior to shipping the sauna back. Contact our warranty claim department at warranty@splashnetxpress.com.

This manual is also suitable for:

Sa2412dxSa1312Sa2420dx
