Summary of Contents for Blue Wave SA7003

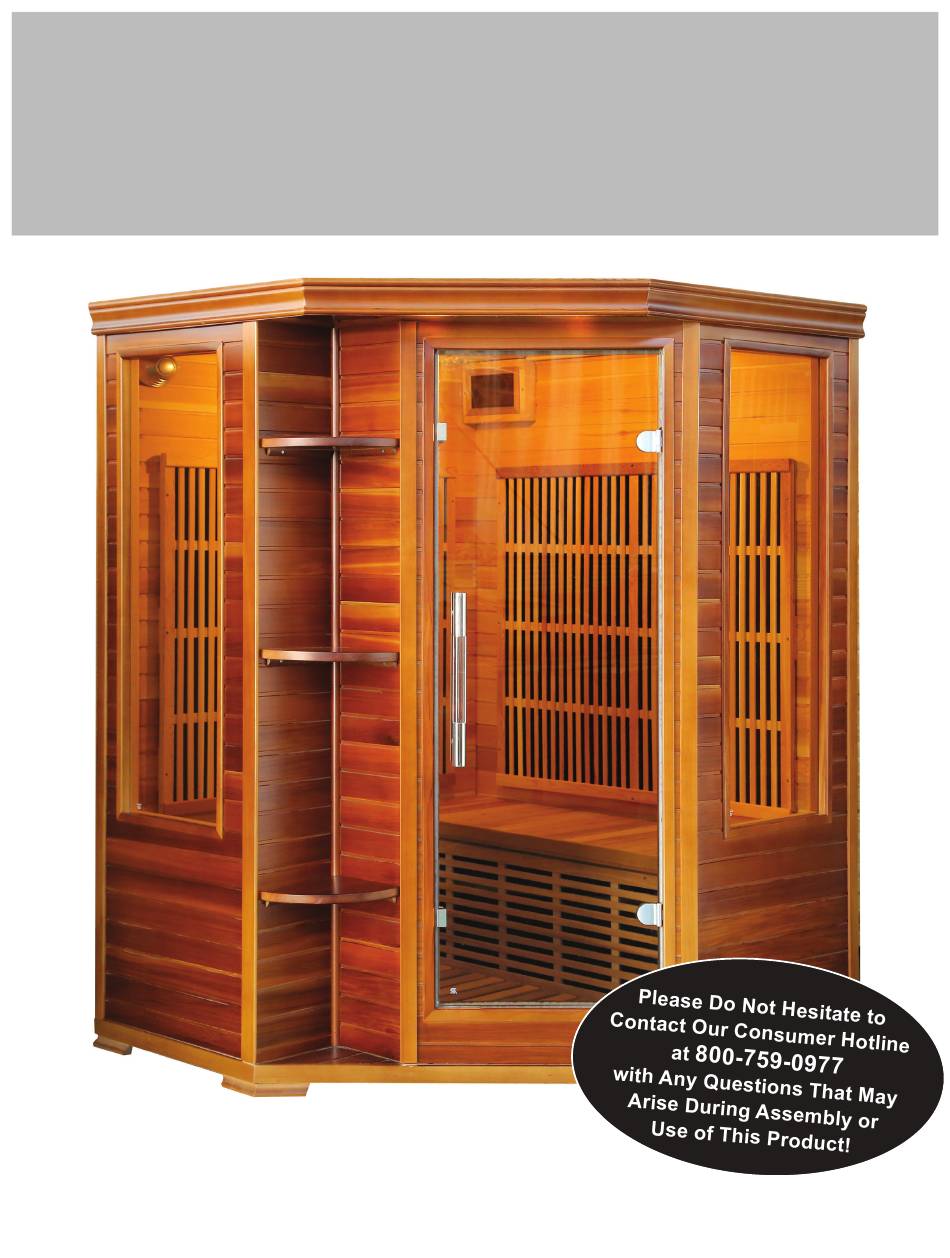

- Page 1 CEDAR ELITE PREMIUM SAUNA 3-Person Corner with Touch Screen OWNER’S MANUAL SA7003 Ver. 6/18...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ASSEMBLY TIPS & WARNINGS PARTS IDENTIFIER ASSEMBLY INSTRUCTIONS BACKREST ASSEMBLY INSTRUCTIONS OPERATION INSTRUCTIONS ENJOYING YOUR SAUNA HEALTH & SAFETY WARNINGS CLEANING & MAINTANENCE 14-15 TROUBLESHOOTING GUIDE SAUNA USE DISCLAIMER REPLACEMENT PARTS WARRANTY INFORMATION If you would like a French version of this manual, please contact our Customer Service Department at 800-759-0977 or custserv@splashnetxpress.com Si vous voulez une version française d’un manuel, s'il vous plaît contacter notre service à... -
Page 3: Assembly Tips & Warnings
ASSEMBLY TIPS & WARNINGS • Before you begin, read all assembly instructions and safety warnings carefully. • This sauna requires at least 2 adults to complete assembly. • Remove all of the contents from boxes and verify that you have all of the parts shown on the Parts Note: Some parts may be pre-installed or pre-assembled. -
Page 4: Parts Identifier
PARTS IDENTIFIER (NOT TO SCALE) Illustrations Not to Scale FRONT PANEL WITH GLASS DOOR LEFT FRONT PANEL LEFT BACK PANEL RIGHT FRONT PANEL RIGHT BACK PANEL 1/16” wood veneer ROOF ROOF COVER FLOOR FLOOR HEATER BENCH SEAT BENCH SUPPORT SHELF RIGHT SHELF LEFT CORNER SHELF DOOR HANDLE... -
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS 1. Begin assembly by determining an appropriate location for your sauna – see ASSEMBLY TIPS & WARNINGS for details. Place the FLOOR PANEL on the oor in this location. 2. Place the RIGHT BACK PANEL on the FLOOR PANEL, lining up the BACK PANEL against the oor trim piece on the backside of the FLOOR. - Page 6 ASSEMBLY INSTRUCTIONS (CONT.) 4. Place the BENCH SUPPORT HEATER PANEL on the FLOOR as shown and plug the heater cord into one of the back wall cords. Position the FLOOR HEATER PANEL on the FLOOR as shown and feed the power cord through the slot in the bottom of the support panel and plug into other wall cord.
- Page 7 ASSEMBLY INSTRUCTIONS (CONT.) 7. Attach the SHELF RIGHT BACK PANEL to FRONT DOOR PANEL in the same manner as right front panel. 8. Use the three connector rods on side of SHELF LEFT BACK PANEL to insert in bracket holes on SHELF RIGHT BACK PANEL, and push down on panel, to connect two panels together.
- Page 8 ASSEMBLY INSTRUCTIONS (CONT.) 10. Feed the main power cable through hole in ROOF and plug securely into receptacle on back of POWER SUPPLY box. Secure the ROOF COVER with 3/4” SCREWS. 11. Connect touch screen control panel as shown and mount frame to BACK PANEL with 2” SCREWS. NOTE: Please see info on Page 11 about USB cable usage.
-
Page 9: Assembly Instructions
ASSEMBLY INSTRUCTIONS (CONT.) 13. Remove the back cover of the OXYGEN IONIZER by turning it as indicated. Unwrap and install the fragrance patch, then reattach the back cover. Attach the OXYGEN IONIZER in the designated position with 3/4” SCREWS. Plug the power cable into the OXYGEN IONIZER as shown. 14. -
Page 10: Backrest Assembly Instructions
SA7003 BACKREST - SAP2818 Assembly Instructions / Instructions d’assemblage Images Not to Scale / llustrations non à l'échelle SAP2818 SAP2818 SAP2818 SAP7019* SAP7019* Backrest Side Support Brace 2” (50mm) Screw 1-1/8” (30mm) Screw Dossier Support latéral Entretoise Vis de 2 po (50 mm) -
Page 11: Operation Instructions
OPERATION INSTRUCTIONS SAUNA CONTROL PANEL - 3. Set °C or °F 7. Lights (Inside & Outside) MAIN SCREEN 1. & 6. Power Home Screen 5. Temperature & Return to Last Screen Time Readings Volume NOTE: Please see info below on 2. -
Page 12: Enjoying Your Sauna
ENJOYING YOUR SAUNA 1. Prior to initial use, wipe down all interior surfaces of the sauna with a damp cloth. 3. Always drink plenty of water before, during and after your sauna session to stay properly hydrated. 4. A normal sauna session should last 30 minutes or less. 5. -
Page 13: Health & Safety Warnings
HEALTH & SAFETY WARNINGS 1. Review all instructions and warnings before operating your sauna. A sauna is not a toy. Serious injury may result from negligence, intentional misuse and failure to follow safety instructions. 2. Hyperthermia Danger: Hyperthermia occurs when the body absorbs more heat than it can emergency and requires immediate treatment to prevent disability or death. -
Page 14: Cleaning & Maintanence
CLEANING & MAINTENANCE 1. Always unplug the sauna and allow it to cool down before performing any cleaning or maintenance. 2. Use furniture polish or furniture oil when cleaning the sauna exterior. 3. The sauna interior surfaces should only be wiped down with a damp cloth. Do NOT use 4. -
Page 15: Sauna Use Disclaimer
Blue Wave products are not registered with the United States Food and Drug Administration (FDA) as a Medical Devices. Consult your licensed health care provider to see if our saunas are right for you. Blue Wave products and/or its partners, associates, etc. -
Page 16: Replacement Parts
REPLACEMENT PARTS Rev. 6/18 SA7003 3-PERSON CEDAR ELITE SAUNA WITH CARBON HEATERS REF. # DESCRIPTION PART NUMBER QTY. CARTON FRONT PANEL WITH GLASS DOOR SAP7004 LEFT FRONT PANEL SAP7005 LEFT BACK PANEL SAP7006 RIGHT FRONT PANEL SAP7007 RIGHT BACK PANEL... -
Page 17: Warranty Information
1-Year Warranty. The light xtures are covered for 90 days. 2. This product is intended to be utilized for private, non-commercial use. Blue Wave Products sauna must be used as directed in the Product Operation Manual.
