Connecting the Antenna to a Vertical
Surface using a Bracket
For connecting the antenna to a vertical surface, use a bracket
with the following recommended dimensions (not supplied by
SolarEdge):
1. Drill two holes in the surface and attach the bracket to it
with two screws.
2. Clip the antenna onto the bracket. Make sure the antenna
is positioned vertically.
ZigBee Plug-in Installation Guide MAN-01-00554-1.2

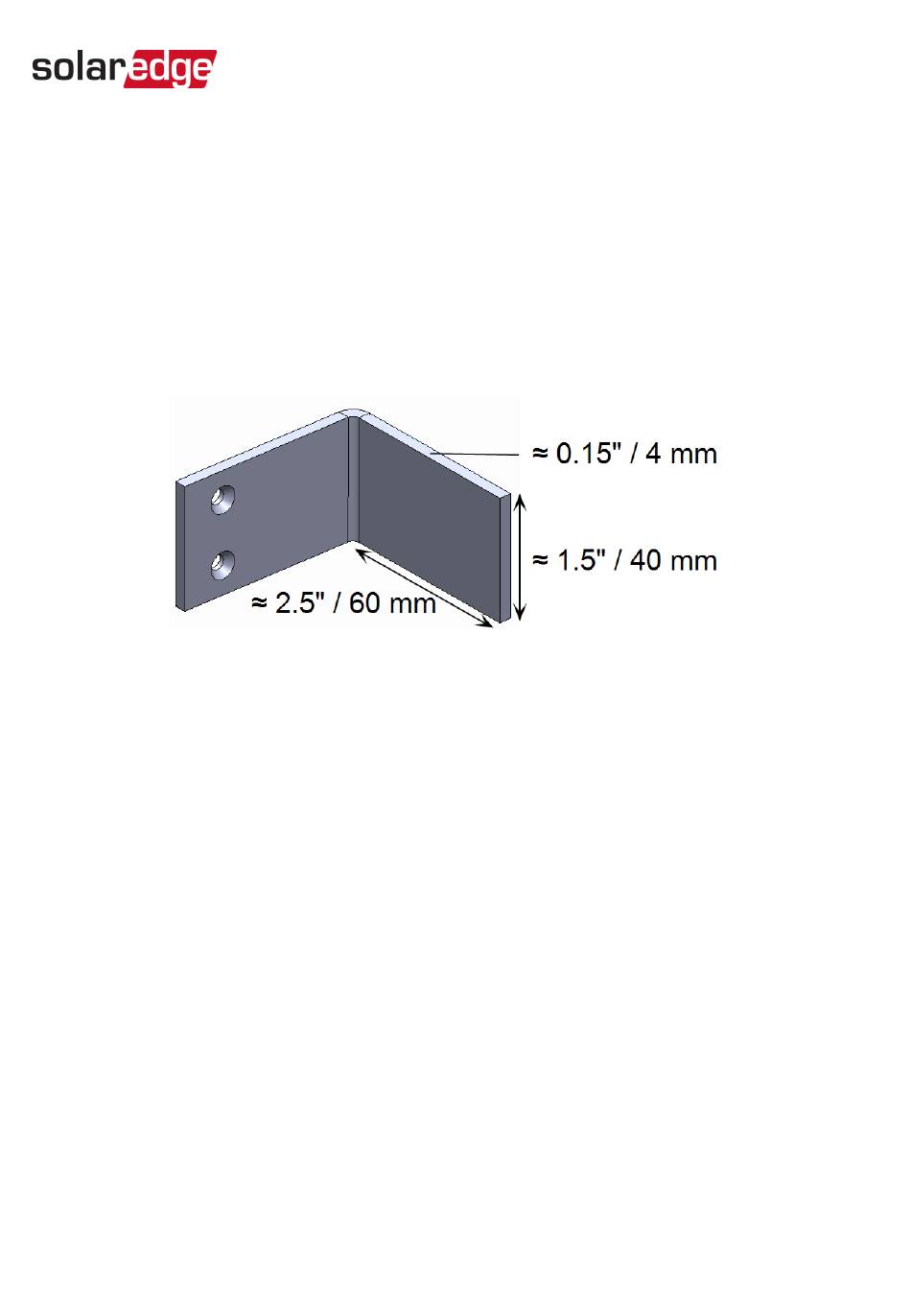

Figure 2: Example of an antenna bracket
