12 Clipping the Antenna to the Inverter
3. Pass the antenna cable between the mounting bracket and
the rear side of the inverter or along the heatsink fins.
4. Open the communication gland at the bottom of the
inverter.
5. Remove the rubber seal from the gland and insert the cable
through the gland.
6. Insert the rubber seal with the cable into the gland body
and reconnect the gland to the inverter. Tighten the sealing
gland.

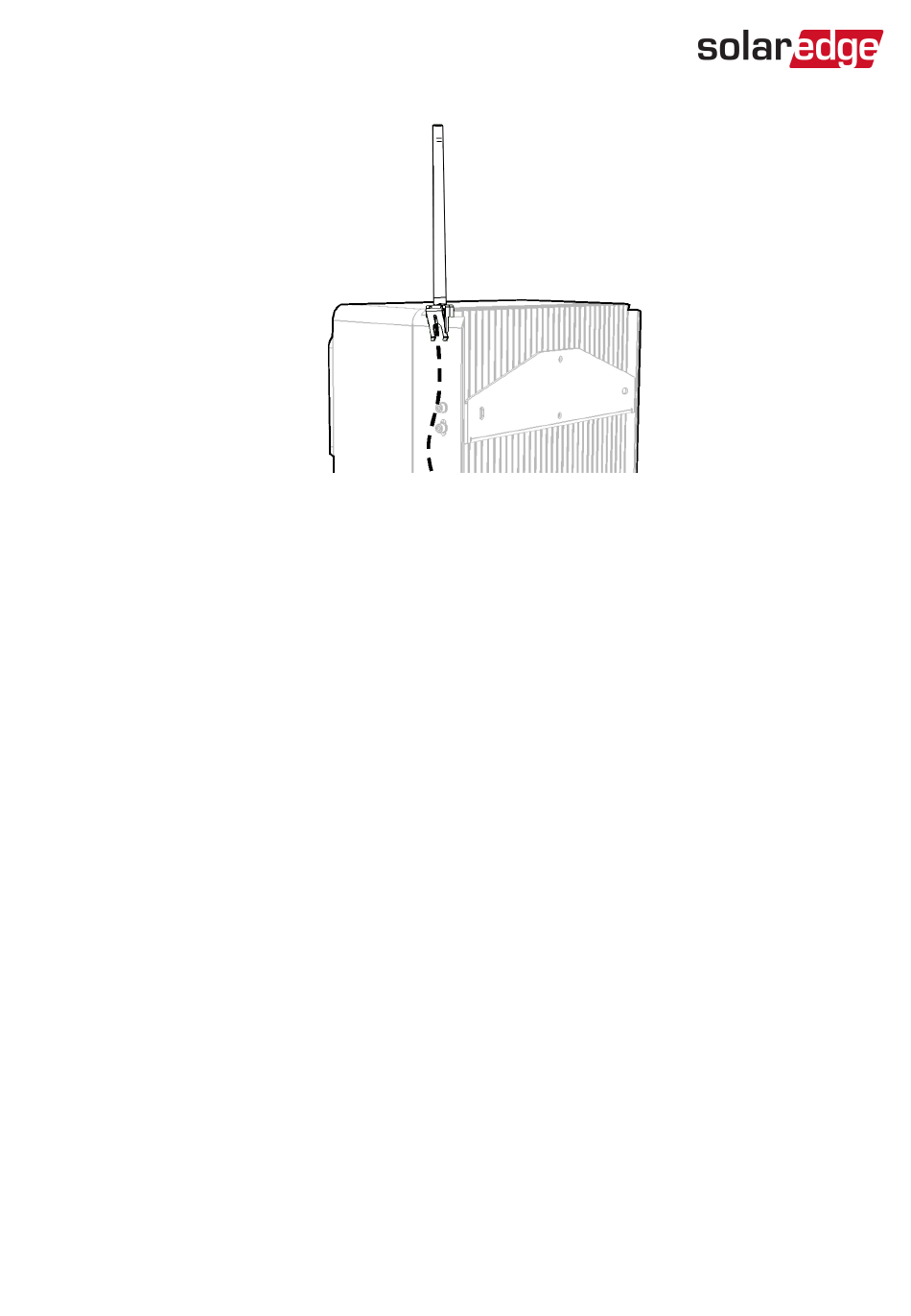

Figure 1: Antenna mounted on the inverter
