Team Assocciated RC10B6.1 Dirt Light Team Kit Manual & Catalog page 9

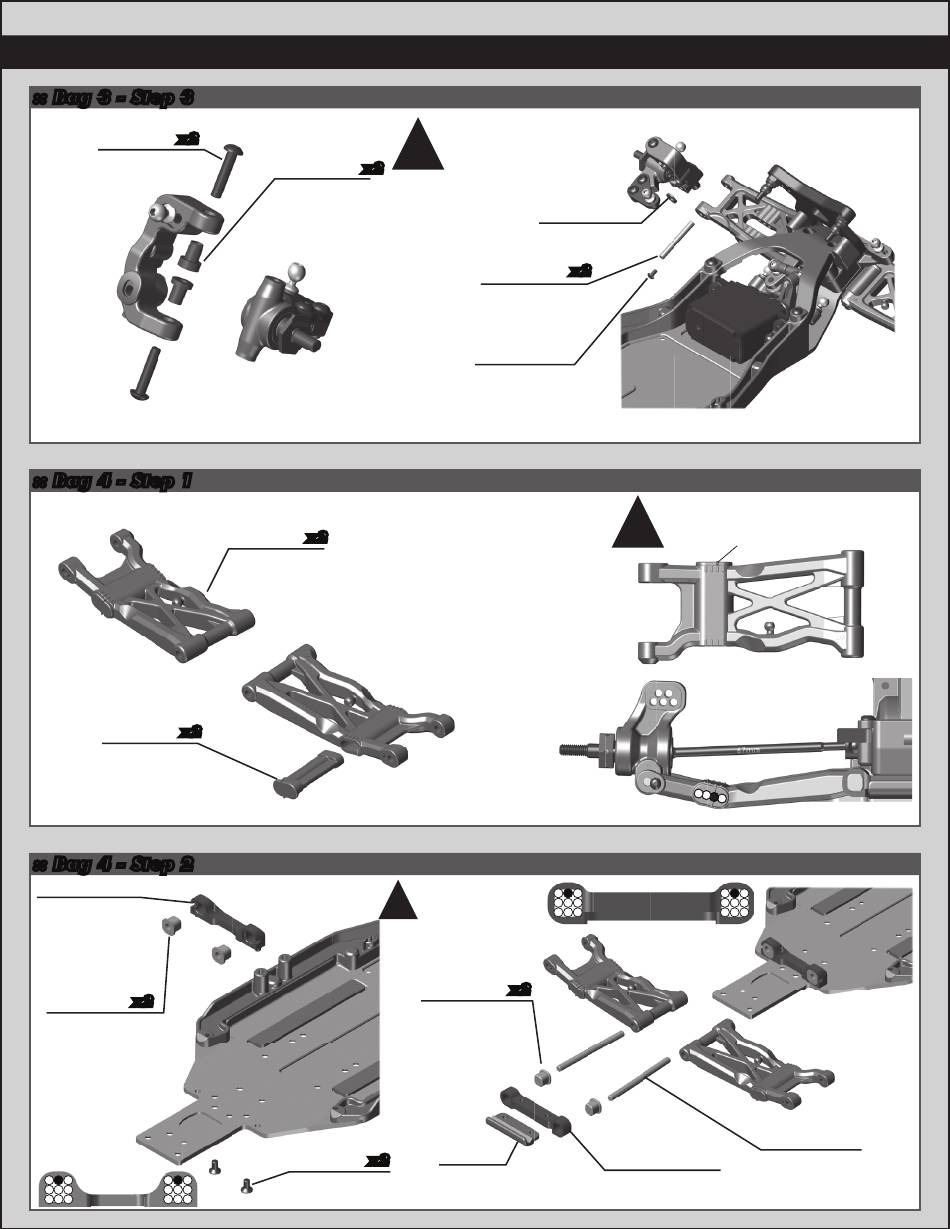

:: Bag 3 - Step 3
x2
25187
M3 x 14mm
BHCS
Build 2 (1 left, 1 right)
:: Bag 4 - Step 1
x2
91777
Rear Arm
Threaded
Insert
:: Bag 4 - Step 2
91772
Aluminum
Arm Mount,
C
x2
92014
Arm Mount
Inserts
(up, 0.5°)
Center 0.5° Up
x2
91676
Caster Hat
Bushing
Top: 2mm
Bottom: 1mm
x2
91777
Rear
Arms (L&R)
!
x2
31541
M3 x 6mm
FHCS
#91670 - Hinge Pin will be
tight in the caster blocks,
!
but should rotate freely
in the front arms.
91675
Caster Block
Spacer
x2
91670
Hinge Pin
(front, Outer)
31510
M2 x 4mm
BHCS
See page 10 for
pill chart tips
x2
92014
Arm Mount
Inserts
(up, 0.5°)
91685
Rear
Bumper
Build 2 (1 left, 1 right)
Install the rear arm threaded
!
insert in the same position for
the left and right side arms!
D C B A
Center 0.5° Up
91670
Hinge Pin
91688
(rear, Inner)
Aluminum
Arm Mount, D
9
