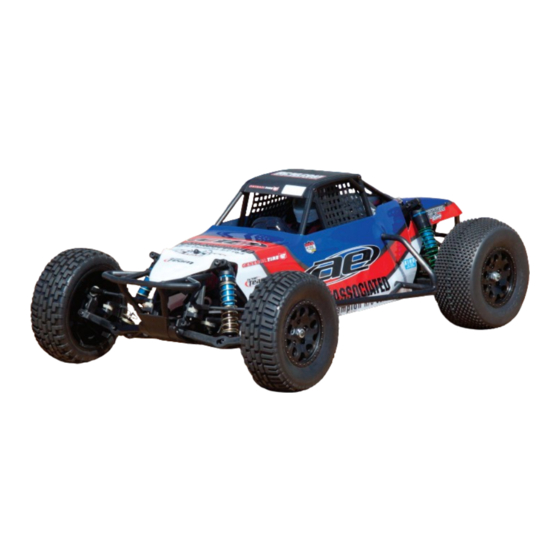

Short course-race spec, 1:10 scale electric 2wd off road race buggy
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Team Assocciated SC10B RS RTR

Summary of Contents for Team Assocciated SC10B RS RTR

  • Page 2: Introduction

    Thank you for purchasing this Team Associated product. This assembly manual contains instructions and tips for building and maintaining your new SC10B RS RTR. Please take a moment to read through this manual to help familiarize yourself with these steps. We are continually changing and improving our designs; therefore, actual parts may appear slightly different than the illustrations.

  • Page 3: Table Of Contents

    :: Table of Contents 1....Cover 19 - 23..Roll cage 2....Introduction 24....Wheels and Tires 3....Table of Contents 25 - 26..Tuning Tips 4 - 5....Steering System 27 - 38..Catalog 5 - 8....Front Suspension 38....Contact Information 8 - 10...Transmission 39....Setup Sheet “RTR Setup” 11 - 12..Rear Suspension 40....

  • Page 4: Steering System

    :: Steering System 9610 9610 Servo saver Servo saver bolt bolt 9610 9610 Remove bolt and Servo saver washer, continue Servo saver assembly per washer washer instructions. (upper) (upper) 9659 9659 * With supplied wrench, tighten servo sacer bolt completely, until it Servo saver Servo saver hits bottom.

  • Page 5: Front Suspension

    :: Steering System (cont.) 6925 9566 4-40 x 1/2 Top plate shcs 3856 Steering rack bushing 9563 9659 Front Steering bulkhead brace 9640 Steering 9640 bolt 9823 6915 Steering (right) SC10 4-40 x 5/8 bolt chassis Do not overtighten steering fhcs (left) bolts.
  • Page 6 :: Front Suspension (cont.) 7260 4-40 3983 small Ballstud plain nut .30 short (black) 7922 Caster 9645 block 30˚ 9622 6272 2-56 x 1/8 (left, right) Kingpin Foam bhcs dust Build left and cover right sides! :: Front Suspension (cont.) 9622 Build left and Outer...
  • Page 7 :: Front Suspension (cont.) 6924 4-40 x 3/8 shcs :: Front Suspension (cont.) 91200 SC10B 2221 4-40 x 7/16 4-40 x 7/16 front bumper (lower) bhcs 91220 4-40 x 1 5/8 shcs 91200 6915 6915 SC10B 4-40 x 5/8 4-40 x 5/8 skid plate fhcs fhcs...

  • Page 8: Transmission

    :: Front Suspension (cont.) 9765 91205 4-40 x 7/16 fhcs SC10B roll cage bracket Build left and right sides! :: Transmission 9888 9831 9828 0.5mm gear 3.6x0.7mm Diff gear diff shim o-ring cover 9830 2x8mm round end 9830 Outdrive 9831 4.7x1.42mm o-ring Build two!
  • Page 9 :: Transmission (cont.) 9829 4675 9829 Planet gear 2.5x6mm Sun gear shims fhcs Use the 1.5mm allen wrench to tighten the 2.5x6mm fhcs on the 9829 diff gear cover Planet gear Align flat 9829 spots Align pin with Cross pin groove in 9831 sun gear...
  • Page 10 :: Transmission (cont.) 6913 4-40 x 1 1/4 shcs 91203 SC10B rear bumper brace (left, right) 9600 Motor plate :: Transmission (cont.) * Install locknut until even with end of Compress shaft. Then tighten 3 turns for kit spring ! slipper setting.

  • Page 11: Rear Suspension

    :: Rear Suspension 7487 7448 9818 Rear arm Rear A-arms Rear chassis mount (left, right) plate (3.5 degrees) 7487 Anti squat shim (2 degrees) 9621 Hinge pin 9645 (rear, inner) 2-56 x 1/8 bhcs :: Rear Suspension (cont.) 9269 9269 5-40 x 1/2 5-40 x 1/2 fhcs...
  • Page 12 :: Rear Suspension (cont.) 9643 9644 5-40 x 7/16 5-40 x 9/16 6927 shcs shcs 4-40 x 3/4 shcs 7260 4-40 small plain nut 9824 Rear shock tower :: Rear Suspension (cont.) :: Rear Suspension (cont.) 6924 4-40 x 3/8 91212 shcs SC10B rear...

  • Page 13: Rear Hubs

    :: Rear Hubs 6272 3977 9670 7369 Dust cover Ball bearing Rear axle 1/16 foam universal 3/16 x 3/8 9584 roll pin Rear hub carrier (left, right) 3983 Ballstud 7260 .30 short 4-40 small (black) plain nut 7377 Bearing spacer 9883 7368 Wheel hex...

  • Page 14: Shocks

    :: Shocks 6469 6469 Shock Shock Remove 9884 9885 spurs o-ring o-ring V2 RTR V2 RTR front shock front shock body 1.02” body 1.39” stroke stroke (blue) (blue) Piston 7484 Shock 7484 5407 5407 internal Shock spacer internal o-ring o-ring spacer Piston number here 7484...
  • Page 15 :: Shocks (cont.) 6441 * Shock Bleeding Steps: Shock 1. Pull shock shaft down. 2. Fill shock body 3/4 full with silicone fluid. 3. Slowly move the shock shaft up and (molded) down to remove air from under piston. 4. Wait for bubbles to come to surface. 5.

  • Page 16: Electronics

    :: Electronics 7336 6272 Servo Servo Dust cover spacers foam 7337 Gold 3981 washer Ballstud .20 short (black) 7336 Servo mount 9180 See page 40 for See page 40 for 6917 correct servo correct servo Servo horn 4-40 x 3/8 Screw supplied horn on the spacing on the...
  • Page 17 :: Electronics (cont.) 9643 Speed Control 5-40 x 7/16 (ESC) shcs 9877 6727 Receiver Servo tape (bottom) :: Electronics (cont.) 9878 Receiver grommet Install the ESC and servo wires into the wire grommet before installing the grommet into the receiver box! 9878 Wire Receiver grommet plug...
  • Page 18 :: Electronics (cont.) 3862 5-40 x 1/8 9879 setscrew Thumb knob 6338 Antenna 9879 and cap 4-40 x 1/2 setscrew 9877 9643 Receiver 5-40 x 7/16 box (top) shcs 9878 Receiver box seal Leave no gap! :: Electronics (cont.) You can trim the foam To install the battery 9879 to move the battery...

  • Page 19: Roll Cage

    :: Electronics (cont.) Unlocked Locked To remove your battery pack from the vehicle, twist the thumb knobs to the unlocked position, remove the battery strap, and then remove the battery. When you install the battery, make sure the thumb knobs are locked before operation.
  • Page 20 :: Rollcage (cont.) 91204 SC10B 6925 roll cage 4-40 x 1/2 hood shcs 91204 SC10B roll cage front panel (left, right) :: Rollcage (cont.) 91204 91206 SC10B roll cage SC10B rear body rollcage mount bar roof 6924 4-40 x 3/8 shcs 6927 4-40 x 3/4...
  • Page 21 :: Rollcage (cont.) 91214 SC10B body, clear 91213 SC10B foam body spacer Adhesive side down! Align holes on body panel for nerf bars! Note placement of foam spacer! :: Rollcage (cont.) 91207 SC10B upper nerf bar 91207 SC10B lower nerf bar (left, right) 6924 4-40 x 3/8...
  • Page 22 :: Rollcage (cont.) Do not overtighten! It will deform the parts. Stop turning the screw when the gap between the parts disappears. 6292 4-40 x 3/8 fhcs 6924 4-40 x 3/8 shcs :: Rollcage (cont.) Do not overtighten! It will deform the parts.
  • Page 23 :: Rollcage (cont.) 91217 9146 SC10B cockpit underbody 2-56 x 3/16 (clear) and helmet bhcs Install #6936 washer onto #6924 screw as shown. Install helmet onto cockpit. 6936 #4 Washer aluminum 6924 4-40 x 3/8 shcs :: Rollcage (cont.) 6332 Body clip Rollcage will clip into...

  • Page 24: Wheels And Tires

    :: Wheels and Tires 91101 Note: Clean the rims and tire bead where the two will mount to each other KMC hex before you glue them together. You wheel can clean them with either rubbing (black) alchohol, or r/c electric motor spray. Place the foam insert inside the tire.

  • Page 25: Tuning Tips

    :: Tuning Tips Tips for Beginners: Before making any changes to the standard setup, make sure you can get around the track without crashing. Changes to your vehicle will not be beneficial if you can’t stay on the track. Your goal is consistent laps. Once you can get around the track consistently, start tuning your vehicle.

  • Page 26: Notes

    :: Tuning Tips (cont.) Front Camber: Camber is the angle of the wheel when looked at from the front. The angle is measured from a line perpendicular to the ground to the face of the wheel. Camber is used to ensure a wider tire contact patch while cornering. A good starting point for the front is -1°.
  • Page 27 :: Shocks :: Transmission 5407 Red O-Rings 3977 Ball Bearing, 3/16” x 3/8“ 6299 1/8” E-Clips 6913 4-40 x 1 1/4” SHCS 6441 Shock Cap, Molded 6925 4-40 x 1/2” SHCS 6458 Shock Shaft, 1.32“ stroke 6928 4-40 x 1” SHCS 6459 Shock Shaft, 1.02”...
  • Page 28 :: Gear Differential 9827 Complete Gear Diff 9828 9828 Diff Gear and Cover 9829 9828 9828 9829 Gear Diff Rebuild 9831 9828 9830 Gear Diff Outdrives, Set 9831 Gear Diff O-Ring Set 9829 9832 10x16mm Bearing 9830 9888 0.5mm Gear Diff Shim 9830 9888 9831...
  • Page 29 :: Steering 2221 4-40 x 7/16” BHCS 3856 Steering Bushings, Set 6272 Foam Ball end Dust Covers 6276 Ballstud .20” Silver (short) 3856 6925 4-40 x 1/2” SHCS 6925 6925 9566 B4 / T4 Top Plate 6925 9610 Servo Saver / Steering Hardware 9640 B4 / T4 Steering Bolt, left &...
  • Page 30 :: Front Bumper 2221 4-40 x 7/16 BHCS 6915 4-40 x 5/8 FHCS 2221 91200 SC10B Front Bumper Set 91220 4-40 x 1 5/8 SHCS 2221 91200 91200 91220 91200 6915 :: Front Suspension 3977 3/16 x 3/8 RS Ball Bearing 3983 Ballstud .30”...
  • Page 31 :: Battery Strap 9815 SC10 Foam Battery Spacer 9879 SC10 Battery Strap, Thumb 9879 Screws, and Setscrews 9879 9879 9879 9879 9815 :: Chassis / Radio Tray 3862 5-40 x 1/8” Set Screw 4334 2-56 x 5/16” BHCS 9643 6272 Foam Ballend Dust Cover 3862 6277...
  • Page 32 :: Rear Shock Tower 6927 4-40 x 3/4” SHCS 6928 4-40 x 1” SHCS 9643 7260 4-40 Plain Nut 9644 9643 5-40 x 7/16” SHCS 9644 5-40 x 9/16” SHCS 7260 9824 T4 / SC10 Rear Shock Tower 91212 SC10B Body Mounts, front & rear 9643 9644 6927...
  • Page 33 :: Rear Bumper 6913 4-40 x 1 1/4” SHCS 6915 6915 4-40 x 5/8” FHCS 91203 6924 4-40 x 3/8” SHCS 6932 4-40 x 5/16” SHCS 6915 91203 SC10B Rear Bumper Set 91203 6913 91203 91203 6924 6915 6913 6924 6915 6932 :: Wheels, Tires, Inserts...
  • Page 34 :: Roll Cage 6292 4-40 x 3/8” FHCS 6919 4-40 x 5/16” BHCS 6924 4-40 x 3/8” SHCS 6925 4-40 x 1/2” SHCS 6927 4-40 x 3/4” SHCS 9146 2-56 x 3/16” BHCS 91204 SC10B Rollcage 91206 SC10B Roll cage Roof 91207 SC10B Nerf Bars, left &...
  • Page 35 :: Factory Team and Option Parts :: Factory Team and Option Parts (cont.) 1283 FT T4 Ti Turnbuckle Set 9867 FT Aluminum Hub, 1.5 deg 1408 FT Ti Turnbuckle, 2.65” (blue) for front steering (requires #7933, #7935, #6906) 1409 FT Ti Turnbuckle, 1” (sway bar) (blue) 9872 FT Aluminum Hub Tower Set 1417...
  • Page 36 :: Reedy Motors and ESC’s :: LRP Speed Controls Replacement Rotor 540-SL LRP80230 Spin Super Brushless 540-SL Brushless Motor 3300kV LRP80250 Spin Pro Brushless 540-SL Brushless Motor 3900kV LRP80960 Flow Competition 540-SL Brushless Motor 4900kV LRP80970 Flow Works Team 540-SL Brushless Motor 6100kV Sonic 540 21.5 Competition Brushless Motor Sonic 540 17.5 Competition Brushless Motor :: LRP Brushless Motors / Combos...
  • Page 37 AE 2012 Hat, Black, Flat Bill, S/M 9039 RC10B4.1 RTR 2.4GHz Brushless (ready-to-run) SP421L AE 2012 Hat, Black, Flat Bill, L/XL 9050 SC10B RS RTR (ready-to-run) SP422S AE 2012 Hat, Black, Curved Bill, S/M 9062 FT B44.2 4WD Buggy Kit SP422L...

  • Page 38: Contact Information

    :: Tools :: Contact Information 1111 FT Turnbuckle Wrench 1450 FT Ride Height Gauge 1541 FT Hex Driver Set, (7 pcs) 1542 FT .050” Silver Hex Driver 1543 FT 1/16” Black Hex Driver 1544 FT 1.5mm Purple Hex Driver 1545 FT 5/64”...

  • Page 39: Notes

    Team Setup Driver: Date: Track: Event: Conditions: Rev.1 Setup Sheet Front Suspension Rear Suspension Washers: Bump steer spacer: Anti Roll Bar: Black (soft) Silver (med) Gold (hard) None Washers: Rear Hub Carriers Plastic Aluminum Tower: Hub Toe: std 0° 0.5° Ackerman: 1°...
  • Page 40 :: Hardware - 1:1 Scale View Socket Head (shcs) Flat Head (fhcs) Button Head (bhcs) 4-40 x 1/4 (6285) 4-40 x 3/8 (6292) 2-56 x 1/8 (9645) 4-40 x 5/16 (6932) 4-40 x 7/16 (9765) 2-56 x 3/16 (9146) 4-40 x 3/8 (6924) 4-40 x 1/2 (6922) 2-56 x 5/16 (4334) 4-40 x 1/2 (6925)

  • Page 41: Notes

    Driver: Date: Track: Event: Conditions: Rev.1 Setup Sheet Front Suspension Rear Suspension Washers: Bump steer spacer: Anti Roll Bar: Black (soft) Silver (med) Gold (hard) None Washers: Rear Hub Carriers Plastic Aluminum Tower: Hub Toe: std 0° 0.5° Ackerman: 1° 1.5°...
