Team Assocciated RC10B6.1 Dirt Light Team Kit Manual & Catalog page 12

12

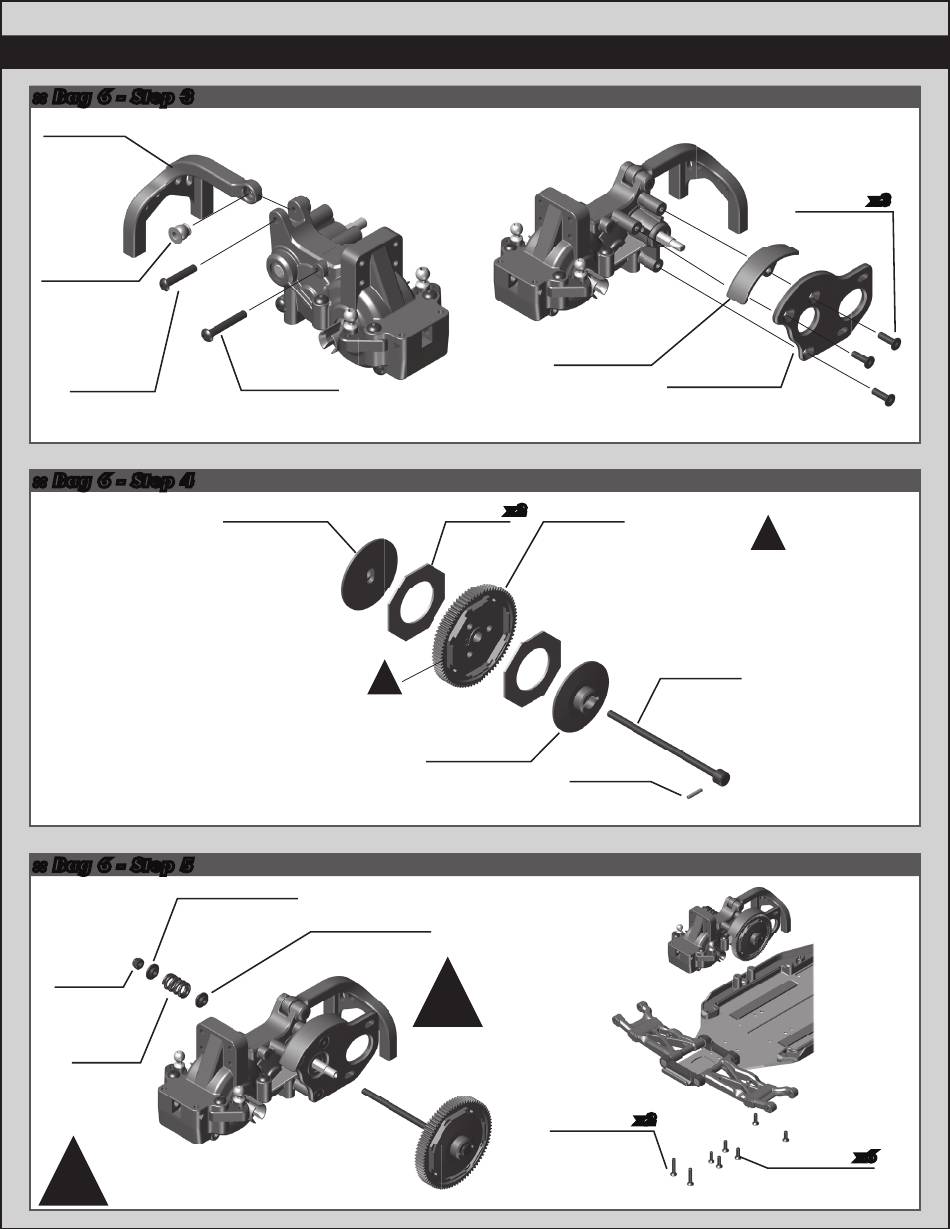

:: Bag 6 - Step 3
91709
Lay-Down
Chassis
Brace
91819
B6.1 Shock
Pivot Ball
89203
3 x 16mm
BHCS
:: Bag 6 - Step 4
:: Bag 6 - Step 5
91801
Slipper Spring
Adapter, Inner
25215
M3
Locknut
91801
Slipper
Spring
!
See page 20 for gear
mesh, and slipper clutch
setting instructions!
25188
3 x 20mm
BHCS
91803
B6.1 Slipper
Hub, Inner
!
#91811 spur gear
walls should point
away from gear box.
91801
Slipper Spring
Adapter, Inner
91813
B6.1 Gear
Guard
x2
9611 91811
Slipper B6.1 Spur
Pad, V2 Gear, 78T
91804
B6.1 Slipper
91799
Hub, Outer
B6.1 Top
Shaft Pin
!
Set nut
flush with
top shaft.
25204
M3 x 16mm
FHCS
25202
3 x 10mm
91795
B6.1 Laydown
Motor Plate
!
There's also a
72T, 48P spur
gear (#91809)
included for
stock motor use!
91799
B6.1 Top
Shaft Screw
x2
25202
M3 x 10mm
FHCS
x3
FHCS
x6
