Sealey SAC55075B Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT
CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL
INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
Guide to symbols
Warning: Electricity
Warning: Hot Surface
Warning: Automatic
start up
Wear ear protection
Read the instruction
manual before use
1.1. ELECTRICAL SAFETY
 WARNING! It is the responsibility of the owner and the
operator to read, understand and comply with the following: You
must check all electrical products, before use, to ensure that
they are safe. You must inspect power cables, plugs, sockets
and any other connectors for wear or damage. You must ensure
that the risk of electric shock is minimised by the installation of
appropriate safety devices. A Residual Current Circuit Breaker
(RCCB) should be incorporated in the main distribution board.
We also recommend that a Residual Current Device (RCD) is
used. It is particularly important to use an RCD with portable
products that are plugged into a supply which is not protected by
an RCCB. If in any doubt consult a qualified electrician. You may
obtain a Residual Current Device by contacting your Sealey
dealer. You must also read and understand the following
instructions concerning electrical safety.
1.1.1. The Electricity at Work Act 1989 requires that all portable
electrical appliances, if used on business premises, are tested
by a qualified electrician, using a Portable Appliance Tester
(PAT), at least once a year.
1.1.2. The Health & Safety at Work Act 1974 makes owners of
electrical appliances responsible for the safe condition of those
appliances and the safety of the appliance operators. If in any
doubt about electrical safety, contact a qualified electrician.
1.1.3. Ensure that the insulation on all cables and on the appliance is
safe before connecting it to the power supply. See 1.1.1. and
1.1.2. and use a Portable Appliance Tester.
1.1.4. Ensure that cables are always protected against short circuit
and overload.
1.1.5. Regularly inspect power supply cables and plugs for wear or
damage and check all connections to ensure that none is loose.
1.1.6. Important: Ensure that the voltage marked on the appliance
matches the power supply to be used and that the plug is fitted
with the correct fuse (see 1.1.10. below).
1.1.7. DO NOT pull or carry the appliance by the power cable.
© Jack Sealey Limited
INSTRUCTIONS FOR:

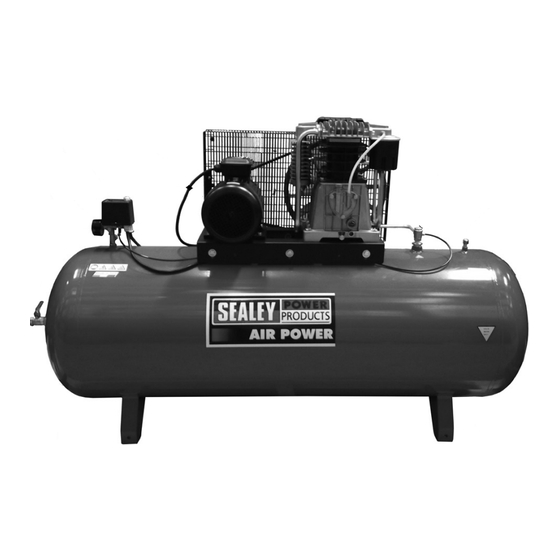

COMPRESSOR - 500LTR BELT DRIVE 7.5hp 3ph
2-STAGE WITH CAST CYLINDERS
SAC55075B
MODEL No:
DO NOT open the air
cock before an air hose
is attached
DO NOT operate the
compressor with
enclosure displaced
Ensure oil level is
correct before first use
Original Language Version
1.1.8. DO NOT pull the plug from the socket by the cable.
1.1.9. DO NOT use worn or damaged cables, plugs or connectors.
Immediately have any faulty item repaired or replaced by a
qualified electrician.
WARNING! ELECTRICAL INSTALLATION TO A 3 PHASE

415VOLT SUPPLY MUST ONLY BE CARRIED OUT BY A
QUALIFIED ELECTRICIAN.
1.1.10 This product must be fitted with a 3 phase plug wired as
illustration in (fig.1), wired to an appropriately fused supply.
Connect GREEN/YELLOW wire to Earth 'E'
Connect BROWN wire to L1 Terminal.*
Connect BLACK wire to L2 Terminal.*
Connect the GREY wire to L3 Terminal.*
 WARNING! IT IS ESSENTIAL TO OBSERVE PULLEY DIRECTION
ON INITIAL START UP, SEE fig.2 AND PULLEY GUARD. IF
INCORRECT, STOP IMMEDIATELY AND CONSULT A QUALIFIED
ELECTRICIAN TO INVERT 2 PHASES*.
*NOTE: The cable core colours found in the mains cable on this
compressor are consistent with Amendment 2 to 7671:2001. When
completed, check there are no bare wires, that all wires have been
connected correctly and the cable restraint is tight.
1.1.11 DO NOT use this product with an extension cable.
IMPORTANT USER INFORMATION!

Over-current protection of the power circuit is required in
accordance with 7.2 of EN 60204-1:2006. The supply
disconnecting device to be in accordance with 5.3 of
EN 60204-1:2006. Ask a qualified electrician about compliance.
1.2. GENERAL SAFETY
Familiarise yourself with the application and limitations of the
3
compressor.
Ensure the compressor is in good order and condition before
3
use. If in any doubt do not use the unit and contact an
electrician/service agent.
WARNING! Compressor must only be serviced by an

authorised agent. DO NOT tamper with, or attempt to
adjust, pressure switch or safety valve.
Before moving, or maintaining the compressor ensure it is
3
unplugged from the mains supply and that the air tank pressure
has been vented.
Maintain the compressor in good condition and replace any
3
damaged or worn parts. Use genuine parts only. Unauthorised
parts may be dangerous and will invalidate your warranty.
Read the instructions relating to any accessory to be used
3
with this compressor. Ensure the safe working pressure of
any air appliance used exceeds compressors output
pressure. If using a spray gun, check that the area selected
for spraying is provided with an air change system/ventilation.
Ensure the air supply valve is turned off before disconnecting
3
the air supply hose.
Use the compressor in a well ventilated area and ensure it is
3
placed on a firm surface.
fig.1
SAC55075B Issue: 1 - 24/12/14
