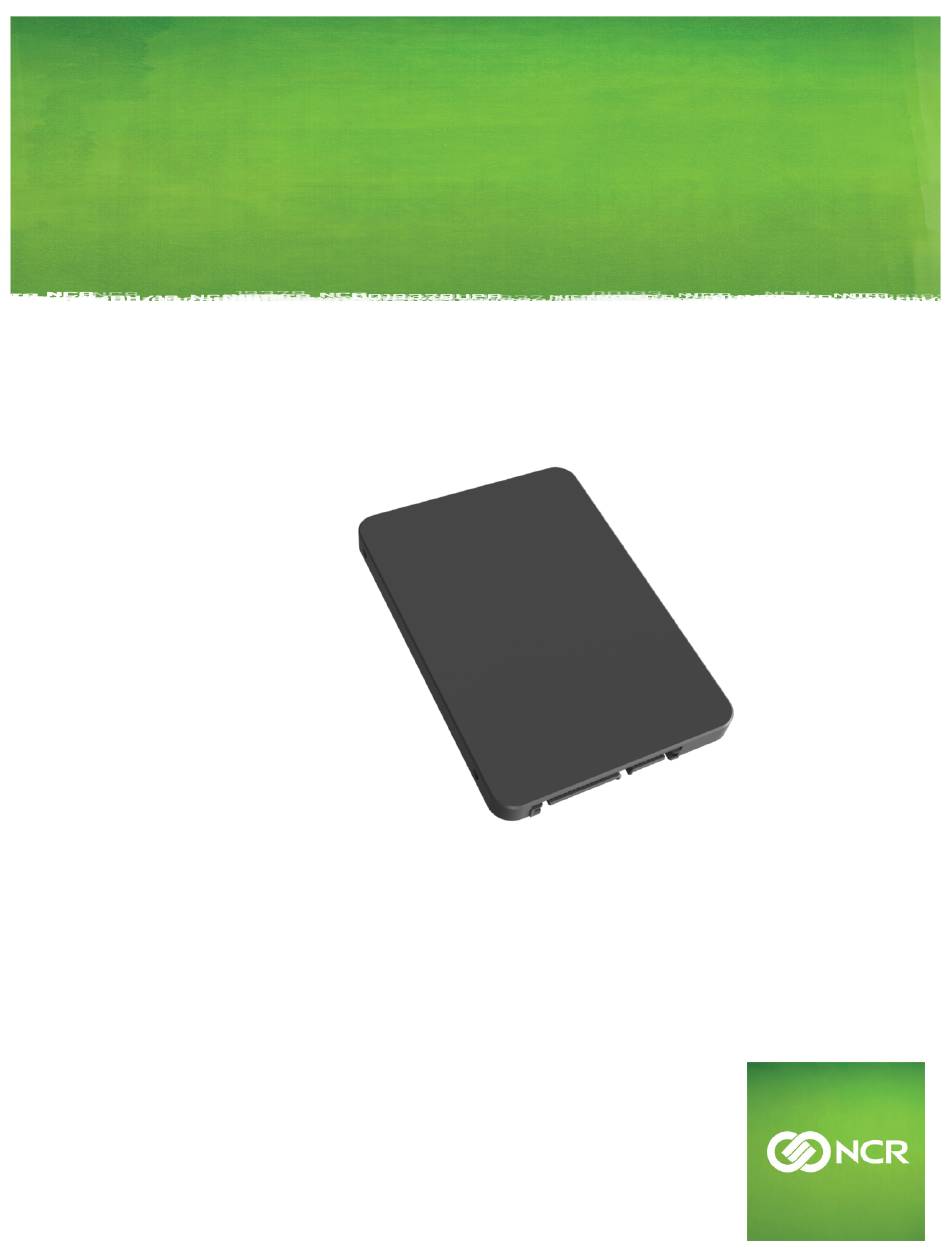

- Page 1 KIT INSTRUCTIONS 40GB/60GB/120GB Solid State Drive Release 1.0 7761–K240/K241/K243 Issue A...
- Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
- Page 3 This kit provides a 40GB/60GB/120GB, 2.5" Solid State Drive (SSD) for a P1535/P1235 POS. Kit Content Kit Number Part Number Description 7761–K240 006–8625385 Apacer 2.5" SATA, 40GB, APS25AF4040G-A4MCM-NCR 7761–K241 006–8625426 Apacer 2.5" SATA, 60GB, APS25AF4060G-A4MCM-NCR 7761–K243 006–8625150 SSD - 2.5" Apacer, SATA, 120GB...
-
Page 4: Installation Procedure
7761-K240_K241_K243 (40GB, 60GB, 120GB SSD) Installation Procedure 1. Loosen the captive thumbscrew (1) that secures the cable cover. 2. To open, press on the indentations in the cable cover to unlatch the cover and then pivot the cover open. Detach the cable cover. - Page 5 7761-K240_K241_K243 (40GB, 60GB, 120GB SSD) 3. Remove the screw (1) that secures the Solid–State Cover. 4. Remove the Solid–State Cover and SSD.
- Page 6 7761-K240_K241_K243 (40GB, 60GB, 120GB SSD) 5. Remove the screws (2) that secure the SSD to the Solid–State Cover. Remove the SSD. 6. Mount the new 40GB/60GB/120 SSD to the Solid–State Cover through the keying features. Secure with screws (2).
- Page 7 7761-K240_K241_K243 (40GB, 60GB, 120GB SSD) 7. Install the Solid-State Cover and SSD. 8. Secure with screw (1).
- Page 8 7761-K240_K241_K243 (40GB, 60GB, 120GB SSD) 9. Hook and snap back the Cable Cover. 10. Tighten the thumbscrew to secure the cover.
