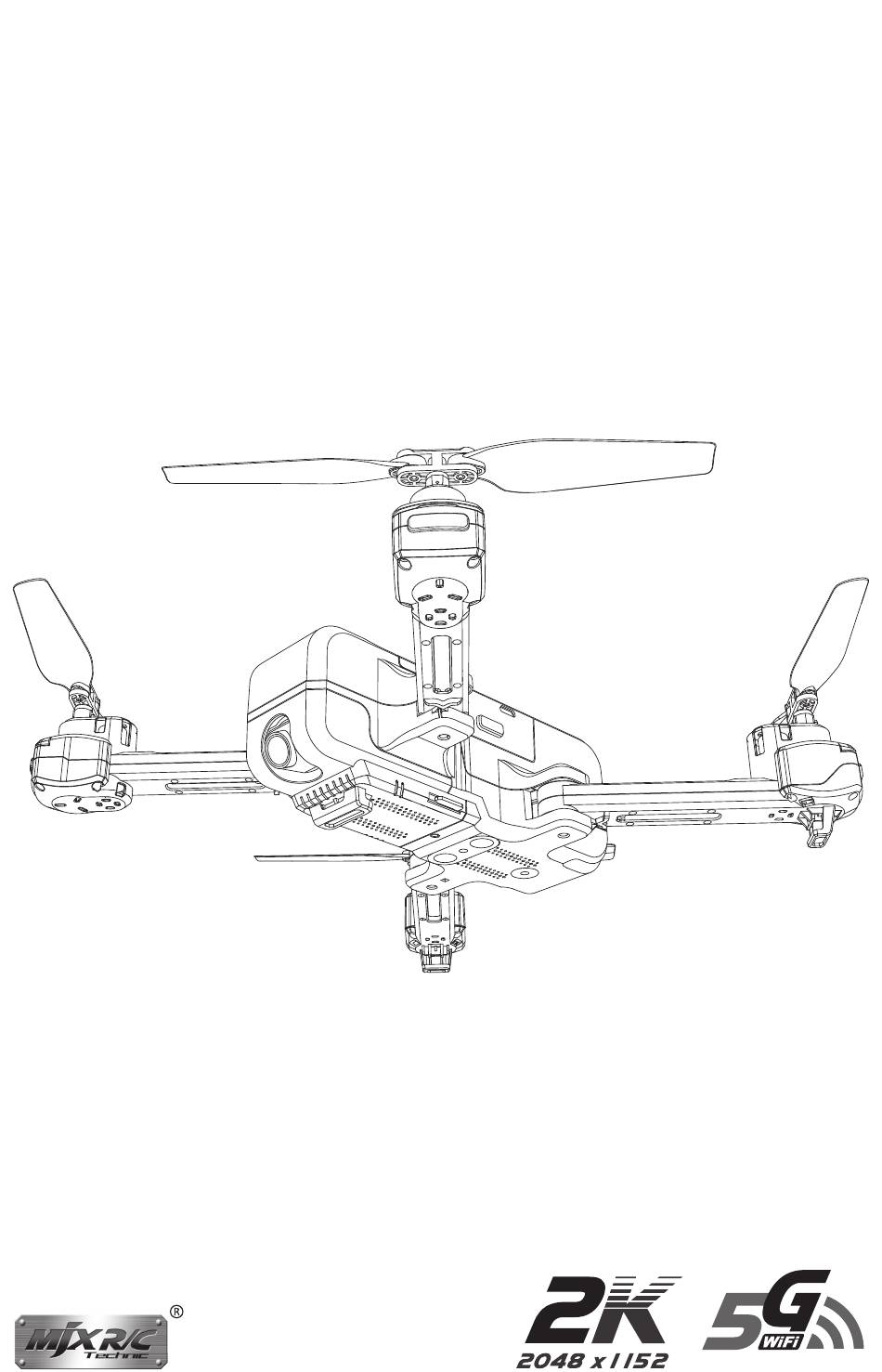

- Page 1 X103W User Manual Farther.Faster.Clearer...
-
Page 2: Table Of Contents
Contents Product Features Introduction Get to know your X103W Get to know the X103W remote controller The X103W and remote parts identifier The X103W Flight modes Drone status indicator lights Return to Home (RTH) operation The X103W power witch Intelligent battery... -
Page 3: Product Features
Global Positioning System (GPS). The GPS communicates with satellites to enable precise positioning of the drone and hovering over a specific position. The X103W is also capable of flying in the intelligent flight modes like Point of interest, Follow me and Waypoint flight. -
Page 4: Get To Know The X103W Remote Controller
WILL cause the drone to malfunction and may cause damage to the drone or to the person flying it or others in the vicinity. Get to Know Your X103W Remote Controller Battery installation in the remote controller 1. Unfold the handles and open the battery compartment door (Pic. 1);... -
Page 5: The X103W And Remote Parts Identifier
X103W User Manual The X103W and Remote Parts Identifier [1] Power switch [2] Undercarriage [3] Propeller [4] Camera [5] Bottom lights [6] Front lights [7] Rear lights [1] Photo/Video [2] Left joystick [3] One-key unlock [4] One-key RTH [5] Right joystick... - Page 6 X103W User Manual [8] One-key takeoff/ One-key landing [9] Gimbal trimmer [10] [10] High/Low speed switch (short-press); Light switch (long-press) [11] Gesture / GPS mode switch [11]...
-
Page 7: The X103W
This section introduces functions and features of the X103W. Flight Modes Your X103W has two flights modes: GPS mode: GPS ON Slide the button up at the right side of the remote to “ON” (Pic.1), the drone is in GPS mode and can precisely position itself and hover in one location with the assistance of the GPS. -
Page 8: Drone Status Indicator Lights
X103W User Manual Drone Status Indicator Lights Drone front light Drone front light Drone rear light Drone rear light Drone status indicator Indicator status Meanings Front and rear lights flash yellow rapidly. The drone 2.4GHz comunication is disconnected. Front and rear lights flash red, green and The drone is under initialization detection status. -
Page 9: Return To Home (Rth) Operation
X103W User Manual Return to Home (RTH) Operation The Return-to-Home(RTH) procedure brings the drone back to the last recorded Home Position. There are 3 types of RTH modes: Smart RTH, Low battery RTH and Fail safe RTH. The following sections describe each mode in detail. -
Page 10: The X103W Power Witch
Intelligent Battery Made by high-energy battery cells and assembled with an advance battery management system, the X103W battery is so intelligent that it is capable of managing the charging and discharging by itself. The battery capacity is 7.4V 1100mAh. Charging the drone battery ●... -
Page 11: Attaching And Detaching The Drone Propellers
X103W User Manual Attaching and Detaching the Propellers Attaching the propellers Install propeller A and propeller B on the corresponding motor shaft and fix the rotor propellers tightly by rotating clockwise. (A/B marks are at the bottom of the propeller) Detaching the propellers Rotate the screws counter-clockwise to take out the screws and remove the propellers. -
Page 12: The X103W Remote Controller
The X103W Remote Controller This section describes the features of the remote controller, including the instruction on controlling the X103W. Remote Controller Functions and Status Flight mode switch Choose the flight mode by switching the GPS button between the ON/OFF positions. -
Page 13: Remote Functions And Setup
X103W User Manual Remote Functions and Setup Remote controller status Description Signal strength indicator changes from The remote controller is under signal connection weak to strong repeatedly. status. Indicator lights flash slowly with steady The remote controller is under low voltage status. - Page 14 Operating the camera can be done only from the APP installed on a phone. One-key takeoff/One-key landing ● After the X103W unlocked, short-press the “ ” button below, the drone will automatically take off and hover at 1.5m altitude. ● When the drone is flying, short-press the “ ” button below, the drone will automatically land on the ground.
-
Page 15: Remote Controller Joystick Modes
More bars mean better signal. Optimal transmission zone To obtain the best flight experience, please make sure that your X103W is flying in front of the remote controller and there are no obstacles between the drone and the remote controller. -
Page 16: Mobile Phone Installation On The Remote Controller
X103W User Manual Changing the remote controller mode Step 1. Press the red lock “ ” button and turn on the remote controller power, the remote controller is under signal connection status (Pic.1); Step 2. Press and hold the RTH button “ ” for 3 seconds to cycle through the remote controller modes (Pic.2). -
Page 17: Mjx App For Ios And Android
MJX APP for iOS and Android This section introduces how to download the “MJX GPS” APP and connect with mobile device. FPV Real-time Image Transmission Software “MJX GPS” Where to download “MJX GPS” APP 1. For Apple iOS systems, please turn to Apple store, search “MJX GPS” or scan the QR code below to download the software. - Page 18 To obtain the best live view, please choose a wide open area to fly in. As tested, the X103W could transmit 2K videos up to 800 meters (0.6 mile) Farther.Faster.Clearer in an environment with no interference.
-
Page 19: Flying Your X103W
6. Your X103W cannot use GPS within the polar regions. Flight limits and GEO zones Abide by all laws and regulations when flying your X103W. Flight limitations are pre-programmed into the “MJX GPS” to help users operate the drone safely and legally. Flight limitations include altitude limits, distance limits and GEO Zones. -
Page 20: Pre-Flight Checklist
X103W User Manual Pre-flight Checklist 1. The Drone battery, remote controller and mobile device are fully charged; 2. The propellers are installed correctly; 3. The arms and propellers are fully unfolded and secured; 4. Ensure the camera lens are clean;... - Page 21 X103W User Manual Drone compass calibration 1. Compass calibration should be performed after successful drone initialization detection. 2. The drone compass calibration should be done before every flight. If the battery changed to a new one or the battery is reinstalled, the compass calibration should be repeated.
- Page 22 X103W User Manual Gyroscope calibration After the drone and the remote controller are bound, set the drone on a flat surface (Pic. 1), push and hold both joystick to the lower left position (Pic. 2) to calibrate the gyro. Once the drone front lights turn from flashing to solid on, the gyro calibration completes successfully.
-
Page 23: Initial Flight
3. Connect the remote controller with the drone and then proceed the drone initialization detection. 4. Connect your X103W with your phone and enter into the image transmission interface. 5. Unlock the drone after the drone gyro detection is completed. -
Page 24: Appendix
Appendix X103W Product Specifications Drone Gross Weight X103W: 246g (8.7 Oz) (Battery and propellers included) Dimensions Folded: 150*100*60mm (length*width*height) (6*4*2.4 inch) Unfolded: 345*345*60m (length*width*height) (13.6*13.6*2.4 inch) Diagonal 255mm (10 inch) Max Ascent Speed 2m/s (6.56f/s) Max Descent Speed 2m/s (6.56f/s) - Page 25 X103W User Manual Video Format MP4, Compressed Format H.264 Supported SD Cards ≥Class 10 Micro SD Cards (not included) Operating Temperature 0 ℃ -40 ℃ Remote Controller Operating Frequency 2.4-2.4835GHz Max Transmission Distance 800m (0.51 mile) Operating Temperature 0 ℃ -40 ℃ (32-100 F)
-
Page 26: What's In The Box
X103W User Manual What Is in the Box Package includes the following parts. Drone *1 Remote Controller *1 Extra propellers set *1 X103W User Manual Farther.Faster.Clearer USB charging Cable *1 Screwdriver *1 User Manual *1 X103W Quick Start Farther.Faster.Clearer Quick Start *1... -
Page 27: Cautions And Safety Notes
● Keep small accessories away from kids to avoid accident. Guidelines for Safe Flying of the X103W Hobby grade radio control drones are considered to be the most dangerous potential products. - Page 28 Note: a) Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
