INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE.
CONFORMS TO AMERICAN NATIONAL STANDARDS: ANSI Z21.50, CERTIFIED TO CANADIAN CSA 2.22 FOR VENTED GAS FIREPLACES.
SAFETY INFORMATION
WARNING
!
If the information in these instructions
are not followed exactly, a fi re or
explosion may result causing property
damage, personal injury or loss of life.
- Do not store or use gasoline or other fl ammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS:
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use
any phone in your building.
•
Immediately call your gas supplier from a
neighbour's phone. Follow the gas supplier's
instructions.
•
If you cannot reach your gas supplier, call the
fi re department.
- Installation and service must be performed by a
qualifi ed installer, service agency or the supplier.
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is only for use with the type of
gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certifi ed kit is used.
Decorative Product: Not for use as a heating
appliance.
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada /
Phone (705)721-1212 • Fax (705)722-9081 • www.continentalfi replaces.com • ask@continentalfi re.on.ca
$10.00
INSTALLATION AND
OPERATING INSTRUCTIONS

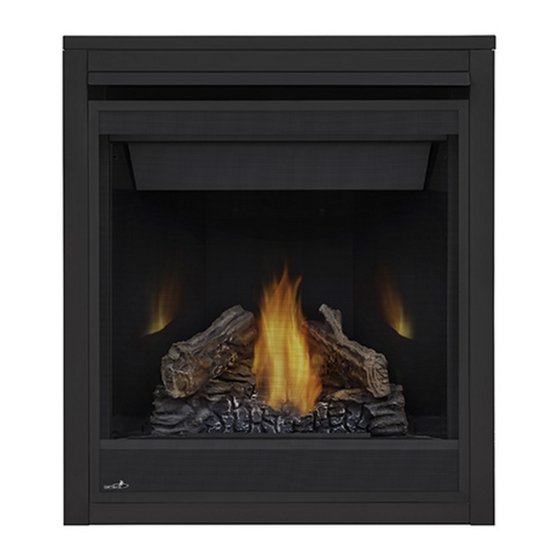

CB30NTR / CB30NTRE
CB30PTR / CB30PTRE
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.
103 Miller Drive, Crittenden, Kentucky, USA, 41030
NATURAL GAS MODEL
PROPANE GAS MODEL
DANGER
!
HOT GLASS WILL CAUSE BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
1.24D
EN
FR
PG
71
W415-1398 / C / 06.15.17
Advertisement
Table of Contents
Related Manuals for Continental Fireplaces CB30NTR
Summary of Contents for Continental Fireplaces CB30NTR
-
Page 1: Safety Information
NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE. INSTALLATION AND OPERATING INSTRUCTIONS CONFORMS TO AMERICAN NATIONAL STANDARDS: ANSI Z21.50, CERTIFIED TO CANADIAN CSA 2.22 FOR VENTED GAS FIREPLACES. SAFETY INFORMATION CB30NTR / CB30NTRE CB30PTR / CB30PTRE WARNING NATURAL GAS MODEL If the information in these instructions... -
Page 2: Table Of Contents
TABLE OF CONTENTS NOTE: The camera icon indicates video tutorials are available as additional reference, visit http://www.napoleonfireplaces.com/category/product-support/support-centre/ INSTALLATION OVERVIEW INTRODUCTION DIMENSIONS GENERAL INSTRUCTIONS GENERAL INFORMATION 7 2.4 RATING PLATE INFORMATION 8 VENTING VENTING LENGTHS AND COMPONENTS TYPICAL VENT INSTALLATION SPECIAL VENT INSTALLATIONS 3.3.1 PERISCOPE TERMINATION 13 3.3.2... -
Page 3: Installation Overview
1.0 INSTALLATION OVERVIEW Batteries must be disposed of according to the local laws and regulations. Some batteries may be recycled, and may be accepted for disposal at your local recycling center. Check with your municipality for recycling instructions. W415-1398 / C / 06.15.17... -
Page 4: Introduction
2.0 INTRODUCTION WARNING • THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED. • ANY CHANGES TO THIS APPLIANCE OR ITS CONTROLS CAN BE DANGEROUS AND ARE PROHIBITED. • Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance according to operating instructions could cause fi re or injury. -
Page 5: Dimensions
• Ensure clearances to combustibles are maintained when building a mantel or shelves above the appliance. Elevated temperatures on the wall or in the air above the appliance can cause melting, discolouration or damage to decorations, a T.V. or other electronic components. •... -
Page 6: General Instructions
GENERAL INSTRUCTIONS WARNING ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT, WITH THE GLASS DOOR OPENED OR REMOVED. PROVIDE ADEQUATE CLEARANCE FOR SERVICING AND OPERATING THE APPLIANCE. PROVIDE ADEQUATE VENTILATION. NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE. OBJECTS PLACED IN FRONT OF THE APPLIANCE MUST BE KEPT A MINIMUM OF 48 INCHES (121.9cm) FROM THE FRONT FACE OF THE APPLIANCE. -
Page 7: General Information
13" (32mb) w.c. 13" (32mb) w.c. Pressure Manifold Pressure (Under Flow 3.5" (9mb) w.c. 10" (25mb) w.c. Conditions) CB30 MODEL DESIGNATIONS FUEL TYPE OPERATING SYSTEM CB30NTR NATURAL MILLIVOLT CB30NTRE NATURAL ELECTRONIC IGNITION CB30PTR PROPANE MILLIVOLT CB30PTRE PROPANE ELECTRONIC IGNITION This appliance is approved for bathroom, bedroom and bed-sitting room installations and is suitable for mobile home installation. -
Page 8: Venting
W565-0154. FOLLOW THE INSTALLATION INSTRUCTIONS LOCATED IN THE INSTALLATION MANUAL. POUR UNE UTILISER AVEC BARRIÈRE W565-0154. SUIVEZ LES INSTRUCTIONS 9700539 (WSL) 4001657 (NGZ) D'INSTALLATION SE TROUVENT DANS LE MANUEL D'INSTALLATION 4001658 (NAC) 4001659 (WUSA) SAMPLE B30NTR CB30NTR MODEL CB30PTR B30PTR B30NTRE CB30NTRE CB30PTRE B30PTRE 0-4500FT (0-1370m) ALTITUDE / ELEVATION... -
Page 9: Venting Lengths And Components
VENTING WARNING RISK OF FIRE, MAINTAIN SPECIFIED AIR SPACE CLEARANCES TO VENT PIPE AND APPLIANCE. IF VENTING IS INCLUDED WITH SPACERS THE VENT SYSTEM MUST BE SUPPORTED EVERY 3FT (0.9m) FOR BOTH VERTICAL AND HORIZONTAL RUNS. USE SUPPORTS OR EQUIVALENT NON-COMBUSTIBLE STRAPPING TO MAINTAIN THE REQUIRED CLEARANCE FROM COMBUSTIBLES. - Page 10 For Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent and Metal-Fab follow the installation procedure found on the website for your venting supplier. For vent systems that provide seals on the inner exhaust fl ue, only the outer air intake joints must be sealed using a red high temperature silicone (RTV).
-
Page 11: Typical Vent Installation
TYPICAL VENT INSTALLATION W415-1398 / C / 06.15.17... - Page 12 * See "VENTING" section W415-1398 / C / 06.15.17...
-
Page 13: Special Vent Installations
SPECIAL VENT INSTALLATIONS 3.3.1 PERISCOPE TERMINATION Use the periscope kit to locate the air termination above grade. The periscope must be installed so that when fi nal grading is completed, the bottom air slot is located a minimum 12” (30.5cm) above grade. maximum allowable vent length is 10’... -
Page 14: Minimum Air Terminal Location Clearances
FLEXIBLE VENTING RIGID VENTING MINIMUM AIR TERMINAL LOCATION CLEARANCES terminal shall not be located less than 6 feet under a window that opens on a horizontal plane in a structure with three walls and a roof. **** This is a recommended distance. For additional requirements check local codes. †... -
Page 15: Venting Application Flow Chart
†† Permitted only if the veranda, porch, or deck is fully open on a minimum of two sides beneath the fl oor. †* Recommended to prevent recirculation of exhaust products. For additional requirements check local codes. ††* Permitted only if the balcony is fully open on a minimum of one side. NOTE: Clearances are in accordance with local installation codes and the requirements of the gas supplier. -
Page 16: Definitions
3.5 times the vertical 3 times the vertica rise equal to rise equal to or or greater than the greater than the horizontal run horizontal run 13.2A DEFINITIONS For the following symbols used in the venting calculations and examples are: >... -
Page 17: Top Exit Horizontal Termination
TOP EXIT HORIZONTAL TERMINATION For vent confi gurations requiring more than one 90° elbow, the following formulas apply: Formula 1: H < V Formula 2: H < 40 feet (12.2m) Example: = 3 FT (0.9m) = 8 FT (2.4m) = 3 FT (0.9m ) + 8 FT (2.4m) = 11 FT (3.4m) = 2.5 FT (0.8m) = 2 FT (0.6m) = 2.5 FT (0.8m) + 2 FT (0.6m) = 4.5 FT (1.4m) - Page 18 Formula 1: < V 9.9 FT (3m) < 11 FT (3.4m) Formula 2: < 40 FT (12.2m) 20.9 FT (6.4m) < 40 FT (12.2m) Since both formulas are met, this vent confi guration is acceptable. W415-1398 / C / 06.15.17...
- Page 19 (H ) > (V ) Simple venting configuration See graph to determine the required vertical rise V for the required horizontal run H (only one 90° elbow) 150 (381) W415-1398 / C / 06.15.17...
- Page 20 Formula 1: < 4.2 V 4.2 V =4.2FT (1.3m) x 6FT (1.8m) = 25.2FT (7.7m) Formula 2: < 24.75 FT (7.5m) 16.7 FT (5.1m) < 24.75 FT (7.5m) Since both formulas are met, this vent configuration is acceptable. Example: = 4 FT (1.2m) = 1.5 FT (0.5m) = 4 FT (1.2m) + 1.5 FT (0.5m) = 5.5 FT (1.7m) = 2 FT (0.6m)
-
Page 21: Rear Exit Horizontal Termination
= 1 FT (0.3m) = 1 FT (0.3m) = 1.5 FT (0.5m) = 2FT (0.6m) + 1FT (0.3m) + 1FT (0.3m) + 1.5FT (0.5m) = 5.5 FT (1.7m) = .03 (four 90° elbows - 90°) = .03 (360° - 90°) = 8.1 FT (2.5m) = 5.5 FT (1.7m) + 8.1 FT (2.5m) = 13.6 FT (4.2m) = 13.6 FT (4.2m) + 5.5 FT (1.7m) = 19.1 FT (5.8m) Formula 1:... - Page 22 < 40 feet (12.2m) Example: = 9 FT (2.7m) = 6 FT (1.8m) = 9FT (2.7m) + 6FT (1.8m) = 15FT (4.6m) = 3 FT (0.9m) = 2 FT (0.6m) = 1.5 FT (0.5m) Formula 1: < V Formula 2: (H ) >...
-
Page 23: Top And Rear Exit Vertical Termination
= .03 (90 + 90 + 90 + 90 + 45 - 90) = 9.45 FT (2.9m) = 5.5FT (1.7m) + 9.45FT (2.9m) = 14.95FT (4.6m) H = 14.95FT (4.6m) + 5.5FT (1.7m) = 20.45FT (6.2m) Formula 1: < 3.5V 3.5V = 3.5FT (1.1m) x 5.5FT (1.7m) = 19.25FT (5.9m) 14.95 FT (4.6m) <... - Page 24 Formula 1: < 3.5V Formula 2: > gurations requiring more than two 90° elbows (top exit) or one 90° elbow (rear exit), the following formulas apply: W415-1398 / C / 06.15.17...
- Page 25 Example: = 2 FT (0.6m) = 1 FT (0.3m) = 1.5 FT (0.5m) = 6 FT (1.8m) = 2 FT (0.6m) = 6FT (1.8m) + 2FT (0.6m) = 8 FT (2.4m) Formula 1: < 3.5 V Since this formula is not met, this vent configuration is unacceptable. Formula 2: = 1 FT (0.3m) = 1 FT (0.3m)
- Page 26 26 FT (7.9m) < 40 FT (12.2m) 3.11 WARNING REAR EXIT FAILURE TO CREATE A SEAL TO THE FIREBOX WITH THE EXHAUST COLLAR ASSEMBLY WILL CAUSE THE APPLIANCE TO FUNCTION IMPROPERLY AND CAN CAUSE INJURY OR PROPERTY DAMAGE. emove the safety screen and glass front, refer to " SAFETY SCREEN / DOOR REMOVAL AND INSTALLATION"...
-
Page 27: Rear Exit Shield (For Rear Vent Only
3.12 REAR EXIT SHIELD (FOR REAR VENT ONLY) Remove the safety barrier assembly and door from the appliance, refer to the “SAFETY SCREEN & DOOR REMOVAL / INSTALLATION” section of the manual for detailed instructions. Loosen the two screws, that secure the exhaust plate, and slide the shield in place by sliding its slotted openings behind the screwheads, tighten the two previously loosened screws. - Page 28 Remove the contents from the firebox and set aside, you will need the exhaust collar from the top of the log carton. To ease assembly, remove the four hex head screws securing the deflector from inside the top front of the firebox.
-
Page 29: Wall And Ceiling Protection
Reattach the top deflector, log set, glass door and safety screen. EXHAUST FLUE COLLAR 4.0 INSTALLATION WARNING ENSURE TO UNPACK ALL LOOSE MATERIALS FROM INSIDE THE FIREBOX PRIOR TO HOOKING UP THE GAS AND ELECTRICAL SUPPLY. IF YOUR APPLIANCE IS SUPPLIED WITH A REMOTE, ENSURE THE REMOTE RECEIVER IS IN THE “OFF”... -
Page 30: Horizontal Installation
DO NOT FILL THE SPACE BETWEEN THE VENT PIPE AND ENCLOSURE WITH ANY TYPE OF MATERIAL. DO NOT PACK INSULATION OR COMBUSTIBLES BETWEEN CEILING FIRESTOPS. ALWAYS MAINTAIN SPECIFIED CLEARANCES AROUND VENTING AND FIRESTOP SYSTEMS. INSTALL WALL SHIELDS AND FIRESTOPS AS SPECIFIED. FAILURE TO KEEP INSULATION OR OTHER MATERIALS AWAY FROM VENT PIPE MAY CAUSE FIRE. - Page 31 A. Apply a bead of caulking (not supplied) around the corner edge of the inside surface of the fi restop assembly, fi t the fi restop assembly to the hole and secure using the 4 screws (supplied in your manual baggie).
-
Page 32: Using Flexible Vent Components
WARNING DO NOT ALLOW THE INNER FLEX PIPE TO BUNCH UP ON HORIZONTAL OR VERTICAL RUNS AND ELBOWS. KEEP IT PULLED TIGHT. SPACERS ARE ATTACHED TO THE INNER FLEX PIPE AT PREDETERMINED INTERVALS TO MAINTAIN AN EVEN AIR GAP TO THE OUTER FLEX PIPE. THIS GAP IS REQUIRED FOR SAFE OPERATION. -
Page 33: Vertical Air Terminal Installation
over the inner sleeve of the air terminal and secure with a minimum of 3 screws. Using the outer fl ex pipe, slide over the outer combustion air sleeve of the air terminal and secure with a minimum of 3 screws. -
Page 34: Appliance Vent Connection
NOTE : Fastening hardware provided with appropriate roof terminal and liner kits. Fasten the roof support to the roof using 6 screws. The roof support is optional. In this case the venting is to be adequately supported using either an alternate method suitable to the authority having jurisdiction or the optional roof support. - Page 35 HIGH TEMP SEALANT 28.1D USING RIGID VENT COMPONENTS The vent system must be supported approximately every 3 feet (0.9m) for both vertical and horizontal runs. Use Wolf Steel Ltd. support ring assembly or equivalent noncombustible strapping to maintain the minimum clearance to combustibles for both vertical and horizontal runs.
- Page 36 Move the appliance into position. INNER PIPE Fasten the roof support to the roof using the screws provided. The roof support is optional. In this case the venting is to be adequately supported using either an alternate method suitable to the authority having jurisdiction or the optional roof support.
- Page 37 4.3.3 RESTRICTING VERTICAL VENTS WARNING TURN OFF GAS AND ELECTRICAL SUPPLY BEFORE SERVICING THE APPLIANCE. APPLIANCE MAY BE HOT, DO NOT SERVICE UNTIL APPLIANCE IS COOL. FOR SAFE AND PROPER OPERATION OF THE APPLIANCE, FOLLOW THE VENTING INSTRUCTION EXACTLY TO AVOID DANGER OF SUFFOCATION KEEP THE PACKAGING BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE IN CRIBS, BED, CARRIAGES OR PLAY PENS.
-
Page 38: Vertical Through Existing Chimney
VERTICAL THROUGH EXISTING CHIMNEY WARNING RISK OF FIRE! CO-AXIAL TO CO-LINEAR VENTING CONFIGURATIONS MUST ONLY BE USED IN A NON- COMBUSTIBLE CHIMNEY OR ENCLOSURE. INSTALLATION IN A COMBUSTIBLE ENCLOSURE COULD RESULT IN A FIRE. This appliance is designed to be attached to a 3” (76.2mm) co-linear aluminum fl ex vent system running the MOBILE HOME INSTALLATION This appliance must be installed in accordance with the manufacturer’s instructions and the Manufactured W415-1398 / C / 06.15.17... - Page 39 Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the United States or the Mobile Home Standard, CAN/CSA Z240 MH Series, in Canada. This appliance is only for use with the type(s) of gas indicated on the rating plate. This Mobile/Manufactured Home Listed appliance comes factory equipped with a means to secure the appliance.
- Page 40 GAS INSTALLATION WARNING RISK OF FIRE, EXPLOSION OR ASPHYXIATION. ENSURE THERE ARE NO IGNITION SOURCES SUCH AS SPARKS OR OPEN FLAMES. SUPPORT GAS CONTROL WHEN ATTACHING GAS SUPPLY PIPE TO PREVENT DAMAGING GAS LINE. ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT WITH THE GLASS DOOR OPENED OR REMOVED.
-
Page 41: Framing
5.0 FRAMING WARNING RISK OF FIRE! IN ORDER TO AVOID THE POSSIBILITY OF EXPOSED INSULATION OR VAPOUR BARRIER COMING IN CONTACT WITH THE APPLIANCE BODY, IT IS RECOMMENDED THAT THE WALLS OF THE APPLIANCE ENCLOSURE BE “FINISHED” (IE: DRYWALL / SHEETROCK), AS YOU WOULD FINISH ANY OTHER OUTSIDE WALL OF A HOME. -
Page 42: Minimum Framing Dimensions
MINIMUM FRAMING DIMENSIONS W415-1398 / C / 06.15.17... -
Page 43: Minimum Enclosure Clearances
Minimum clearance to combustible construction from appliance and vent surfaces: Combustible Framing: 0" to stand-offs 1" (25mm) to bottom and sides of the vent pipe* 3" (76mm) to top of the vent pipe* Combustible Finishing: 0" to rear 0" to front face top and sides Top Exit 50 1/2"... - Page 44 TOP VENT TOP EXIT ENCLOSURE The appliance requires a minimum non-combustible enclosure height of 50 1/2" (1283mm). For temperature requirements, the enclosure space around and above the appliance must be left unobstructed. NOTE: The vent shield is telescopic and must be adjusted to shield the full depth of combustible wall penetration.
- Page 45 REAR VENT For rear vent termination not exceeding 10" (254mm) of horizontal vent run. REAR EXIT ENCLOSURE The appliance requires a minimum enclosure height of 41 5/8" (1057mm). For temperature requirements, the enclosure space around and above the appliance must be left unobstructed. NOTE: The vent shield is telescopic and must be adjusted to shield the full depth of combustible wall penetration.
- Page 46 MAXIMUM REAR VENT CLEARANCES (EXAMPLE 1) W415-1398 / C / 06.15.17...
- Page 47 REAR EXIT ENCLOSURE The appliance requires a minimum enclosure height of 41 5/8" (1057mm). For temperature requirements, the enclosure space around and above the appliance must be left unobstructed. NOTE: The vent shield is telescopic and must be adjusted to shield the full depth of combustible wall penetration.
- Page 48 MAXIMUM REAR VENT CLEARANCES (EXAMPLE 2) REAR EXIT ENCLOSURE The appliance requires a minimum enclosure height of 41 5/8" (1057mm). For temperature requirements, the enclosure space around and above the appliance must be left unobstructed. NOTE: The vent shield is telescopic and must be adjusted to shield the full depth of combustible wall penetration.
-
Page 49: Non-Combustible Facing Material
NON-COMBUSTIBLE FACING MATERIAL WARNING: Non-combustible facing material must not project more than 4” (102mm) from the face of the door (all three sides). If greater projections are desired, increase the clearance to the sides and top by 2” (51mm) for every additional 1” (25mm) of projection. If using an optional surround, the W415-1398 / C / 06.15.17... -
Page 50: Recessed Installation
same rule applies, starting from the top of the surround. Ensure clearances are maintained for surround removal, as it must lift off the appliance for maintenance. NOTE: Recesses or alcoves above the appliance can be made as deep as desired provided the minimum clearances to combustibles are maintained. - Page 51 MINIMUM CLEARANCES CHART 6" (152mm) MAX 41 5/8" (1057mm) (REAR VENT) 50 1/2" (1283mm) (TOP VENT) *See "MINIMUM ENCLOSURE CLEARANCES" section Before placing anything above a heat source, it is advisable to follow proper clearances and manufacturer’s instructions. Installing a mantel between a heat source will reduce the affect of direct heat on electronics or other materials placed above a mantel.
-
Page 52: Finishing
6.0 FINISHING WARNING RISK OF FIRE! NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE. IF FINISHING THE FRONT OF THE APPLIANCE, IT MUST BE FINISHED WITH ANY NONCOMBUSTIBLE MATERIAL SUCH AS BRICK, MARBLE, GRANITE, ETC. DO NOT STRIKE, SLAM OR SCRATCH GLASS. DO NOT OPERATE APPLIANCE WITH GLASS REMOVED, CRACKED, BROKEN OR SCRATCHED. -
Page 53: Safety Screen / Door Removal And Installation
SAFETY SCREEN / DOOR REMOVAL AND INSTALLATION WARNING GLASS MAY BE HOT, DO NOT TOUCH GLASS UNTIL COOLED. IF EQUIPPED WITH DOOR LATCHES THAT ARE PART OF A SAFETY RELIEF SYSTEM, THEY MUST BE PROPERLY ENGAGED. DO NOT OPERATE THE APPLIANCE WITH LATCHES DISENGAGED. FACING AND/OR FINISHING MATERIALS MUST NOT INTERFERE WITH AIR FLOW THROUGH AIR OPENINGS, LOUVRE OPENINGS, OPERATION OF LOUVRES OR DOORS OR ACCESS FOR SERVICE. -
Page 54: Front Hood Installation
Spring Latches the appliance. Ensure they open freely and close sealed. Reverse these steps to reinstall the safety screen and door. Ensure safety screen is installed correctly. FRONT HOOD INSTALLATION NOTE: This hood MUST be installed, if it has not already been factory installed. Safety door and screen must be removed. - Page 55 SIDE VIEW stall usly urin W415-1398 / C / 06.15.17...
-
Page 56: Log Placement
LOG PLACEMENT WARNING FAILURE TO POSITION THE LOGS IN ACCORDANCE WITH THESE DIAGRAMS OR FAILURE TO USE ONLY LOGS SPECIFICALLY APPROVED WITH THIS APPLIANCE MAY RESULT IN PROPERTY DAMAGE OR PERSONAL INJURY. LOGS MUST BE PLACED IN THEIR EXACT LOCATION IN THE APPLIANCE. DO NOT MODIFY THE PROPER LOG POSITIONS, SINCE APPLIANCE MAY NOT FUNCTION PROPERLY AND DELAYED IGNITION MAY OCCUR. -
Page 57: Battery Back-Up Installation
support. Place one pin into the hole located allow it to rest in the notch of the left log. on the top of the right log. Reinstall the door and safety screen, refer to your installation manual for installation instructions. Place the right crossover log (W135-0579) onto the two remaining pins. -
Page 58: Wiring Diagram
NOTE: Once the power has been restored, you must disconnect the battery back-up or remove the batteries from the holder. The system will drain the batteries if they are left in the battery holder. 7.0 WIRING DIAGRAM WARNING DO NOT WIRE 110 VOLTS TO THE VALVE OR WALL SWITCH This appliance comes equipped with a battery back-up. -
Page 59: Operation (Electronic
NOTE: The battery holder was supplied with your appliance but not connected. In an event of a power failure, install two 'D' batteries in the holder and attach to wire harness as illustrated above. 8.0 OPERATION (ELECTRONIC) WARNING IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. -
Page 60: Operation (Millivolt
few hours. This is caused by dust particles in the heat exchanger burning off. In both cases, open a window to suffi ciently ventilate the room. FOR YOUR SAFETY READ BEFORE LIGHTING: • Do not turn on if children or other at risk individuals are near the appliance. •... - Page 61 ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT WITH THE GLASS DOOR OPENED OR REMOVED. Ensure that a continuous gas flow is at the burner before installing the door. When lit for the first time, the appliance will emit an odor for a few hours.
-
Page 62: Adjustment
10.0 ADJUSTMENT 10.1 PILOT BURNER ADJUSTMENT Adjust the pilot screw to provide properly sized fl ame. Turn in a clockwise direction to reduce the gas fl ow. Check Pressure Readings: Inlet pressure can be checked by turning screw (A) counterclockwise 2 or 3 turns and then placing pressure gauge 3/8”... -
Page 63: Optional Anti Condensation Switch (Models Cb30Ntre And Cb30Ptre Only
Regardless of venturi orientation, closing the air shutter will cause a more yellow flame, but can lead to carbonization. Opening the air shutter will cause a more blue flame, but can cause flame lifting from the burner ports. AIR The flame may not appear yellow immediately;... -
Page 64: Maintenance
11.0 MAINTENANCE This appliance and its venting system should be inspected before use and at least annually by a qualifi ed service person. The following suggested checks should be performed by a qualifi ed technician. The appliance area must be kept clear and free of combustible materials, gasoline or other fl ammable vapors and liquids. The fl ow of combustion and ventilation air must not be obstructed. -
Page 65: Care Of Glas
• Using a vacuum with a soft brush attachment, gently remove any dirt, debris or carbon build up from the logs, fi rebox and burner. For glass media, follow the installation instructions for pre-cleaning. • Also gently remove any build-up on the pilot assembly including, if equipped; thermopile, thermocouple, fl ame sensor and igniter. - Page 66 12.0 REPLACEMENTS WARNING FAILURE TO POSITION THE PARTS IN ACCORDANCE WITH THIS MANUAL OR FAILURE TO USE ONLY PARTS SPECIFICALLY APPROVED WITH THIS APPLIANCE MAY RESULT IN PROPERTY DAMAGE OR PERSONAL INJURY. ** THIS IS A FAST ACTING THERMOCOUPLE. IT IS AN INTEGRAL SAFETY COMPONENT. REPLACE ONLY WITH A FAST ACTING THERMOCOUPLE SUPPLIED BY WOLF STEEL LTD.
- Page 67 W415-1398 / C / 06.15.17...
- Page 68 W415-1398 / C / 06.15.17...
- Page 69 W415-1398 / C / 06.15.17...
- Page 70 W415-1398 / C / 06.15.17...
- Page 71 W415-1398 / C / 06.15.17...
- Page 72 W415-1398 / C / 06.15.17...
- Page 73 W415-1398 / C / 06.15.17...
- Page 74 14.0 TROUBLESHOOTING (ELECTRONIC) WARNING ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT, WITH THE GLASS DOOR OPEN OR REMOVED. TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THE APPLIANCE. APPLIANCE MAY BE HOT, DO NOT SERVICE UNTIL APPLIANCE HAS COOLED. DO NOT USE ABRASIVE CLEANERS.
- Page 75 Turn the ON/OFF switch to the “OFF” position. Remove the Module. igniter wire from the module. Place the ON/OFF switch to the “ON” position. Hold a grounded wire about 3/16” (4.8mm) away from the ignitor (spark) terminal on the module. If no spark the ignitor terminal module must be replaced.
- Page 76 engulfi ng the sensor rod. This will rectifi cation. Verify correct pilot orifi nlet gas specifi cations to manual. ame carries the rectifi cation current, ame lifts from pilot hood, the circuit is ifi ce or to high of an inlet pressure fl ame to lift.) The sensor rod may harness is fi rmly connected to the ceramic insulator around the...
- Page 77 ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT, WITH THE GLASS DOOR OPEN OR REMOVED. TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THE APPLIANCE. APPLIANCE MAY BE HOT, DO NOT SERVICE UNTIL APPLIANCE HAS COOLED. DO NOT USE ABRASIVE CLEANERS.
- Page 78 Flames are very aggressive. Door is ajar. Ensure the mechanical means of securing the door is aulty providing a tight seal. ther Venting action is too - great. - Check to ensure venting is properly sealed. most If restriction is required see “RESTRICTING VERTICAL at or VENT”...
- Page 79 *MAXIMUM INLET PRESSURE NOT TO EXCEED 13” Check if pilot can be lit by a match. Check that the wire is connected to the push button igniter. Check if the push button igniter needs tightening. Replace the wire if the wire insulation is broken or frayed. Replace the electrode if the ceramic insulator is cracked or broken.
- Page 80 air shutter opening is free of lint or other obstructions. at the logs are correctly positioned. Open er to increase the primary air. e input rate: check the manifold pressure and orifi ce pecifi ed by the rating plate values. at the door gasketing is not broken or missing and seal is tight.
-
Page 81: Accessories
16.0 WARRANTY CONTINENTAL® products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certifi cate. CONTINENTAL® products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fi red at a quality test station. -
Page 82: Warranty
Shipping costs are not covered under this warranty. Additional service fees may apply if you are seeking warranty service from a dealer. Labour, travel, diagnostic tests, shipping and other related charges are not covered by this warranty. ALL SPECIFICATIONS AND DESIGNS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE DUT TO ON-GOING PRODUCT IMPROVEMENTS.
