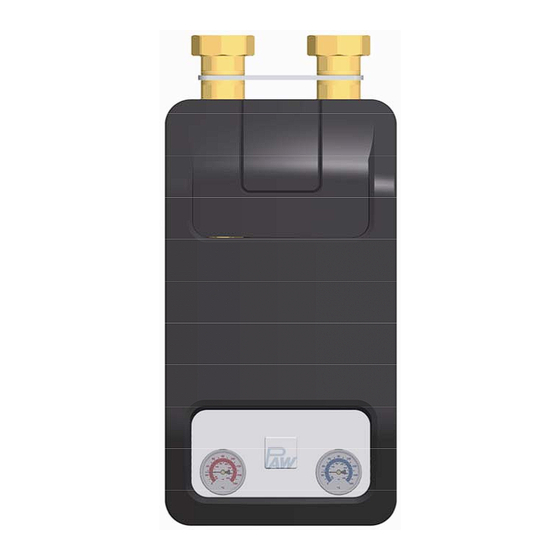

PAW K36E Installation And Operation Instructions Manual
Zone module 1 1/4" (dn 32)
Hide thumbs
Also See for K36E:
- Installation and operation instructions manual (20 pages) ,
- Installation and operation instruction manual (24 pages)
Related Manuals for PAW K36E
Summary of Contents for PAW K36E
- Page 1 PAW NA Limited Partnership 45 Davis Street, Webster, Ma 01520, USA phone: +1-508-943-4240, fax: +1-508-943-4141 email: support@paw.eu, web: www.paw.eu Installation and Operation Instructions Zone Module K36E - 1¼" (DN 32)
-
Page 2: Table Of Contents
Item no. 99473903xNA – Version V02 – Issued 2011/11 PAW NA Limited Partnership We reserve the right to make technical changes without notice! 45 Davis Street Printed in Germany – Copyright by PAW NA Limited Partnership Webster, Ma 01570, USA 99473903xNA – V02 2011/11... -
Page 3: For Your Safety
Only use PAW accessories for the zone module. of the corresponding manufacturer. The wrapping materials are made of recyclable materials that can be recycled by standard recycling operations. -
Page 4: Qualification Of The Installer
1 For your safety Qualification of the installer Installation and commissioning of this equipment should The following must also be observed during installation be done by qualified installers [Specialist] in accordance and commissioning: with local, state and federal codes which may be Relevant regional and national regulations (for •... -
Page 5: General Safety Instructions
1 For your safety General safety instructions Before installing and putting the product into operation, you must read and observe the following safety instructions: Risk of burns! The valves, fittings and the pump may heat up to more than 212 °F (100 °C) during operation. -
Page 6: Product Description

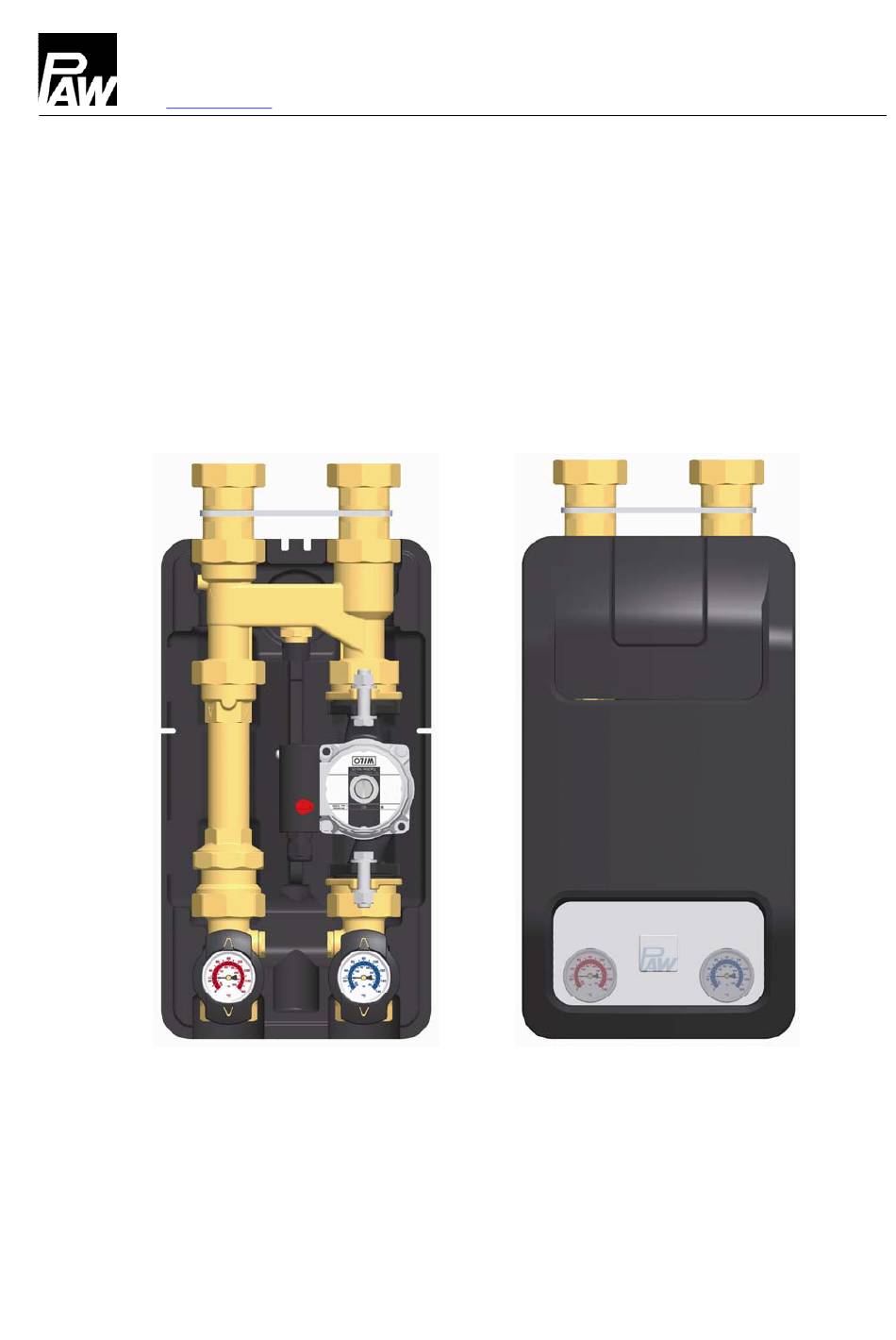

2 Product description Product description Supply (to the consumer circuit) Return (from the consumer circuit) Coupling for overhead installation Thermo controller (see detailed description below) Swivel flanges 3-speed heating pump Ball valve in the return with integrated temperature gauge handle (blue) Return (to the boiler circuit) Supply (from the boiler circuit) Ball valve in the supply with integrated... -
Page 7: Function [Specialist]
It is available in three versions for opening temperatures of 122 °F (50 °C), 131 °F (55 °C) and 140 °F (60 °C) respectively. K36E can be directly mounted to the wall or to a PAW distribution manifold. - Page 8 2 Product description Installation under a distribution manifold The zone module can be mounted under a distribution manifold. In this • system the pump exerts a pressure on the entire installation. When the overflow valve in the thermo controller is open, the pressure can be reduced via the valve.
-
Page 9: Thermal Control Valve [Specialist]
2 Product description Thermal control valve [Specialist] The thermal control valve (A-3) serves as a bypass in the start-up phase. When the temperature of the water in the boiler circuit is lower than the opening pressure of the thermal control valve, the valve is closed and thus the line to the consumers. -
Page 10: Overflow Valve [Specialist]
2 Product description Overflow valve [Specialist] In systems with a distribution manifold the pump of the boiler charging set exerts a pressure on the entire installation. When the overflow valve in the thermo controller is open, the pressure can be reduced via the valve. Undesired circulation, which could lead to overcharging of the domestic water tank, can thus be prevented. -
Page 11: Check Valve [Specialist]
2 Product description Check valve [Specialist] The K36E zone module is equipped with a check valve that is integrated in the supply of the mixing valve (A-5). The check valve is spring-operated. The opening pressure is 7.9 inch head. Operation During operation the mark must point to "Z". -
Page 12: Mounting And Installation [Specialist]
3 Mounting and installation [Specialist] Mounting and installation [Specialist] Risk of electric shock! Prior to commencing electrical work, pull the mains plug! Only after completing all installation work, should the mains plug be plugged into a socket! This avoids an unintentional start of the motors. Damage to property! The zone module may only be installed indoors with a power supply of 120 V / 60 Hz. -
Page 13: Installation Directly To The Wall On A Wall Bracket [Specialist]
Continue with "3.3 Piping and start-up [Specialist]". 3.2 Installation under a distribution manifold [Specialist] Mount the distribution manifold on the PAW wall brackets as described in the separate instructions. Mount the zone module directly to the connections of the manifold. -
Page 14: Cleaning
4 Cleaning Cleaning Risk of burns! The valves, fittings and the pump may heat up to more than 212 °F (100 °C) during operation. The shell must remain closed when cleaning. Clean the zone module from the outside with a damp cloth only. Never use scouring or sand-containing cleaning agents. Maintenance and decommissioning [Specialist] Before maintaining and decommissioning the product, you must read and observe the following safety instructions: Risk of electric shock! -
Page 15: Spare Parts
6 Spare parts Spare parts Item # Description B37035E for zone modules 4739035, opening temperature 122 °F (50 °C) B37036E for zone modules 4739036, opening temperature 131 °F (55 °C) B37037E for zone modules 4739035, opening temperature 140 °F (60 °C) 2011/11 99473903xNA –... -
Page 16: Technical Data And Pressure Drop Characteristics
7 Technical data and pressure drop characteristics Technical data and pressure drop characteristics K33 - 1" Dimensions Width insulation (1) ~9.8" (250 mm) Center distance (2) ~4.9" (125 mm) Height insulation (3) ~18.2" (462 mm) Mounting length (4) ~15" (382 mm) Connections Upper connections (A-1, A-2) 2"... -
Page 17: Pressure Drop Characteristic
7 Technical data and pressure drop characteristics Pressure drop characteristic Flow rate [US gpm] Flow rate [l/h] 2011/11 99473903xNA – V02... - Page 18 PAW NA Limited Partnership www.paw.eu 45 Davis Street Phone: +1-508-943-4240 Webster, Ma 01570, USA Fax: +1-508-943-4141...
