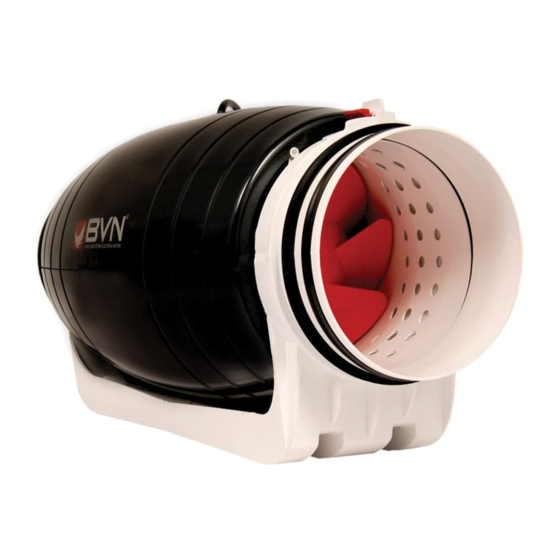

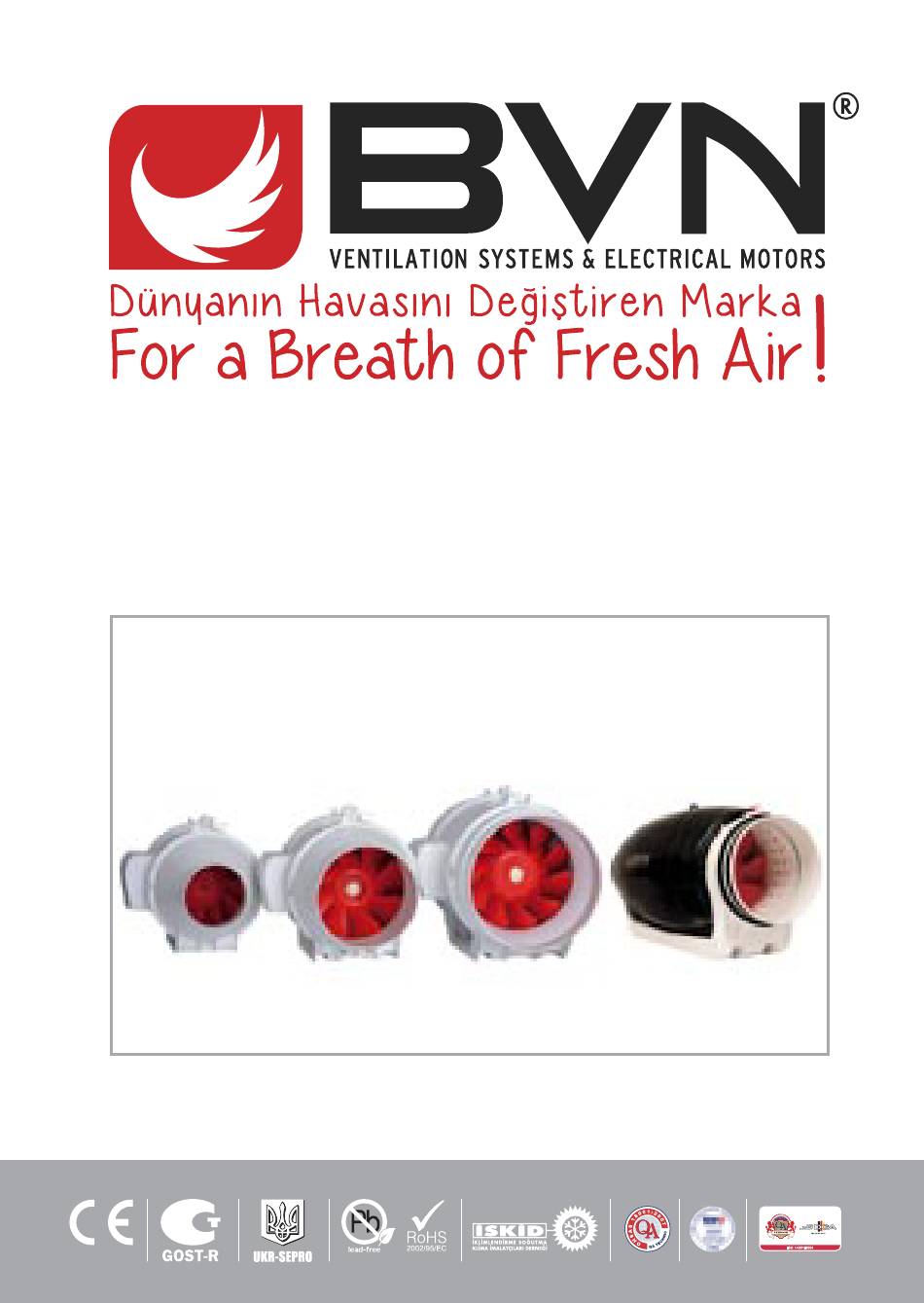

- Page 1 BMFX ST 100 ST 125 250 P SL 100 315 P SL 150 SL 200 MIXED FLOW 2 SPEED IN LINE DUCT FAN Products with BVN brand are manufactured in production facilities with ISO 9001: 2015 Quality Management System certificate.
- Page 2 MANUFACTURER’S / IMPORTER’S NAME BAHÇIVAN ELEKTRİK MOTOR SAN. TİC. LTD.ŞTİ. Hadımköy Ömerli Mahallesi İstanbul Cad. No:147 ADDRESS Arnavutköy/İSTANBUL PHONE / FAX 0212 771 48 48 / 0212 771 48 42 COMPANY REPRESENTATIVE’S SIGNATURE/SEAL PRODUCT’S TYPE BRAND MODEL BMFX LABEL AND SERIAL NO DELIVERY DATE&PLACE MAX.REPAIR PERIOD 20 WORK-DAY...
-
Page 3: Safety Warnings
& USER’S MANUAL CERTIFICATE OF WARRANTY SAFETY WARNINGS • These fans contain rotating parts and electrical connections. Therefore, pay attention to safety warnings during their assembly, maintenance and operation. • Electrical connections and assembly must be made by authorized persons. •... -
Page 4: Technical Features
TECHNICAL FEATURES IP 44 CL B TYPE BMFX-100 BMFX-125 BMFX-150 BMFX-200 232,5 BMFX-250 BMFX-315 BMFX-250-P BMFX-315-P TYPE ØB ØD ØH BMFX-ST100 BMFX-ST125 BMFX-SL150 BMFX-SL200... - Page 5 & USER’S MANUAL CERTIFICATE OF WARRANTY TYPE D/dak /h dB(A) İz. Kl. 0,11 2200 BMFX 100/2V 50/60 0,10 1850 0,14 2250 BMFX 125/2V 50/60 0,12 1950 0,22 2550 BMFX 150/2V 50/60 0,19 1950 0,52 2350 BMFX 200/2V 50/60 0,48 2050 2500 1100 BMFX 250/2V...
- Page 6 ASSEMBL 1- Wall mounting holesand the distance to the wall in accordance with feet piercedand insert the dowel. 2- Combine the product with the mounting legs. 3- Leg items available wall mounting. 4- As shown in connect the product to the ducts with the clamps. 5- Be sure to connect the power cord to the correc twiring diagram.
- Page 7 & USER’S MANUAL CERTIFICATE OF WARRANTY CONNECTION / SINGLE-PHASE CONNECTION Brown / Kahve N : Neutral/Nötr LC : Low Speed/Düşük Hız LB : Middle Speed/Orta Hız LA : High Speed/Yüksek Hız Blue / Mavi Brown / Kahve Black / Siyah ~ Power White / Beyaz Blue / Mavi...
- Page 8 • The products should only be assembled by authorized persons. • Since products have sharp edges, wearing gloves is recommended. • If entrance and exit of the products are going to stay open, they should be covered with a culvert to prevent foreign materials from entering. •...
- Page 9 USER’S MANUAL CERTIFICATE OF WARRANTY USAGE BMFX series inline duct fans are the ideal fansforairductingsystemswherehigh air flow rateandhighpressure is required. They can be mounted in air ducts directly in every required position. They can be used in industrial orcon structional applications, factories, for industrial ventilation purpuse.
- Page 10 DEFECTS AND HOW TO FIX THEM ABNORMAL POSSIBLE CAUSE HOW TO FIX SITUATION TOO MUCH SOUND ROTOR IMBALANCE CHANGE THE ROTOR (NOISE) MOTOR IS DAMAGED CHANGE THE MOTOR THE DEVICE IS CONDENSATOR CHANGE THE NOT WORKING IS NOT WORKING CONDENSATOR FAULTY SPEED CHECK THE INSTALLATION ADJUSTMENT CONNECTION...
- Page 11 & USER’S MANUAL CERTIFICATE OF WARRANTY • The products should be carried one by one carefully. They shall not be thrown or carried carelessly from hand to hand. Aftertaking the product out of its package; • The delivered product should be checked. •...
-
Page 12: Warranty And Service
Warranty Dee 2. Use your product according to the user’s manual. The warranty provided by BVN does not cover the damages arising out of using the product under conditions other than its normal conditions of use. The following conditions are also not included in the warranty: 1. -
Page 13: Warranty Terms And Conditions
& USER’S MANUAL CERTIFICATE OF WARRANTY WARRANTY TERMS AND CONDITIONS 1-) The warranty period is 2(TWO) YEARS from the date of delivery . 2-) The product including all its components is under the warranty of our company. 3-) In case of defects within the warranty period ,the period spent in repairing is added to the warranty period.The repairing period is maximum 20 days. - Page 14 www.bvnair.com T. +90 212 771 48 48 F. +90 212 771 48 42 sales@bvnair.com / export@bvnair.com...
