ADVANCED HIGH POWER MODEL ROCKET
ASSEMBLY AND OPERATION INSTRUCTIONS
BEFORE YOU BEGIN:
Study the illustrations and sequence of assembly. The
sequence of assembly is important. Review the parts list and
become familiar with all parts before assembly. If any parts
are missing or damaged, contact RCS @ (435) 865-7100 or
through our web site @ www.aerotech-rocketry.com.
DO NOT MODIFY THE DESIGN OF THE ROCKET.
Changes to the design of the rocket such as, but not limited to,
reducing the fin size, shortening the body tube, or modifying
the motor tube assembly can adversely affect the flight stabil-
ity of the rocket and may void this products warranty.
Only use AEROTECH™ Composite Model Rocket Motors
in this High Power rocket. See box label for recommended
motors.
Read and follow the Model Rocket Safety Code of the National Association of Rocketry
(NAR) and comply with all federal, state, and local laws in all activities with model rockets.
Description
Cap, Piston
Sleeve, Piston
Motor tube (12"/30.5cm)
Motor Hook
FIN-LOK™ rings-4 fin
Centering rings (3.896" O.D.)
Fins
Bulkhead Disc (2.540")
Spacer, HP Motor (Black tube)
Spacer, Hobby Motor (Yellow tube) (14014)
12" Ruler (with 1/16" resolution)
Medium viscosity cyanoacrylate (cyano') cement AND
5 to 15 minute cure epoxy
Hobby knife
Part #
(14006)
(14007)
(12912)
(19001-Y)
(19344)
(14029)
(11715)
(16609)
(14015)
ADDITIONAL MATERIALS AND TOOLS REQUIRED
COMPLETED

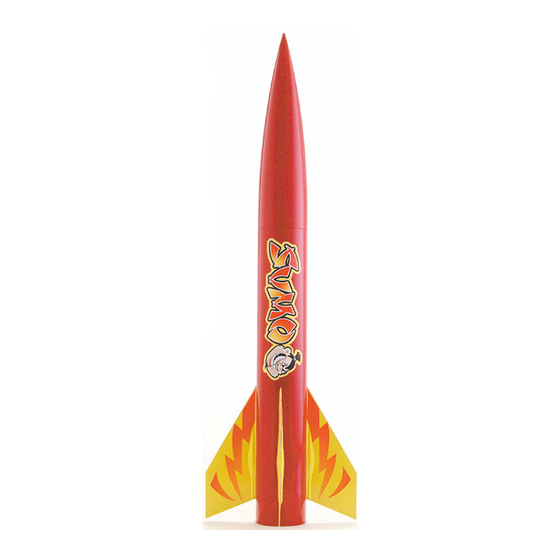

MODEL ROCKET
Read And Follow
All Instructions
Designed by Ed LaCroix,
Jason Blatzheim,
and Bobby Rosenfield
PARTS LIST
Qty
Description
1
Ejection gas baffle
1
Screw eye
1
Shock cord (18')
1
Body tube (4" x 23")
Launch lugs
2
3
Nose cone (9 oz.)
4
Parachute (42" diameter)
Buckle, Cord Retaining
1
1
Decal Sheet
1
Instructions, Sumo
1/8" Wood dowel at least 12" long
#240 / #400 Grit sandpaper
Masking Tape (3/4" AND 1" wide)
1
SUMO™
LEVEL 1
Part #
(19030)
(19015)
(17201)
(14040)
(19035)
(11405)
(13042)
(17150)
(18023)
(19924)
19924 SUMO KIT REV: 8/04
Qty
1
1
1
1
2
1
1
2
1
1
