Summary of Contents for 1stCampro RANGER Mini

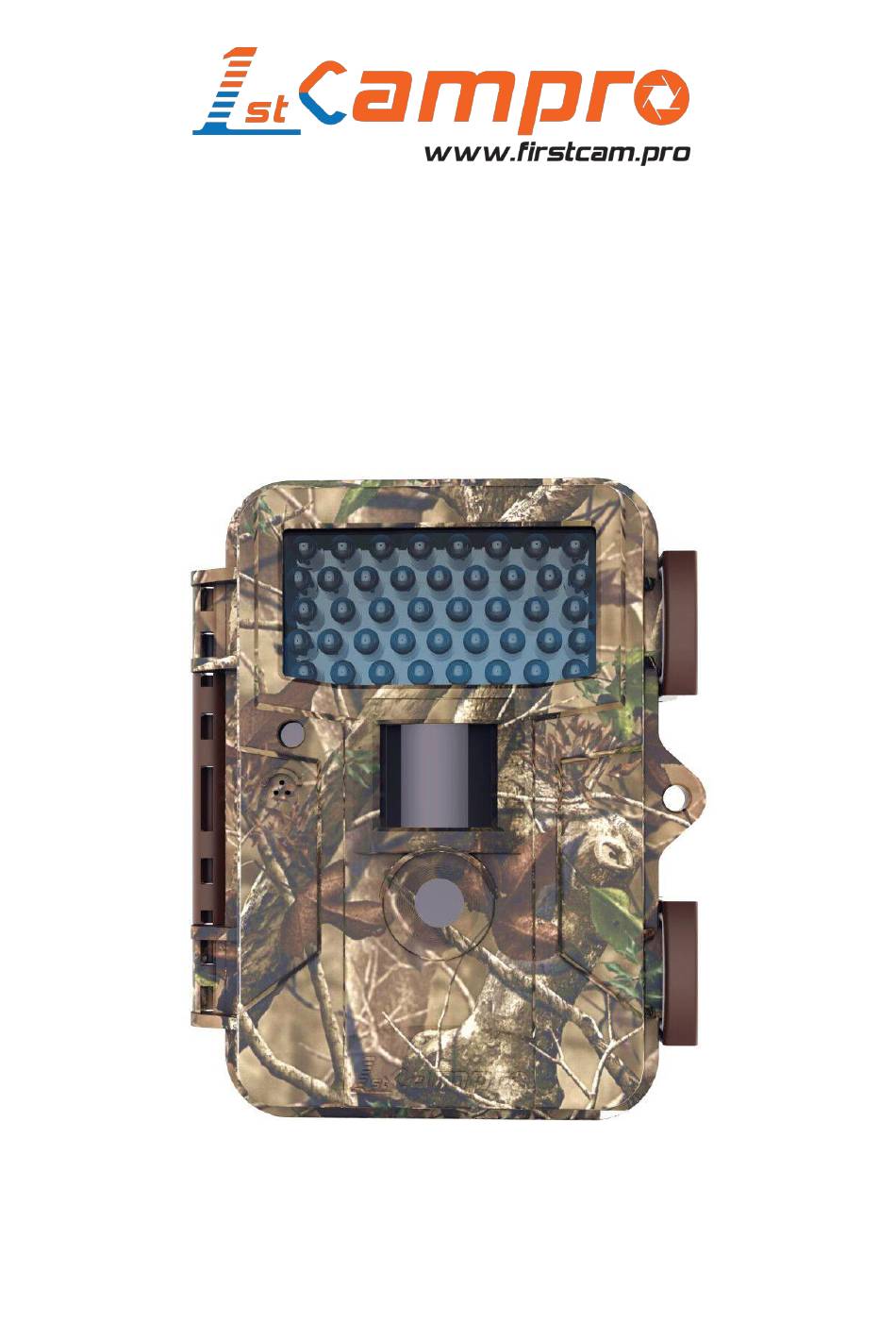

- Page 1 Trail Camera RANGER Mini Instruction Manual...
-
Page 2: Table Of Contents
Content 1: Camera Overview ..........1 2: Quick Start Guide ..........2 2.1: Installing the Batteries ........2 2.2: Installing the SD Card ........2 2.4: Power Switch and Buttons ....... 3 2.5: Settings Map ..........4 3: Auxiliary Power ............. 9 4: Mounting Tips ............ -
Page 3: 1: Camera Overview
www.FirstCam.pro 1: Camera Overview (Fig. 1 Operation Interface) (Fig. 2 Bottom View) Page 1... -
Page 4: 2: Quick Start Guide
www.FirstCam.pro 2: Quick Start Guide 2.1: Installing the Batteries We suggest that you use high quality, 8pcs, AA 1.5V alkaline batteries to maximize camera performance and battery life. Pay attention to the (+) or (-) molded into each sleeve to determine how to properly arrange the batteries. -
Page 5: Power Switch And Buttons
www.FirstCam.pro 2.4: Power Switch and Buttons Slide the power switch to SETUP position, then you can start to customize your camera settings. (Fig. 3 Power switch) Power Switch: OFF: Power off（Please remove batteries when not in use） SETUP: Customize camera settings ON: Working mode (the display screen will power off). -
Page 6: Settings Map
www.FirstCam.pro 2.5: Settings Map Fig. 4 Main Screen) Quick Select: This camera allows the user to save several frequently used settings. Conveniently select one of the saved settings for faster camera setup. Detection Test: Allows the user to test the detection system of the camera. - Page 7 www.FirstCam.pro Page 5...
- Page 8 www.FirstCam.pro Page 6...
- Page 9 www.FirstCam.pro Page 7...
- Page 10 www.FirstCam.pro Page 8...
-
Page 11: 3: Auxiliary Power
www.FirstCam.pro 3: Auxiliary Power Your camera comes with an Auxiliary power jack. If you want to hook up an external 6V battery to power the camera, you can. A standard 4mm jack is required to make the connection. You can find external 6V power accessories at www.firstcam.pro 4: Mounting Tips For best results, mount the camera approximately 48”... - Page 12 www.FirstCam.pro (Fig. 5) 2. Reflect with trees or other objects to add more light to your target. (Fig. 6) 3. Avoid placing the camera where it is exposed to constant wind or there is too much vegetation. False triggers mostly occur on sunny, breezy days. When the wind moves the vegetation, the camera detects this and cannot distinguish it from a warm-blooded animal moving through the scene.
-
Page 13: Appendix Ⅰ: Technical Specifications
www.FirstCam.pro Appendix Ⅰ: Technical Specifications Picture Resolution 12MP, 8MP, 5MP(CMOS) F/NO=3.0 FOV Lens (Field of View)=52° Flash Distance 45ft Display Screen 1.5” LCD Memory Card Up to 32GB Video Resolution 720P, VGA PIR Sensor Multi Zone PIR Sensitivity Adjustable (High/Normal/Low) Trigger Time 0.3s Operation Temp. -
Page 14: Appendix Ⅱ: Parts List
Appendix Ⅱ: Parts List Part Name Quantity Digital Camera Belt User Manual Quick Start WARRANTY FirstCam Outdoor Inc. provides 12 months of warranty service for this product against manufacturing defects or malfunctions. If your camera fails to function under normal use within 1 year, we will repair or replace the camera at no charge.
