1stCampro 200-002 Instruction Manual

Wireless infrared trail camera enigma lte
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Wireless Infrared Trail Camera
Enigma LTE
Instruction Manual
Model #200-002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 200-002 and is the answer not in the manual?

Questions and answers

Related Manuals for 1stCampro 200-002

Summary of Contents for 1stCampro 200-002

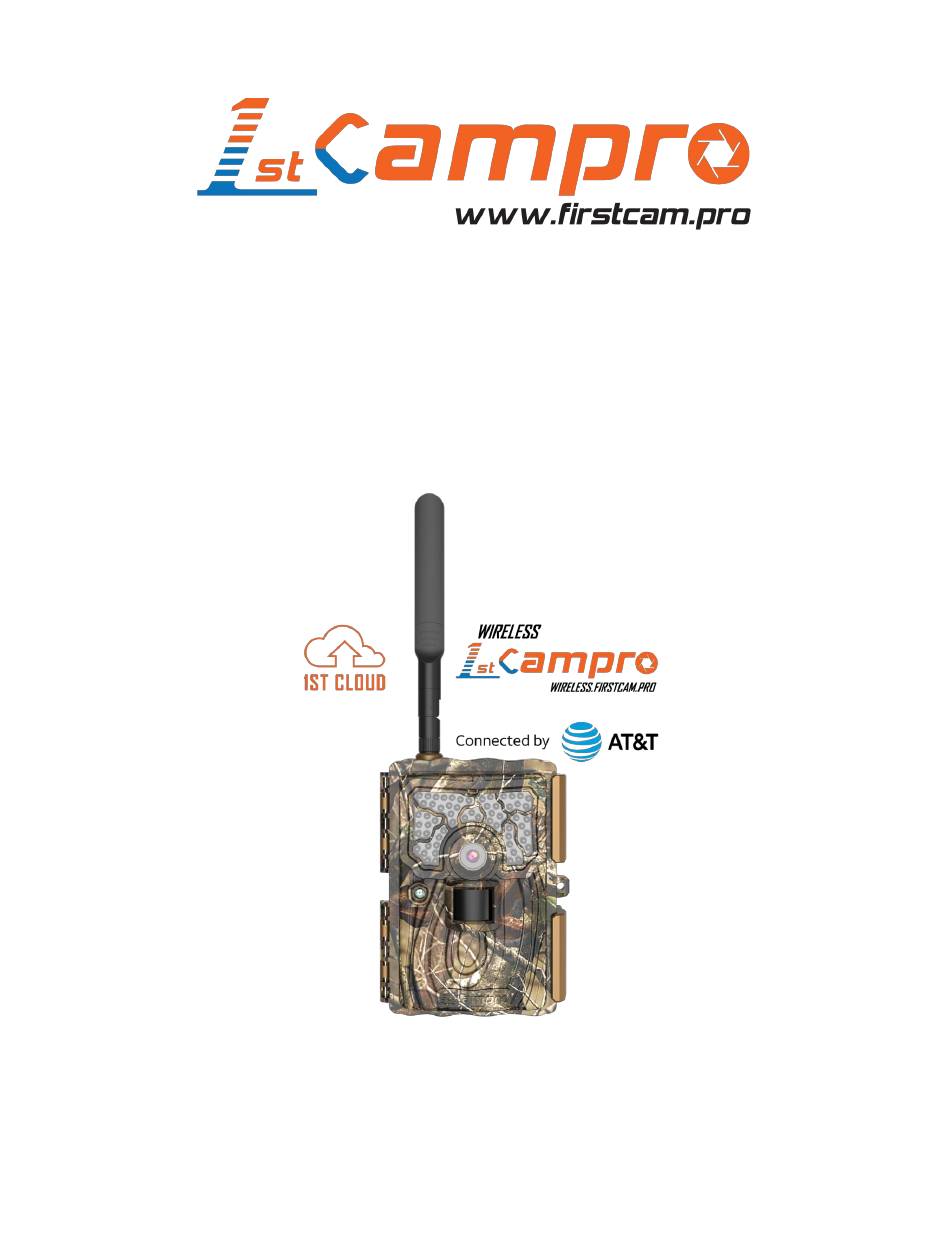

  • Page 1 Wireless Infrared Trail Camera Enigma LTE Instruction Manual Model #200-002...

  • Page 2: Table Of Contents

    CONTENT 1 Camera Overview..............1 2 Quick Start Guide.............. 2 2.1 Installing the Batteries.......... 2 2.2 Installing the SD Card..........2 2.3 Inserting the SIM Card...........3 2.4 Downloading the Mobile App....... 3 2.5 Power Switch and Buttons........3 2.6 Settings Map............5 3.
  • Page 3 What you will need to set up this camera: -Internet Access to 1stCamPro Data Plans and 1stCloud Web Portal -12 AA Batteries -SD Card -SIM Card...

  • Page 4: Camera Overview

    1 Camera Overview 1: Black Vision IR flash 2: Lens 3: Light Sensor 4: Power Switch 5: PIR sensor 6: Keyboard 7: HD TFT Screen 8: LTE Main Antenna (Fig 1 Operation Interface) Page 1...

  • Page 5: Quick Start Guide

    2 Quick Start Guide This camera can operate on 12AA batteries. 2.1 Installing the Batteries Pay attention to the (+) or (-) molded into each sleeve to determine if you insert the positive or negative battery end into the sleeve first. Negative battery terminals always contact the spring.

  • Page 6: Inserting The Sim Card

    2.3 Inserting the SIM Card Insert the included AT&T SIM Card in the slot located at the upper right side of the camera Search“firstcam”in your Google Play Store or Apple 2.4 Downloading the Mobile App Store Slide the power switch to SETUP position, to begin 2.5 Power Switch and Buttons changing the camera settings as desired.
  • Page 7 use); SETUP: Set up the camera settings; ON: Working mode (the screen will power off). MENU: Enter menu Buttons: ▲▼◄►: Navigation buttons. OK: Confirm operation /Playback photos or video clips. ►: To manually take photo or video. (Click again to stop the video.).

  • Page 8: Settings Map

    2.6 Settings Map Fig3 Main Screen) Page 5...
  • Page 9 Settings: Off: Disable the transmission function. Module Switch: On: Enable the instant transmission. Sending File Limit: The number of photos that the Page 6...
  • Page 10 camera will transmit to the portal per day. If you would like to control your data flow, set a desired maximum number. Remote Control: You can remotely control your camera via the mobile phone app or web-portal. Choose Real Time, if you would like the wireless module to continuously work throughout the day.
  • Page 11 Photo Burst：The number of images taken per trigger event. If photo burst is set to 3, it means the camera will take 3 images per one trigger. You also can choose which one of the images will be transmitted via Send Option.
  • Page 12 Shutter Speed ： Normal is suitable for most application scenarios. Fast can be used to reduce motion blur. PIR Interval：Allows you to customize how often the camera will take a photo when the camera is triggered by motion. This prevents the card from filling up with Page 9...
  • Page 13 unwanted redundant images. Time Lapse：When selecting Time Lapse, the camera takes photos or videos even when it is not triggered by motion or heat. Time Lapse is useful for constant monitoring of an area. To utilize Time Lapse and PIR trigger , select BOTH in the PIR -Trigger Mode settings Work Time ：...
  • Page 14 Set Clock：Supports MM/DD/YYYY, DD/MM/YYYY and YYYY/MM/DD format. Password：If you set a password, make sure you write it down or save it to your mobile phone so you can access your camera. Overwrite: The overwrite function will save new photos over the old photos on your SD card if it becomes full.

  • Page 15: Connecting Your Camera

    3. Connecting Your Camera In order to ‘send’ your photos to your cloud account or 3.1 Connecting Camera to Network & Cloud Server mobile phone, you will first need to purchase a data plan by signing up at After completing signup, purchasing an AT&T data https://wireless.firstcam.pro.
  • Page 16 Fig 4) Page 13...
  • Page 17 Once registered or logged in, you can Add New Devices using this same website. An option to add a line or new subscription plan will be available. You will be required to enter the IMEI and Sim ID’s for your new Cameras.
  • Page 18 Next, you are ready to sign in to the free cloud account using your web browser. Go to: https://www.cloudfirstcam.com Login using the same username and password created when you signed up for a subscription plan and registered your device on https://wireless.firstcam.pro (Fig 6) Page 15...

  • Page 19: Sending A Test Photo To The Cloud Server

    3.2 Sending a Test Photo to the Cloud Server 1) Switch camera to Setup mode, press ► button to take a picture, then press OK button to view the picture; 2) Press the MENU button, choose send. You will see sending progress shown on the LCD screen.
  • Page 20 Once you see “send successful”, check your 1stCloud account or phone App to see if you received the correct photo. If the above test was successful, you can now slide the power switch to ‘on’ and start using your camera. If the sending fails, choose SYS->Diagnose to generate a Log file and the FAQ will help you with your Log file.

  • Page 21: Changing Settings With Web Portal Or App

    The Camera can be set up conveniently using the cloud 3.3 Changing Settings with Web Portal or APP server or Mobile APP . The APP process is similar to the cloud server. Fig 10 （ ） Page 18...

  • Page 22: Auxiliary Power

    （ ） Fig 11 Your camera comes with an Auxiliary power jack. If 4. Auxiliary Power you want to connect an external 6V battery to power Page 19...

  • Page 23: Mounting Tips

    the camera, you can (recommended). The jack required to make the connection is a standard 4mm jack. 6V External Batteries and cables are available at www.firstcam.pro. For best results, mount the camera approximately 4 5. Mounting tips feet off the ground and aim 10-30 feet from your target.
  • Page 24 (Fig 16) c. Avoid placing the camera where the air flow is surging or has too much vegetation. False triggers mostly occur on sunny, breezy days. When the wind moves the vegetation, the camera detects this and cannot distinguish it from a warm-blooded animal moving through the scene.

  • Page 25: Appendixⅰ: Technical Specifications

    AppendixⅠ: Technical Specifications Picture Resolution: 3/5/8/12/16/20MP Lens: F/NO=2.2 FOV (Field of View)=58° Frequency Bands For AT&T: FDD-LTE：B2/B4/B12; WCDMA: B2/B4/B5 GSM: Not supported Flash Range: High, Low Display Screen: 2.0” LCD Memory Card: Up to 32GB Video Resolution: 1080P, 720P, WVGA PIR Sensor: Multi Zone PIR Sensitivity: Adjustable(High/Normal/Low) Trigger Time: 0.6s...
  • Page 26 Power Supply: 12AA (Recommended); 6V/2A external power Stand-by Current: < 0.3 (<7mAh/Day) Power Consumption: 12AA batteries can transmit 3000+ VGA Photos Temperature Reminder: Supported with cloud platform Low Battery Alert: LED Indicator,Cloud Platform Mounting: Belt/Bungee/CableLock/Threaded Dimensions: 6”X 4.5”X 2.75” Weight: 16 oz(with out batteries Operation Temp.: -20 - +60°C Operation Humidity: 5% - 90%...

  • Page 27: Appendix Ⅱ: Parts List

    Appendix Ⅱ: Parts List Wireless Camera PART NAME QUANTITY External Antenna Mounting Strap SIM Card User Manual Quick Start Guide Page 24...

  • Page 28: Warranty

    FirstCam Outdoor Inc. provides 24 months of warranty WARRANTY service for this product against manufacturing defects or malfunctions. If your camera fails to function under normal use within 2 years, we will repair or replace the camera at no charge. The purchase receipt must be included from an authorized retailer to validate the warranty.
