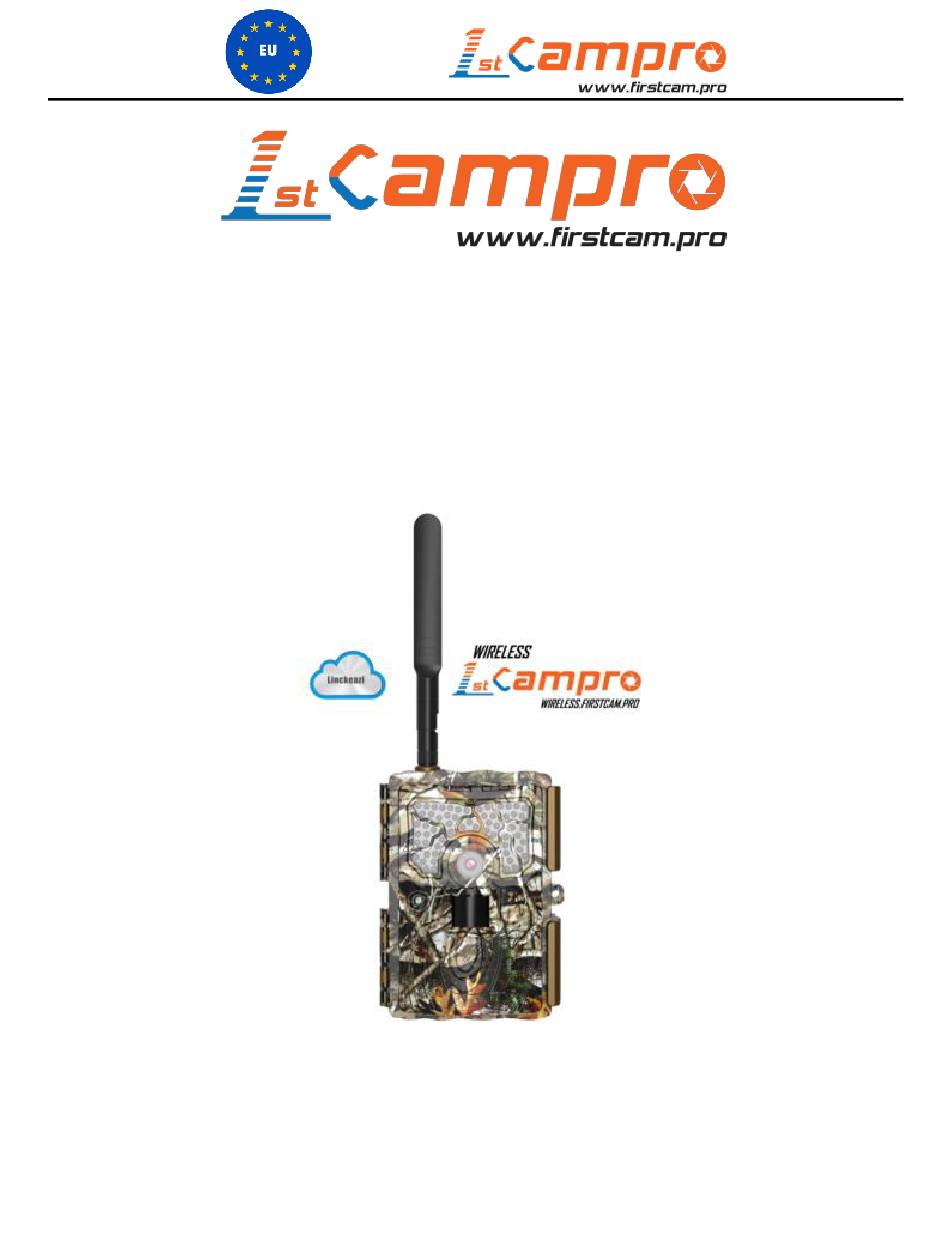

- Page 1 Condor Europe LTE 20MP Wireless Trail Camera Instruction Manual Supported by LinckEazi Cloud Technology Model #200-003...
-
Page 2: Table Of Contents
CONTENT 1 Camera Overview .............. 1 2 Quick Start Guide .............. 2 2.1 Installing the Batteries ..........2 2.2 Installing the SD Card ..........2 2.3 Inserting the SIM Card ........... 3 2.4 Downloading the Mobile App ........ 3 2.5 Power Switch and Buttons........4 2.6 Settings Map ............ - Page 3 What you will need to set up this camera: -Internet Access to https://www.linckeazi.com -12 AA Batteries -SD Card -SIM Card...
-
Page 4: Camera Overview
1 Camera Overview 1: Invisible Black Flash 2: Lens 3: Light Sensor 4: Power Switch 5: PIR Sensor 6: Keyboard 7: HD LCD Screen 8: LTE Antenna (Fig 1 Operation Interface) Page 1... -
Page 5: Quick Start Guide
2 Quick Start Guide 2.1 Installing the Batteries This camera can operate on 12AA batteries. Pay attention to the (+) or (-) molded into each sleeve to determine if you insert the positive or negative battery end into the sleeve first. Negative battery terminals always contact the spring. -
Page 6: Inserting The Sim Card
2.3 Inserting the SIM Card This product support B1/B3/B5/B7/B8/B20@FDD LTE B38/B40/B41@TDD LTE B1/B5/B8@WCDMA B3/B8@GSM. Be sure the PIN code of the SIM card is disabled, and there is enough money on the SIM card. 2.4 Downloading the Mobile App Search“linckeazi”in your Google Play Store or Apple Store Accessing the Web Portal: Open your web browser to:... -
Page 7: Power Switch And Buttons
Android APP IOS APP 2.5 Power Switch and Buttons Slide the power switch to SETUP position, to begin changing the camera settings as desired. (Fig2 Power switch) Power Switch: OFF: Power off (Please remove batteries when not in use); SETUP: Set up the camera settings; ON: Working mode (the screen will power off). - Page 8 Buttons: MENU: Enter menu ▲▼◄►: Navigation buttons. OK: Confirm operation /Playback photos or video clips. ►: To manually take photo or video. (Click again to stop the video.). Page 5...
-
Page 9: Settings Map
2.6 Settings Map Fig3 Main Screen) Page 6... - Page 10 Settings: Module Switch On/Off Sending File Limit Unlimited/1~99 files/Day Remote Control Real Time/Delay 0.5H/1H/2H/3H/4H/6H/12H/24H （Default：Delay 12H） Upload Settings Download Settings On/Off FW Update Module Switch: Off: Disable the transmission function. On: Enable the instant transmission. Sending File Limit: The number of photos that the camera will transmit to the portal per day.
- Page 11 camera via the mobile phone app or web-portal. Choose Real Time, if you would like the wireless module to continuously work throughout the day. The Real Time setting significantly increases power consumption. Delay 24H means the wireless module will wake up at least one time in a 24 hour period to make remote settings changes (if completed) and transmit data.
- Page 12 Photo Burst：The number of images taken per trigger event. If photo burst is set to 3, it means the camera will take 3 images per one trigger. You can also choose which one of the images will be transmitted via Send Option.
- Page 13 takes photos or videos even when it is not triggered by motion or heat. Time Lapse is useful for constant monitoring of an area. To utilize Time Lapse and PIR trigger, select BOTH in the PIR -Trigger Mode settings. Work Time：This camera offers 4 operational Work Time settings modes.
- Page 14 Set Clock Enter to set date and time Language Ten languages Password Off/On Overwrite Off/On Diagnose Format SD Card Format SD Card Default Restore all customer settings to default values About Brand/Software Version/Camera Name Set Clock：Supports MM/DD/YYYY, DD/MM/YYYY and YYYY/MM/DD format. Password：If you set a password, make sure you write it down or save it to your mobile phone so you can access your camera.
-
Page 15: Connecting Cam To Cloud Server
3. Connecting CAM to cloud server 3.1 Connecting CAM to cloud server Open your browser and access the address: https://www.linckeazi.com/index.html Click ‘Sign up’ on the page to pop up the registration page. The registered users of the platform need to fill in the user name, email address, email verification code, setup password, verification password (re-enter the setup password), and then agree to the terms and... - Page 16 Fig 4 Fig 5 Click ‘Add Device’, a form will pop out requesting basic information for your CAM. Page 13...
- Page 17 Fig 6 Fig 7 Name your CAM, and add location description if necessary, the SN and IMEI can be found labeled inside CAM: SN labeled at the side of SIM slit IMEI labeled at the front panel Page 14...
-
Page 18: Sending A Photo To The Cloud Server
3.2 Sending a Photo to the Cloud Server 1) Switch camera to Setup mode, press ► button to take a picture, then press OK button to view the picture; 2) Press the MENU button, choose send. You will see sending progress shown on the LCD screen. Fig 8) (Fig 9) Once you see “Send Success”, check your linckeazi... -
Page 19: Cam Settings With Web Portal Or App
power switch to ‘on’ and start using your camera. If the sending fails, choose SYS->Diagnose to generate a Log file and the FAQ will help you with your Log file. (Fig 10) 3.3 CAM Settings with Web Portal or APP The CAM can be set up conveniently with the cloud server and APP as well. - Page 20 （Fig 11） For the mobile APP, Please search “Linckeazi” In Google play or APP Store (or scan the QR code) and install the APK file to your smart phone. Android APP IOS APP Page 17...
-
Page 21: Auxiliary Power
The adding and settings process is quite similar to the cloud server. （Fig 12） 4. Auxiliary Power Your camera comes with an Auxiliary power jack. If you want to connect an external 6V battery to power the camera, you may do so. The jack necessary to make the connection is a standard 4mm jack. -
Page 22: Mounting Tips
5. Mounting tips For best results, mount the camera approximately 4 feet off the ground and aim 10-30 feet from your target. To enhance the flash, we recommend positioning the camera in an area with a backdrop to reflect the maximum amount of light. Note: a. - Page 23 (Fig 14) c. Avoid placing the camera where the air flow is surging or has too much vegetation. False triggers mostly occur on sunny, breezy days. When the wind moves the vegetation, the camera detects this and cannot distinguish it from a warm-blooded animal moving through the scene.
-
Page 24: Appendixⅰ: Technical Specifications
AppendixⅠ: Technical Specifications Picture Resolution: 3/5/8/12/16/20MP Lens: F/NO=2.2 FOV (Field of View)=58° (FOV10m=7.72meter) FDD-LTE： Frequency Bands: B1/B3/B5/B7/B8/B20;TDD-LTE:B38/B40/B41 ;WCDMA: B1/B5/B8; GSM: 900/1800 Flash Range: High, Low Display Screen: 2.0” LCD Memory Card: Up to 32GB Video Resolution: 1080P, 720P, WVGA PIR Sensor: Multi Zone PIR Sensitivity: Adjustable (High/Normal/Low) Trigger Time: 0.6s Trigger Interval: 5s –... - Page 25 Video Length: 5–60s Power Supply: 12AA (Recommended); 6V/2A external power Stand-by Current: < 0.3 (<7mAh/Day) Power Consumption: 12AA batteries can transmit 3000+ VGA Photos Temperature Reminder: Supported with cloud platform Low Battery Alert: LED Indicator,Cloud Platform Mounting: Belt/Bungee/Cable Lock/Threaded Dimensions: 6”X 4.5”X 2.75” Weight: 474g(with out batteries Operation Temp.: -20 - +60°C...
-
Page 26: Appendix Ⅱ: Parts List
Appendix Ⅱ: Parts List PART NAME QUANTITY Wireless Camera External Antenna Mounting Strap User Manual Quick Start Guide Page 23... - Page 27 Declaration of Conformity to Directive 2014/53/EU CE Caution： Hereby, the manufacturer declares that this camera is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Please ask for your distributor for a copy of the Declaration of Conformity to Directive 2014/53/EU.
-
Page 28: Warranty
WARRANTY FirstCam Outdoor Inc. provides 12 months of warranty service for this product against manufacturing defects or malfunctions. If your camera fails to function under normal use within 1 years, we will repair or replace the camera at no charge. The purchase receipt must be included from an authorized retailer to validate the warranty.
